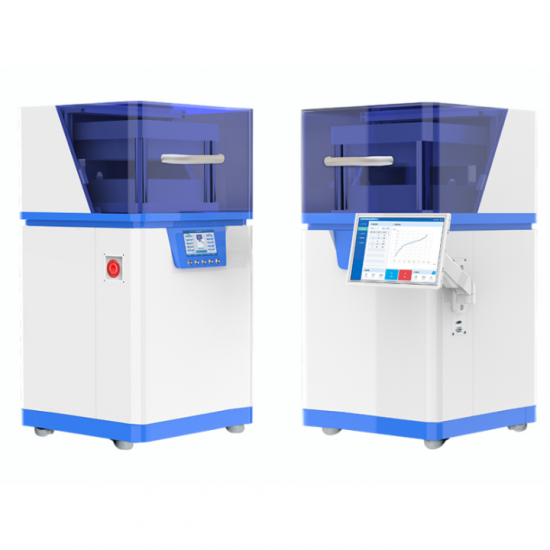

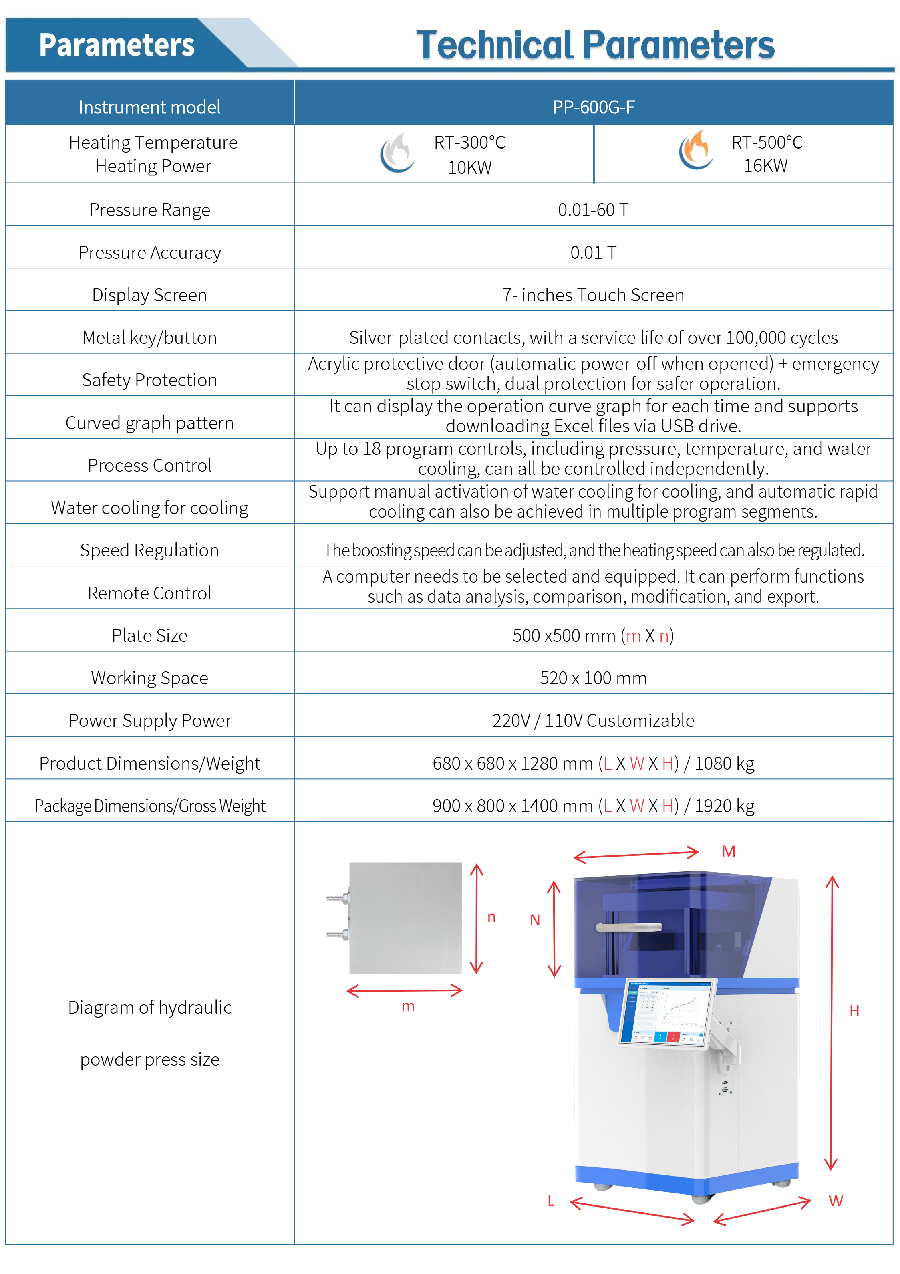

Instrument model

PP-600G-F

Heating Temperature

Heating Power

Pressure Range

0.01-60 T

Pressure Accuracy

0.01 T

Display Screen

7- inches Touch Screen

Metal key/button

Silver-plated contacts, with a service life of over 100,000 cycles

Safety Protection

Acrylic protective door (automatic power-off when opened) + emergency stop switch, dual protection for safer operation.

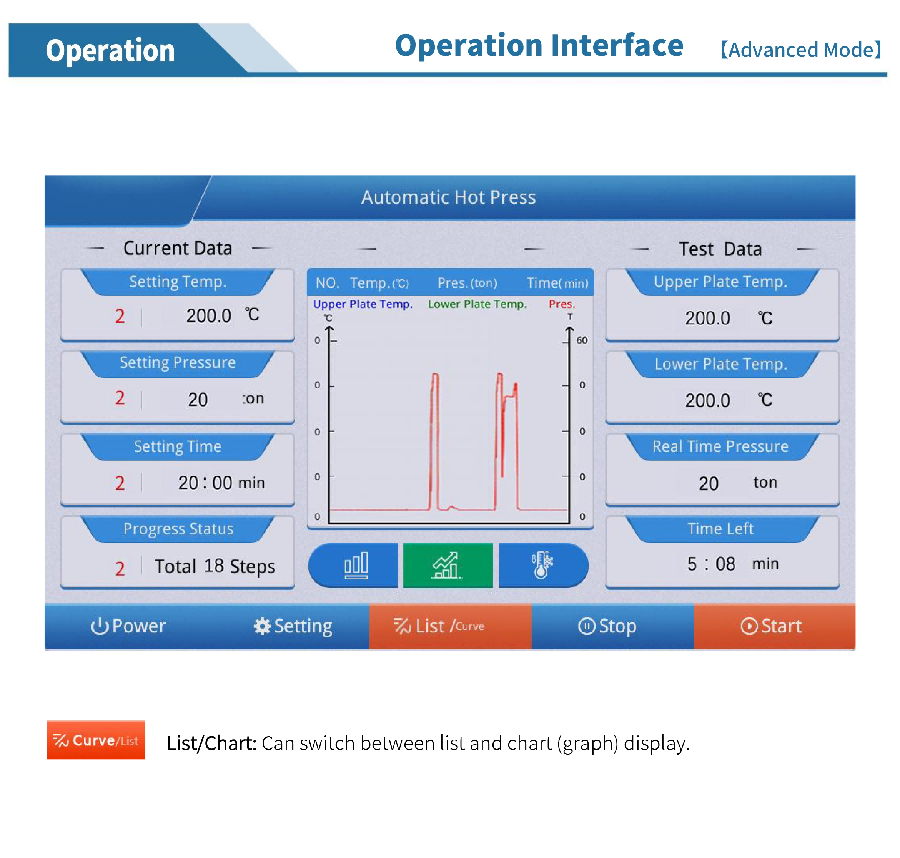

Curved graph pattern

It can display the operation curve graph for each time and supports downloading Excel files via USB drive.

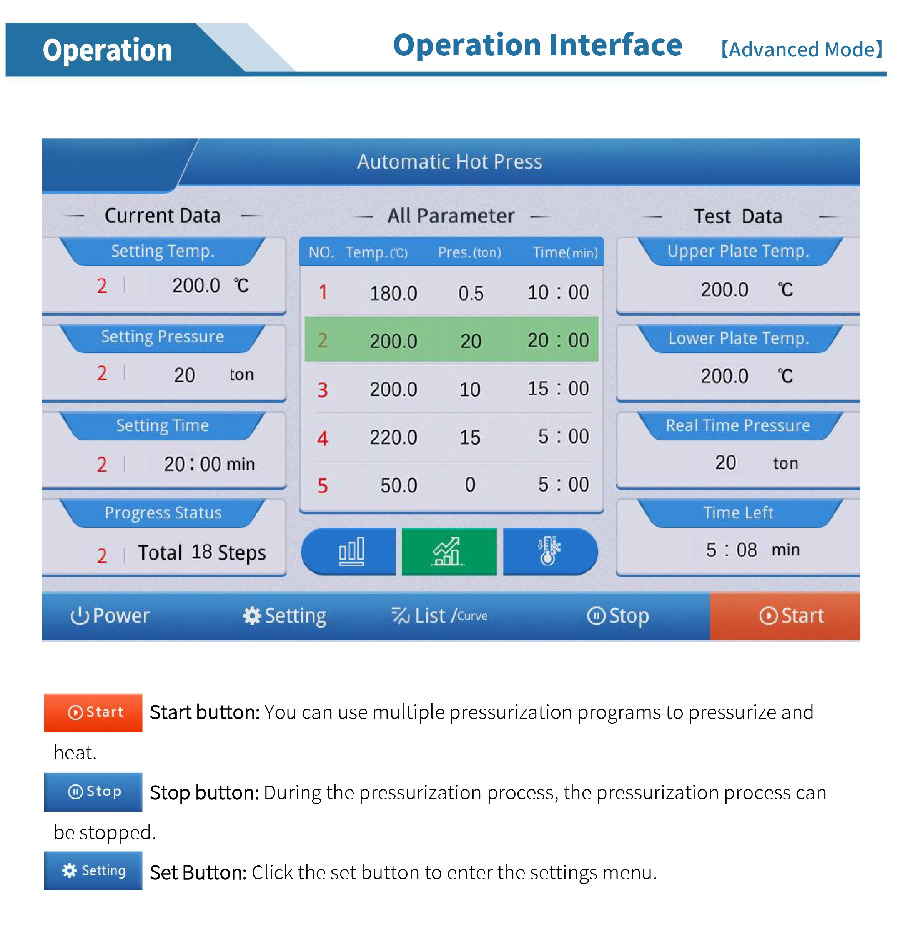

Process Control

Up to 18 program controls, including pressure, temperature, and water cooling, can all be controlled independently.

Water cooling for cooling

Support manual activation of water cooling for cooling, and automatic rapid cooling can also be achieved in multiple program segments.

Speed Regulation

The boosting speed can be adjusted, and the heating speed can also be regulated.

Remote Control

A computer needs to be selected and equipped. It can perform functions such as data analysis, comparison, modification, and export.

Plate Size

500 x 500 mm (m X n)

Working Space

520 x 100 mm

Power Supply Power

220V / 110V Customizable

Product Dimensions/Weight

680 x 680 x 1280 mm (L X W X H) /1080kg

Package Dimensions/Gross Weight

900 x 800 x 1400 mm (L X W X H) / 1920kg

Diagram of hydraulic

powder press size
