Main parameter

Max.designTemp: 1700C

Working temperature:0-1550C

Tube outer diameter:100mm ID:90MM

The heating zone length:440mm

Tube material:Alumina tube

Heating rate:0~5 Degree/Min

Voltage:220V,single phase 50/60HZ

Power:About 7kw(Subject to design)

Max.vacuum:-0.1Mpa(Cold state)

Heating element:Mosi2 heating element

Thermocouple:B type

Temperature accuracy: ±1℃

Furnace type

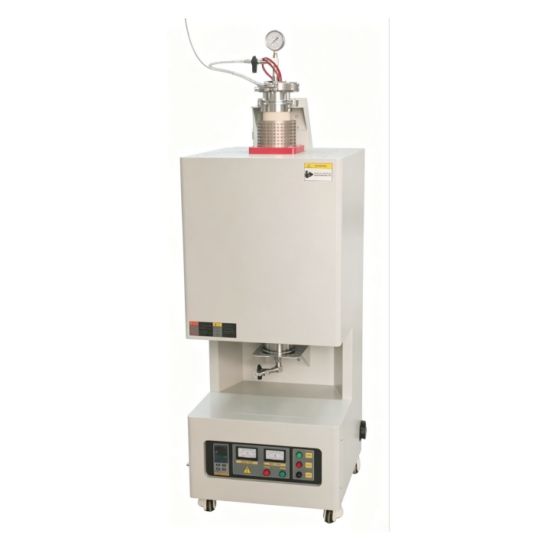

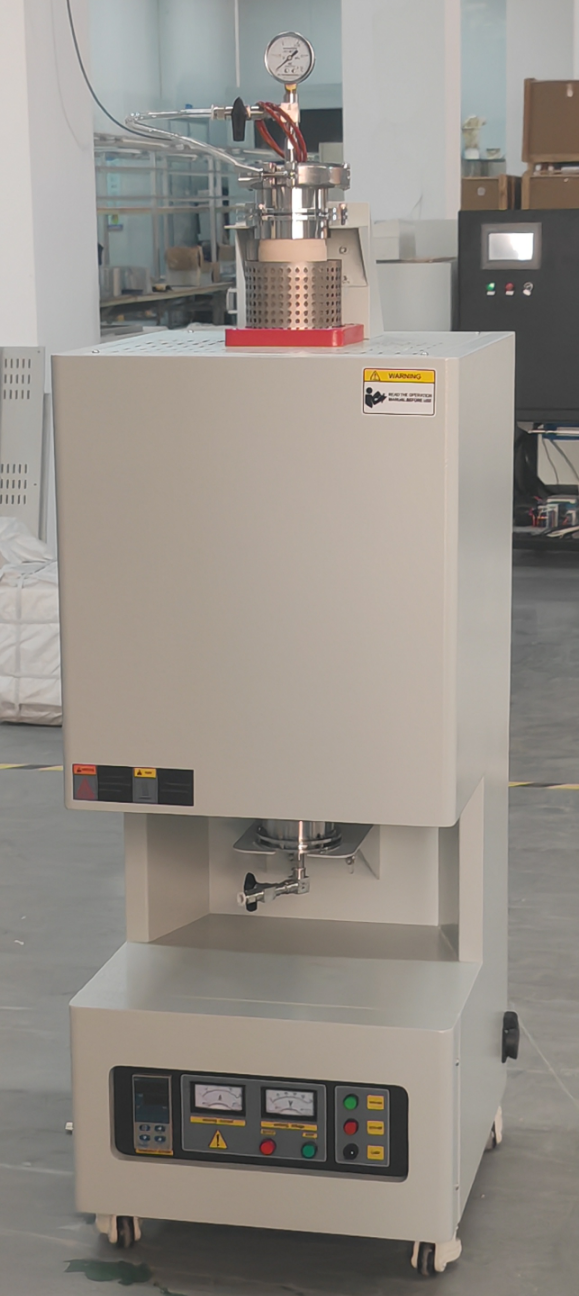

Furnace body with vertical type

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a pressure gauge. The air outlet is connected with vacuum pump, and all holes are equipped with ball valves. Equipped with a vacuum pump.

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Temperature controlling

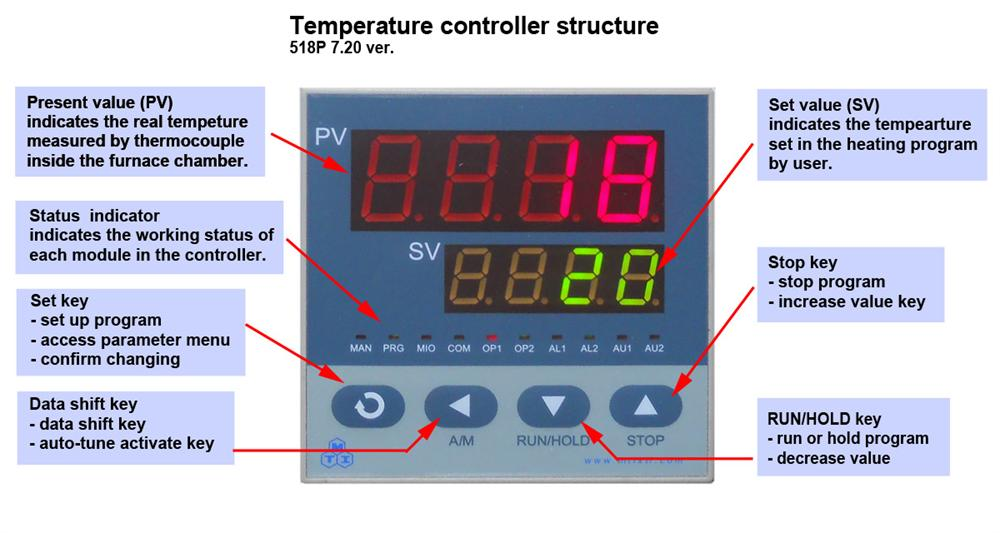

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Sealing way

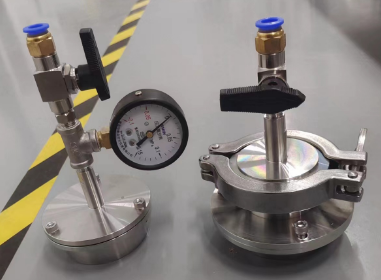

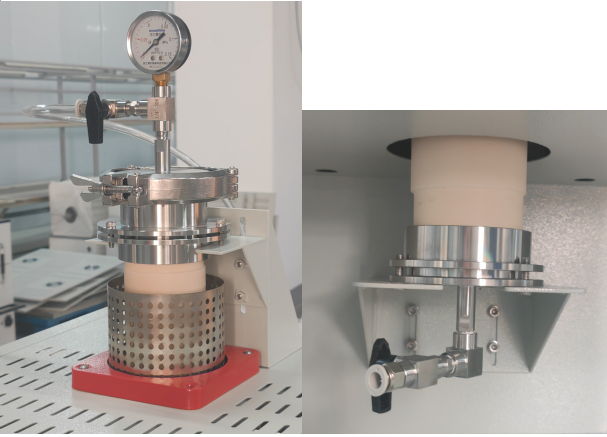

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (Over-temperature protection, brokenthermocouple protection) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Certificates:

CE, ISO

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

Alumina tube

1 pcs

Stainless steel flange

1 set

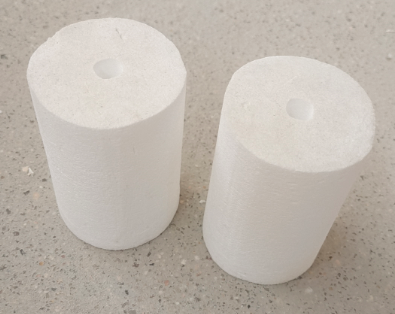

Tube stopper

2pcs

Spare heating element

2pcs

Spare O-ring

2pcs

10mm Air pipe

User manual

1 book

Vacuum pump

1 set
