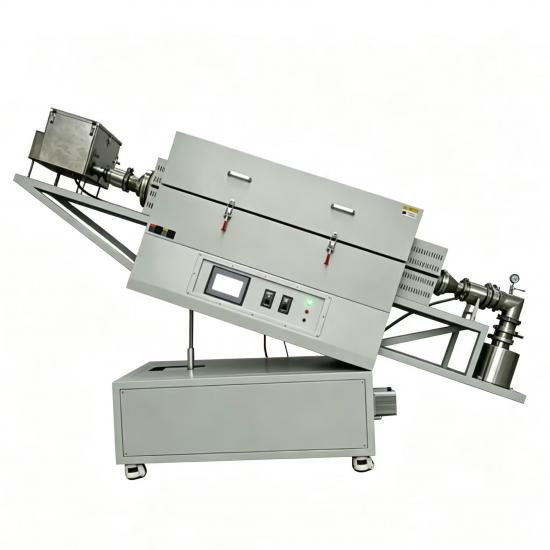

Main parameter

PN: SK2-XY-12TPRT

Working temperature:850C

The tube middle diameter:250mm

The diameter of the tube at both ends is 150mm

The length of the middle large-diameter tube

:400+400+400mm(Three heating zone)

Tube material: Inconel 625 tube

Heating rate:0~20 Degree/Min

Voltage380V,3 phase 50/60HZ

Heating element:Resistance wire

Thermocouple:K type

No need vacuum

Temperature accuracy: ±1℃

Hopper about 5L,

Control system

PLC+touch screen control, Need to use a PLC to control temperature, speed, gas, and oxygen content display, and reserve interface signals for connecting to the customer's exhaust treatment device.

Rotary system

Tube rotate speed:0-20 RPM

The tube can rotate 360 degrees,electric gear drive

Push button control switch

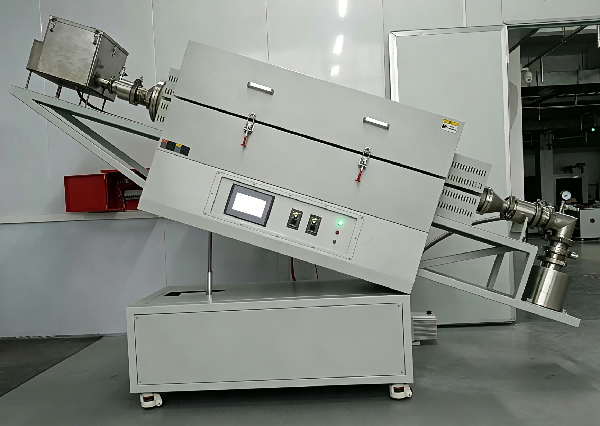

Tilting system

Maximum inclination: 0-15° (adjustable)

Bar-driven

Push button control switch

Feed system

The motor drives the screw push rod to push the material into the tube

With 5L Material tank

Discharge system

Flange with unloading tank, the furnace body is tilted to stir unloading

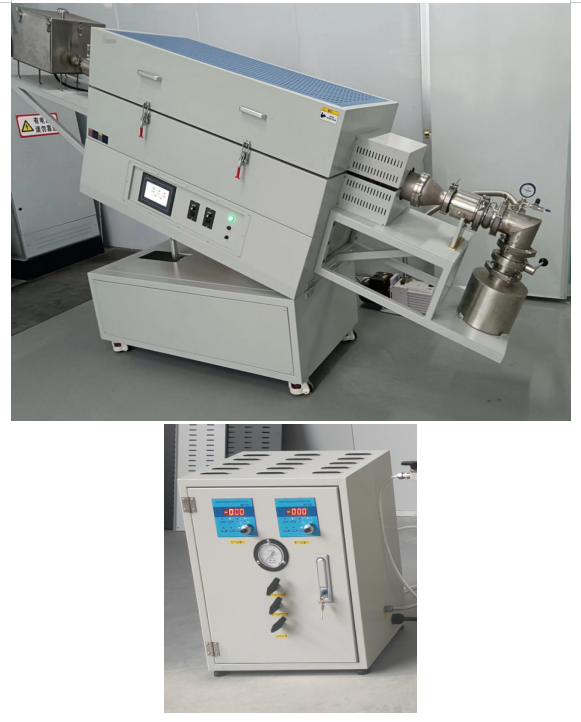

Gas system

Pass nitrogen gas through, equipped with 2 nitrogen mass flow meters, with flow rates of 10-60 L/min and 40-100 L/min respectively, and the furnace positive pressure should not exceed 0.02 Mpa.

Oxygen measurement system

Zirconia oxygen probe analyzer, with a measurement range of 0-10% O2, PLC output of 4-20mA, not guaranteed to be corrosion-resistant

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance. The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

Adopt 316L stainless steel flange and port, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing , Add an extra exhaust port to connect to the customer's exhaust treatment device. (The exhaust port interface needs customer confirmation)

Temperature controlling

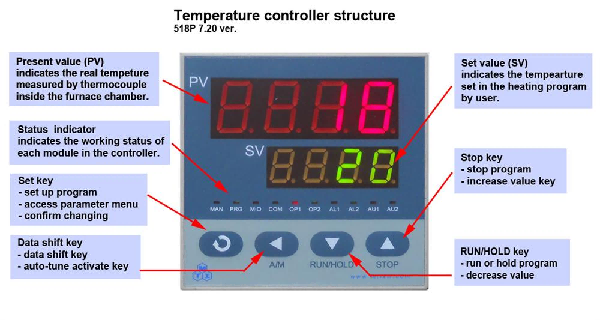

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and stainless steel tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Certificates:

CE, ISO

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

SS tube

1 pcs

Stainless steel flange

1 set

Feed and discharge system

1set

Gas system

1 set

User manual

1 book
