Main parameter

PN: SK2-XY-12TPR150

Max.designTemp: 1200C

Working temperature:0-1100C

The tube outer diameter:150mm

The heating zone length:400+400mm(Two heating zone)

Tube material:Quartz tube(straight tube)

Heating rate:0~20 Degree/Min

Voltage:380V 2 phase 50/60HZ

Power:about 15kw

Heating element:Resistance wire

Thermocouple:K type

Temperature accuracy: ±1℃

Max.vacuum:-0.1Mpa

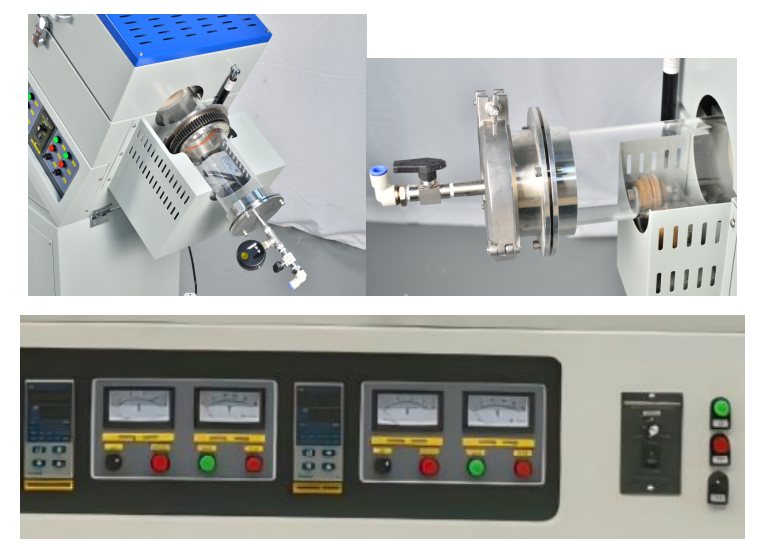

Rotary system

Tube rotate speed:0-20 RPM

The tube can rotate 360 degrees,electric gear drive

Push button control switch

Furnace Chamber material

Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

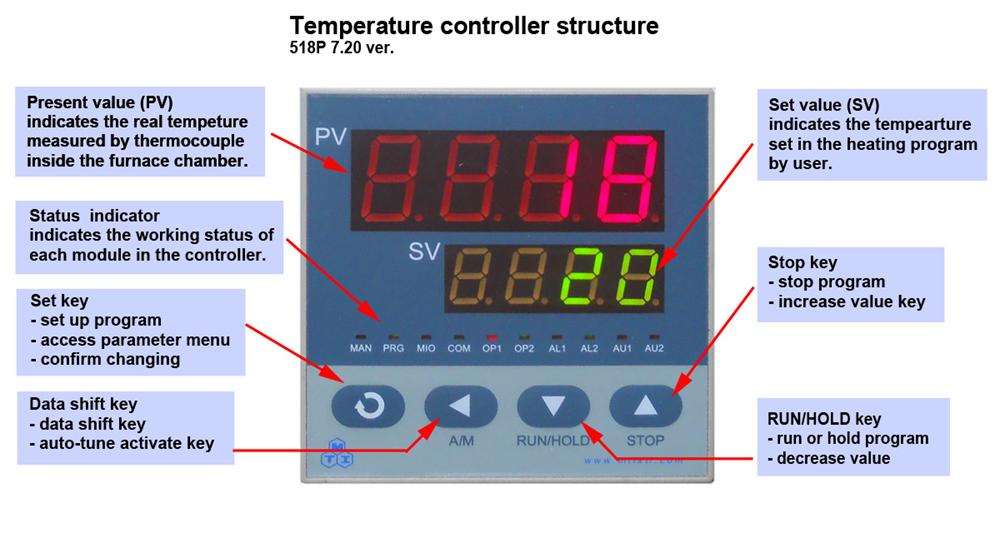

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and quartz tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Crucible hook

1 pc

Quartz tube

1 pcs

Stainless steel flange

1 set

Tube stopper

2pcs

Rotary system

1set

Vacuum pump

1 set

User manual

1 book
