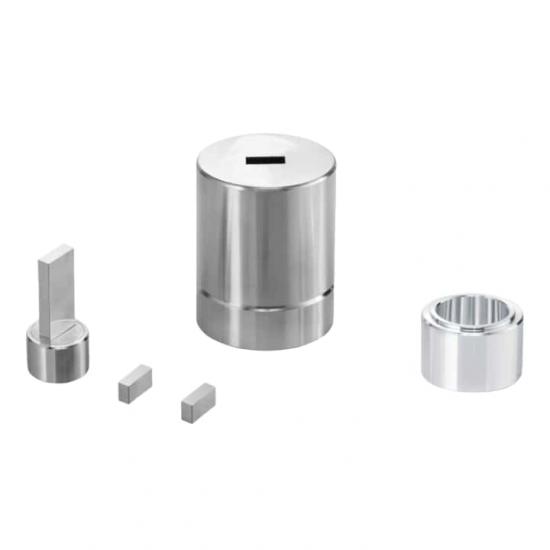

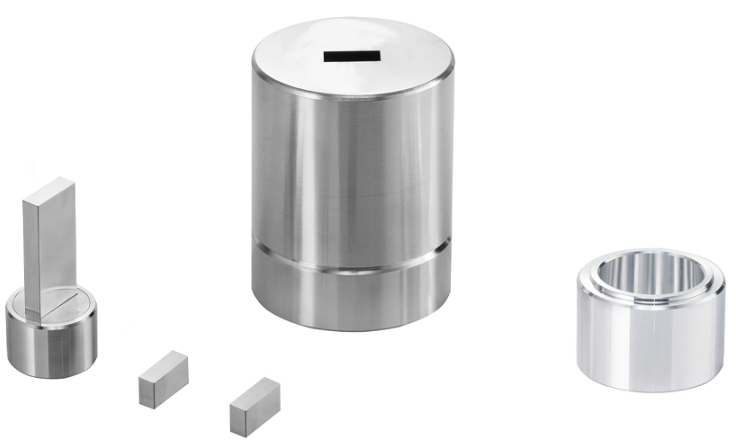

Width 3-10mm Cavity Depth 20mm Small Hydraulic Press Square Die

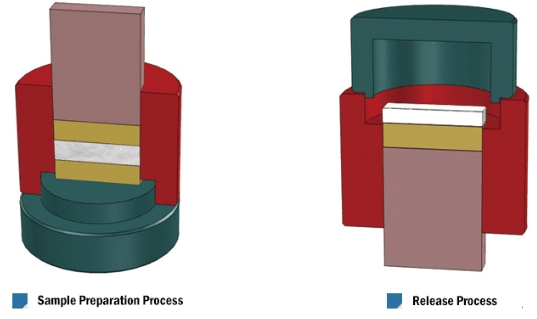

Schematic diagram of mold operation

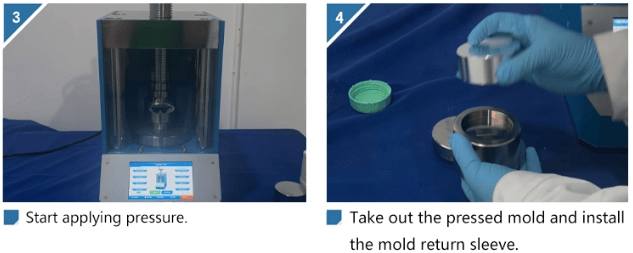

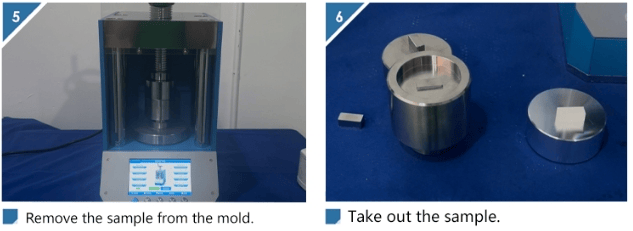

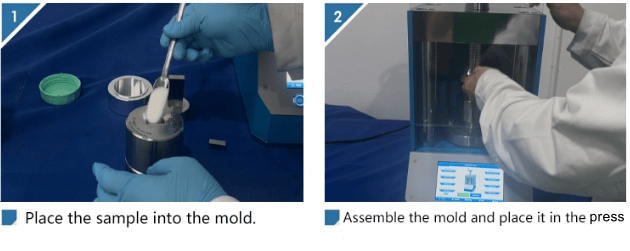

Operation steps

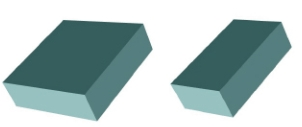

Rectangular molds are suitable for some slender samples that are easy to form. The size ranges from 3 to 100mm. Special mold sizes can be customized according to customer requirements.

Mold usage and maintenance

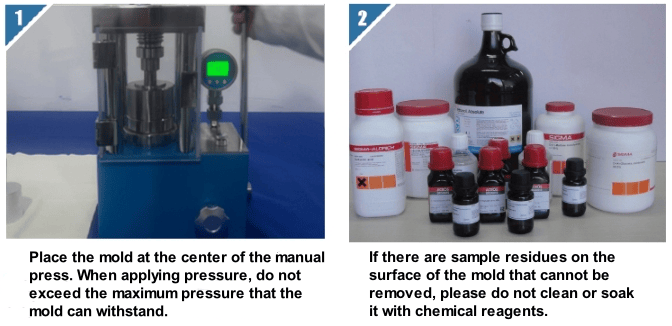

Each time the mold is used, the surface of the mold should be wiped clean with lint-free paper first to prevent the anti-rust oil on the mold from affecting the test results of the sample. When applying pressure, it is necessary to pay attention not to exceed the maximum pressure that the mold can withstand. After using the mold, the samples on the mold should be cleaned in time to prevent corrosion of the mold. When the mold is not used for a long time, anti-rust oil should be applied to the mold and it should be stored in a dry environment.

Technical parameters

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
