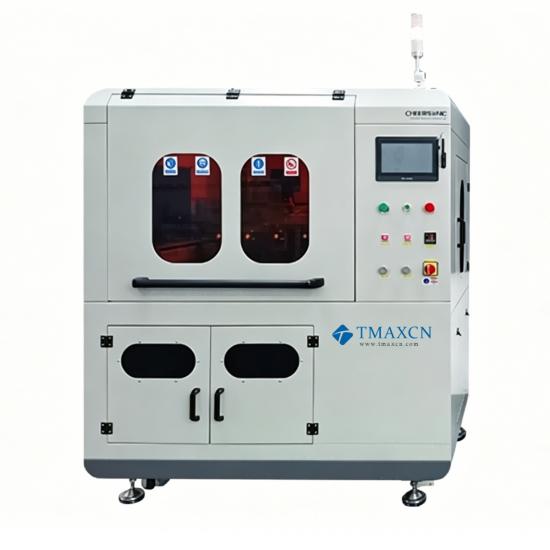

Ultrasonic Nozzle Spray Coating Machine Equipment Unit for Solar Cell





The CF08 is an industrial-grade coating system designed for small-to-medium batch production. Utilizing nationally patented ultrasonic spraying technology, it produces uniform and dense thin film coatings while being applicable for spray pyrolysis. Widely adopted across energy, nanotechnology, microelectronics, semiconductor, and glass coating industries.

System Overview
The CF08 is an industrial-grade coating system tailored for small-to-medium batch production. It employs patented ultrasonic technology to deposit uniform, dense thin films and supports spray pyrolysis applications. Configurable with single or multiple spray heads, its customizable design ensures adaptability across diverse industries.

Key Advantages
• Ideal for R&D and small-batch production
• Compact benchtop design with easy mobility
• Material utilization rate up to 95%
• Highly consistent coatings with ±5% uniformity
• Effective coating area: 500mm × 500mm

Target Industries
• Electronics
• New Energy
• Biomedical
• Glass
• Textiles/Non-wovens
• Nanotechnology

Features & Specifications

Category	Description
Uniform Deposition	Delivers highly uniform and efficient thin film coating
Flow Control	Precision flow regulation enables ultra-low volume spraying
Thickness Accuracy	High-precision thickness control capability
Material Utilization	>95% liquid material utilization rate
Nozzle Performance	Clog-resistant spray head design
Solution Compatibility	Processes both homogeneous solutions and suspensions
Application Scope	Supports R&D prototyping and production-scale coating
Process Control	Highly repeatable spraying for consistent results

Technical Parameters

Parameter	Specification
Dimensions	1600 (L) × 1000 (W) × 1850 (H) mm
Coating Area	Standard 500 × 500 mm (Customizable upon request)
Power Supply	120V/220V ±10%, 50-60Hz
Nozzle System	Configurable with multiple ultrasonic nozzle options
Liquid Delivery	Multiple feeding systems available (peristaltic/syringe/pressure-based)
Control Interface	7-inch touchscreen HMI
Certifications	CE, FDA compliant
