Automatic Nano Ultrasonic Spray Coater Supplier Available to Buy



The CF09 Ultrasonic Precision Coating System is an industrial-grade spraying equipment designed to meet small-to-medium batch production requirements. It is widely applied in energy, nanotechnology, microelectronics, semiconductors, glass coating, and other industries.

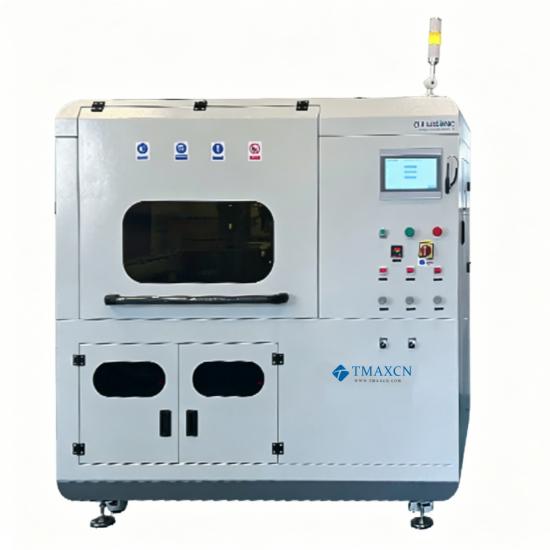

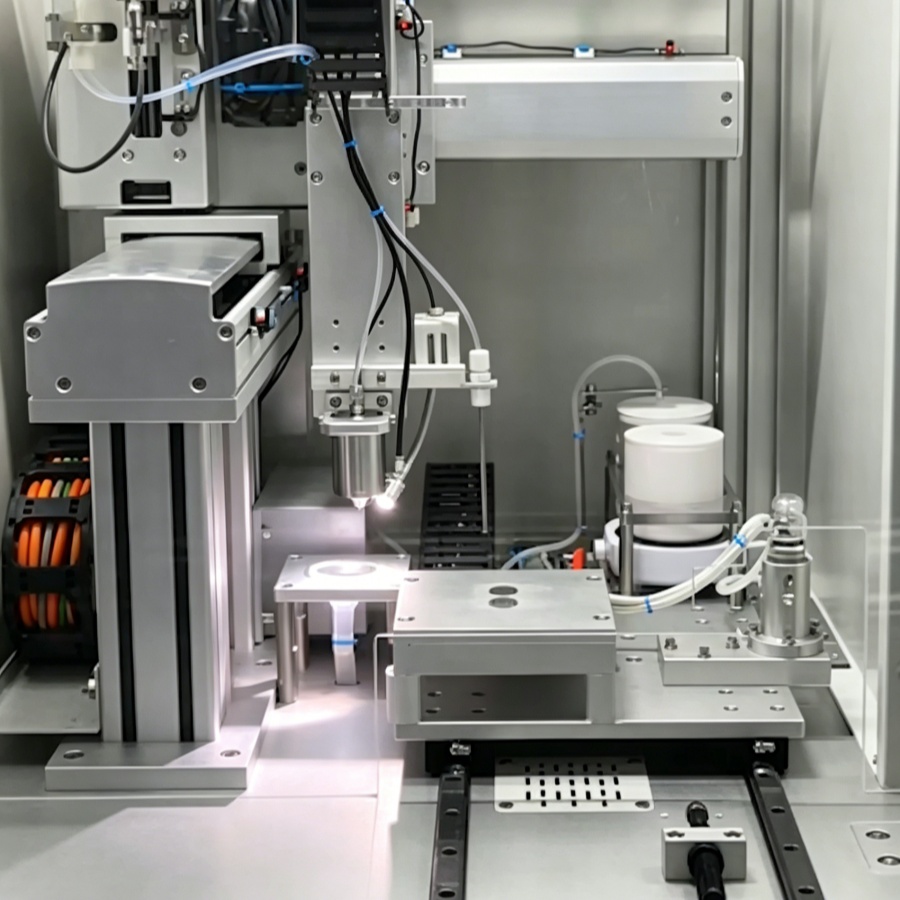

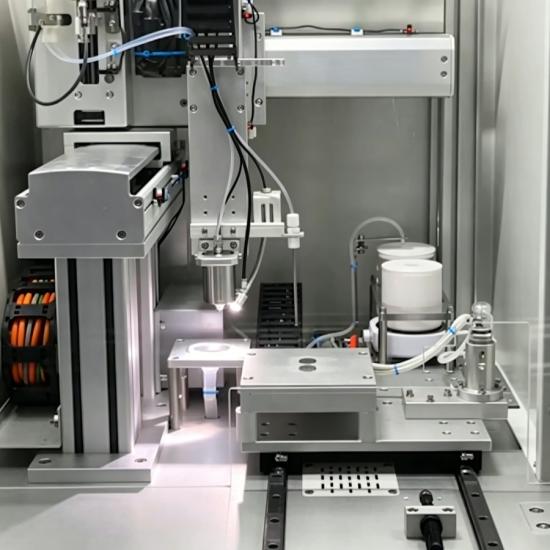

The CF09 Ultrasonic Precision Coating System is an industrial-grade spraying device tailored for small-to-medium batch production. Utilizing patented ultrasonic spraying technology, it enables the preparation of uniform and dense thin-film coatings, as well as applications in spray pyrolysis. The system can be equipped with single or multiple nozzle configurations, offering flexible customization for diverse industries and applications. It is widely used in energy, nanotechnology, microelectronics, semiconductors, glass coating, and more.

Key Features:

✔ Suitable for R&D and small-batch production
✔ Compact benchtop design, easily portable
✔ Material utilization rate up to 95%
✔ Highly uniform and stable coating (±5% uniformity)
✔ Effective coating area: 650mm × 650mm

Applicable Industries:

· Electronics

· New Energy

· Biomedical

· Glass

· Textiles/Nonwoven Fabrics

· Nanotechnology

Features & Specifications:

Category	Details
Features
	- Delivers uniform and efficient thin-film coating
	- Precise flow control, capable of spraying at extremely low rates
	- High-precision coating thickness control
	- Liquid utilization >95%
	- Nozzle clog-resistant design
	- Compatible with solutions & suspensions
	- Meets both lab-scale and production-scale demands
	- Highly controllable spraying for reliable and consistent results
Technical Parameters
Dimensions	1800 × 1200 × 1940 mm
Coating Range*	650 × 650 mm (Customizable upon request)
Power Supply	120V / 220V, ±10%, 50-60Hz
Ultrasonic Nozzles	Supports multiple nozzle configurations
Control System	7-inch HMI interface (Self-developed by TMAX)
Optional Features	Heated/Vacuum Plate
Certifications	CE, FDA

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
