PEEK material Large Pressure controll Battery Fixture for Press Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-PMN-JC
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

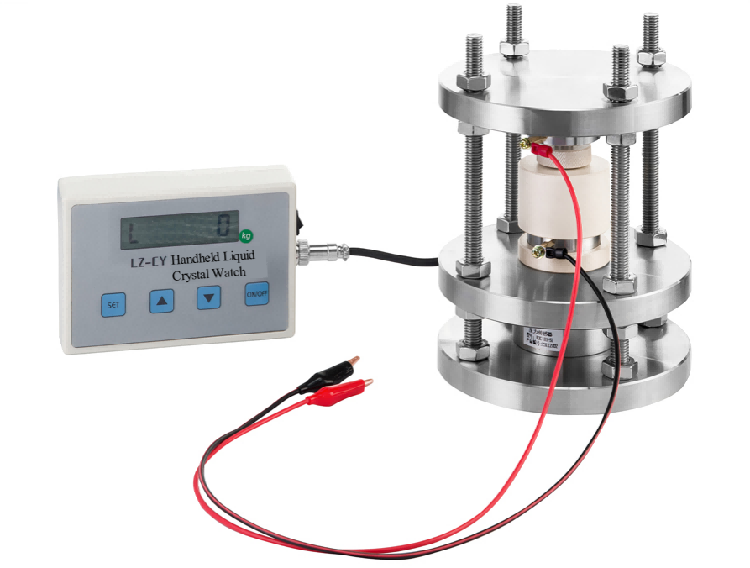

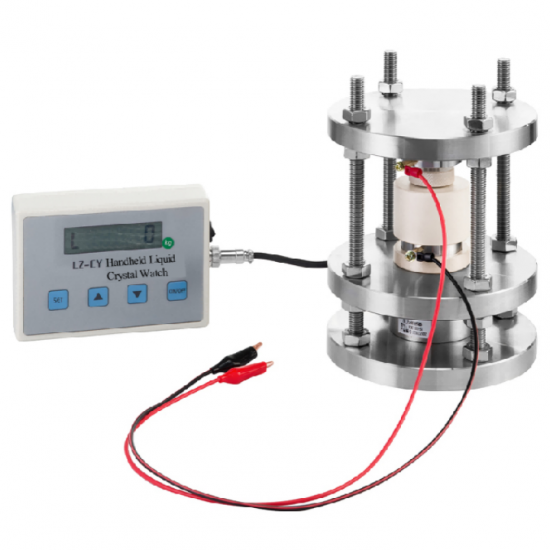

PEEK material Large Pressure controll Battery Fixture for Press Machine

Battery Fixture Price

Application fields

We are a professional manufacturer of powder tablet presses and molds. Our tablet presses are small in size but have high pressure and high pressure control accuracy. They have been applied in various industries such as research, teaching, testing, pharmaceuticals, catalysis, and chemical engineering. In addition, this product can be used in conjunction with Fourier infrared spectrometers and fluorescence spectrometers for sample preparation, and can replace similar imported products.

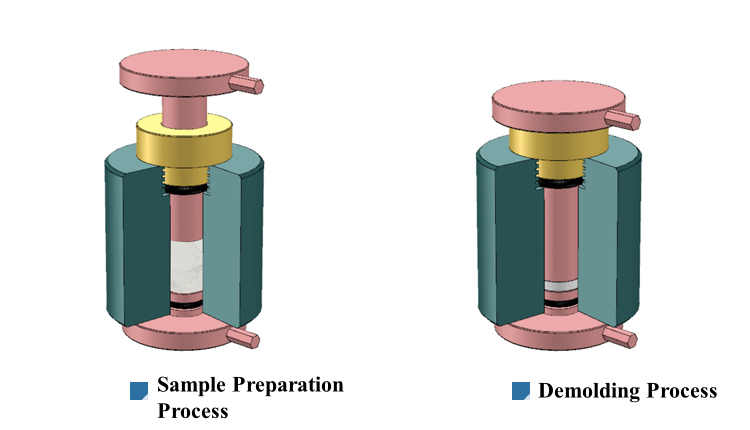

Mold Operation Diagram

Battery Fixture Price

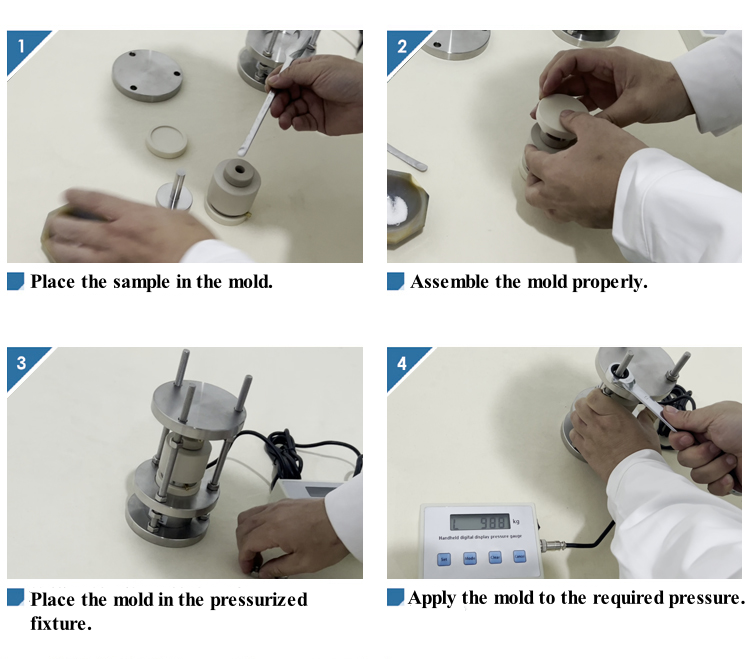

Operating Steps

Battery Fixture Price

Product Parameter

Instrument model	TMAX-PMN-JC
Sample shape
Displayed pressure range	0-5000kg
Frame material	304 stainless steel
Mold material	PEEK insulating material
Head material	3Cr13 stainless steel
Sample size	Φ10，Φ12，Φ12.7，Φ13，Φ20mm (d)
Mold size	Φ50x90mm(M X L)
Overall dimensions	Φ140 ×200 mm (D X H)
Input power	AA batteries(4 pcs)
Mold weight	4.5 kg

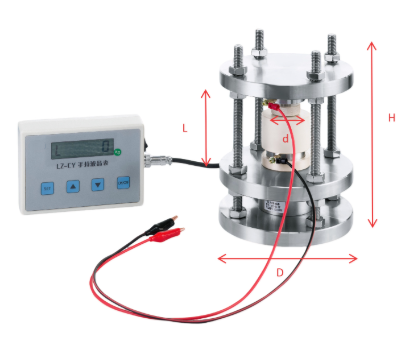

Dimension illustration
