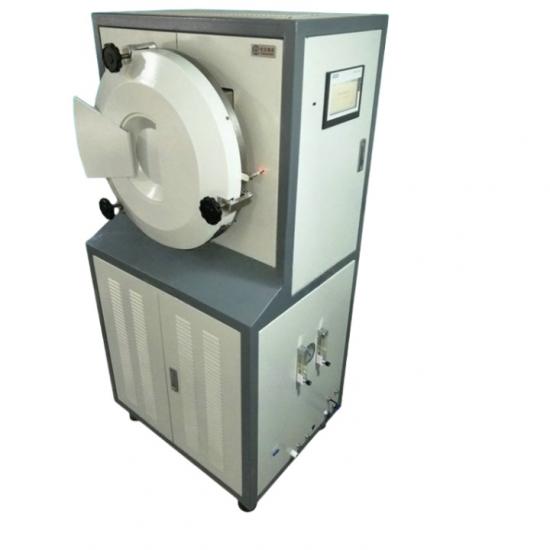

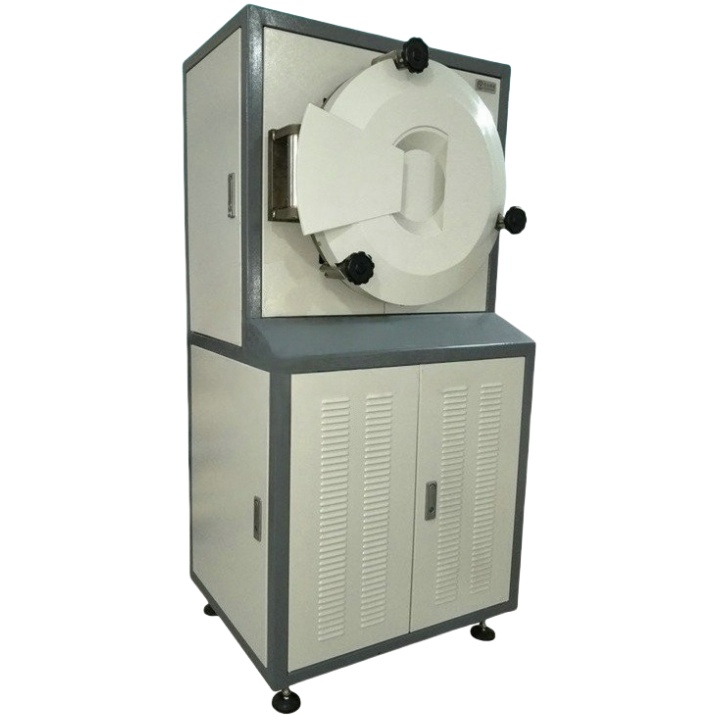

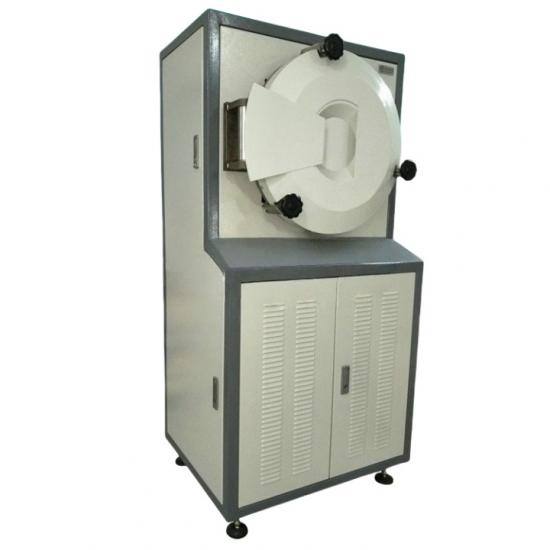

CY-AT1600C-L type microwave experimental furnace

Product application

The CY-AT1600C-L type microwave experimental furnace is a high-temperature sintering furnace with microwave heating, vacuum pumping and atmosphere introduction. An experimental environment featuring rapid vacuuming, controllable atmosphere and high temperature.

It is applicable to ceramic sintering processes, such as oxide ceramics, hard alloys, magnetic materials, silicon nitride ceramics, electronic ceramics, functional ceramics, bioceramics, daily-use and art ceramics, etc. experiments. It is also applicable to high-temperature atmosphere-protected reactions, such as reduction reactions, nitriding reactions, etc.

Product features

● Integrated design, equipment integrated with vacuum atmosphere supporting equipment, safe and convenient

● International brand control system, waterproof isolation control cabinet

● Industrial-grade microwave system, stable operation and long service life

● Vacuum-formed thermal insulation fiber lightweight structure, energy-saving and highly efficient

● The 7-inch large touch screen operation is simple and convenient

● Non-contact heating, no pollution to materials

● The furnace body and magnetron are all water-cooled, ensuring a long service life of the magnetron

● Four process curves are preset, which can adapt to different product process conditions and can be saved and retrieved at any time

Product safety

Microwave leakage ≤0.01mw/cm² (lower than the average leakage value of mobile phones)

Alarm: Furnace door not closed tightly, equipment overheating, magnetron overheating, microwave system failure, low water flow, high pressure

Model

CY-AT1600C-L

Equipment structure

Box-type (floor-standing placement)

Voltage

220±10V   50Hz

Rated power

10KW

Microwave power

0.01～5.6kW   Continuously adjustable

Microwave frequency

2.45GHz

Maximum temperature

1600℃

Operating temperature

≤1550℃

Heating space

225×210×85mm(4L)

Temperature control accuracy

±1℃

Number of gas paths

2（It can be configured according to the user's requirements）

Ultimate pressure

10-100Pa

Atmosphere

Reducing gas, inert gas, air

Control program

Manual, constant temperature, automatic control, with data storage and export of experimental data; The curve is displayed in real time, with 40 settable process parameters and 4 preset process curves. The experiment can be retrieved at any time

Control mode

7-inch touch screen +PLC

Requirements for cooling water

≥2m ³ /h, water temperature ≤35℃

Microwave leakage

＜0.01mw/cm2

Alarm

The furnace door was not closed tightly, the equipment overheated, the magnetron overheated, the microwave system malfunctioned, the water flow was too low, and the pressure was too high

Equipment dimensions

900×800×2000mm(Length × width × height)

Equipment configuration

1. 304 stainless steel water-cooled furnace body (1 set), 304 stainless steel water-cooled furnace door (1 set)

2. Industrial-grade water-cooled microwave heating system (1 set), leak-proof isolation control cabinet (1 piece)

3. 1800℃ insulation modules (2 sets), strong wave absorption crucibles (2 pieces), strong wave absorption load-bearing plates (2 pieces)

4. Mitsubishi brand PLC from Japan (1 piece), 7-inch Siemens touch screen (1 piece), thermocouple (1)

5. Airway assembly (1 set) (flow meters (2 pieces), vacuum gauge (1 set), vacuum pump (1 piece), vacuum valve (3 pieces), gas mixing tank (1 piece), bellows (1 set), pressure gauge (1 piece)), waterway assembly (1 set) (water flow meter (1 piece), pipeline (1 set)

6. Operating gloves (1 set), crucible tongs (1 piece), handheld microwave leak detector (1 piece)

Fragile items

1. Insulation module

2. Strong wave absorption crucible

3. Strong wave absorption load-bearing plate
