Lab Width Adjustable Film Applicator With Adjustable Micrometer

Lab Width Adjustable Film Applicator With Adjustable Micrometer

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-WA
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

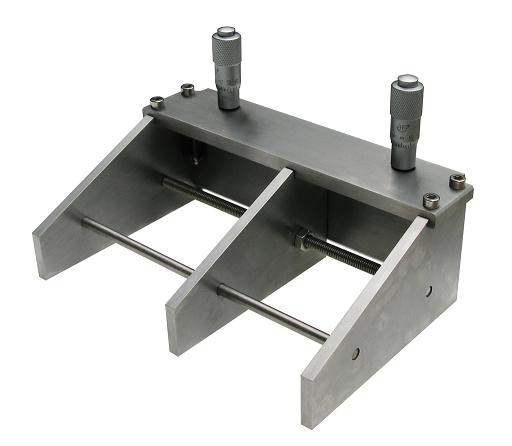

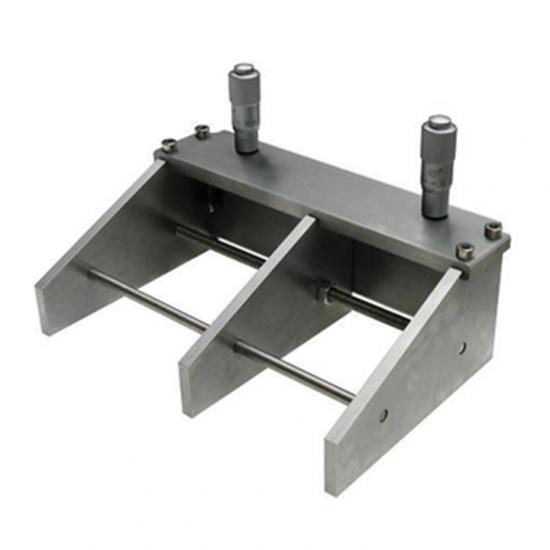

Lab Width Adjustable Film Applicator With Adjustable Micrometer


1. Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.
2. The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.



SPECIFICATIONS

Features

1. 100 mm standard width(100/15/200/250/300mm or more customizable)
2. Make wet film thickness between 0 - 3500 microns(can be customized)
3. Micrometer head's controllable accuracy is 10 microns
4. Made of SS304 stainless steel

Optional part

 Digital gauge is available at extra cost

Warranty

 One year limited warranty with lifetime technical support

Net Weight

1kg

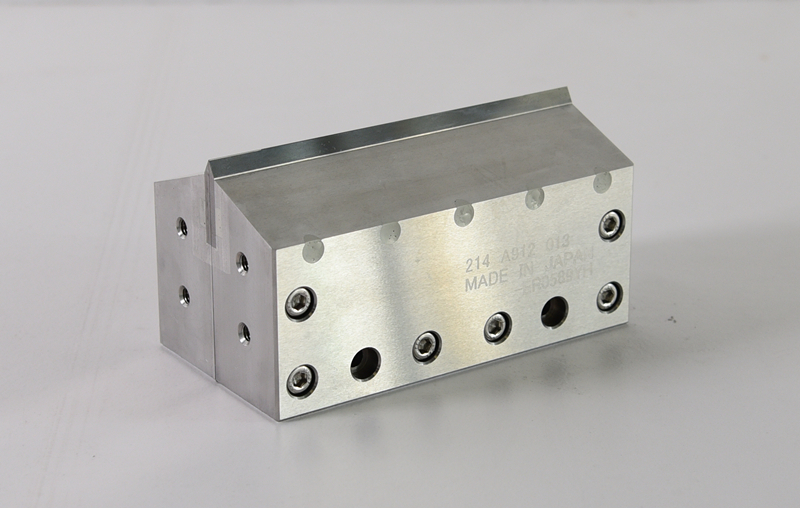

slot die




Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
