Laboratory Desktop Precise Flat Slot Die Coater With Heating Vacuum Chunk

Laboratory Desktop Precise Flat Slot Die Coater With Heating Vacuum Chunk

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-PD100
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

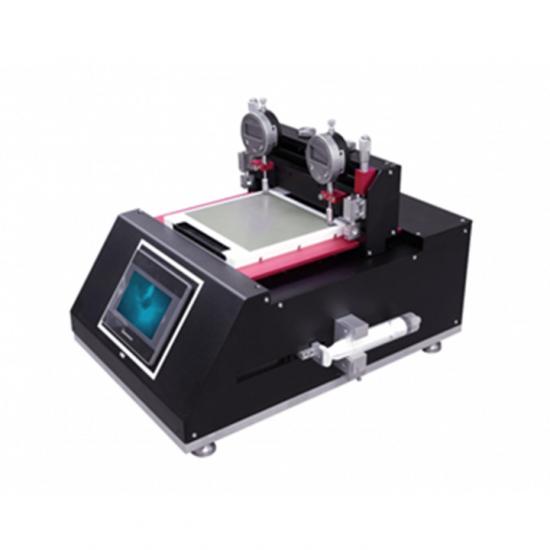

Laboratory Desktop Precise Flat Slot Die Coater With Heating Vacuum Chunk


TMAX-PD100 is a precision slot die coater with a 100 mm width coating head. It is an excellent tool to research film coating for OLED, perovskite solar cells, and fuel cell proton exchange membrane. Choosing the best bar coater from our company.


SPECIFICATIONS

Working Power

110V - 240V AC 50/60Hz for worldwide use

500W

The machine has 24VDC input and driving by 24VDC motor, which can be used under Ar atmosphere glovebox

Slot Died head

100 mm width slot die head capacity

50 mm and 25 mm width slot coating head is available at the extra cost

Min. coating thickness: 5 microns (depended on slurry viscosity)

Syringe Pump

Built-in syringe pump with the variable speed  at the range from 0.01mm/s to 5.0 mm/s

Three syringe containers are included with 10ml, 20ml, 30ml respectively

Micrometer Head



Two-micrometer heads are built-in travel rod of the coater to adjust the gap between slot die and substrate

Digital micrometer head is available as an option at an extra cost

Tavel Speed & Length

Travel Speed: 1 - 10 mm/sec variable via touch screen control panel

Max. Coating area: 100 mm W x 100 mm L

Heated Vacuum Chunk



1. Vacuum chuck made of aluminum alloy with the small hole

2. The small vacuum pump is built inside coater driven by 24DC motor

3. Vacuum chuck Area:  150mm (L) x 130mm (W)

4. Heating elements are installed inside chuck which can reach 120ºC Max.

5. Precision digital temperature controller with +/- 1ºC accuracy

6. One high temperature temped glass plate is put on the vacuum chuck, and substrate will be put on the top

Control Panel

4" color touch screen panel to set coating speed, heating temperature, and slurry pump speed

Product Dimensions

440mm L x 340mm W x 300mm H

Net Weight

26 kg

Shipping Weight

50 Kg



slot die coater


slot die




Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
