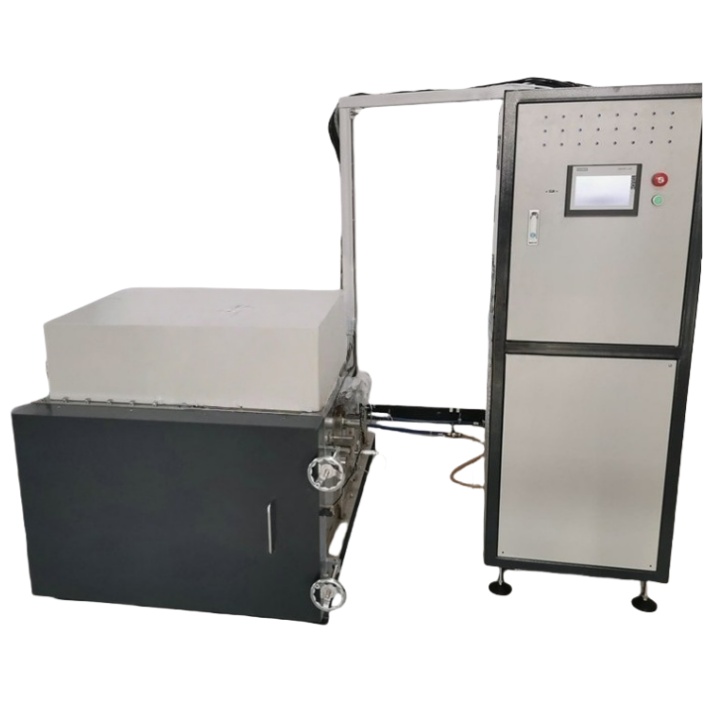

CY-SI1300C-V type ceramic microwave sintering furnace

Product application

The CY-SI1300C-V type ceramic microwave sintering furnace is a microwave rapid heating box-type sintering furnace, which is often used for microwave sintering of daily-use porcelain, art porcelain, electronic ceramics, etc. Compared with traditional box-type furnaces, it ensures more uniform sintering and saves 70% to 90% of the heating time, significantly improving efficiency.

Product features

● International brand control system, stable and reliable

●The material heating rate is fast, reaching up to 100℃/min, and the heating time is shortened to 1/5 to 1/10 of the original

●During the heating process in the furnace, the temperature is uniform, and the ceramics can be sintered rapidly without cracking

● Vacuum-formed thermal insulation fiber lightweight structure, energy-saving and highly efficient

● Power off when opening the door and delay power restoration to ensure safety

●The 7-inch large touch screen operation is simple and convenient

● Non-contact heating, no pollution to materials

● The furnace body and magnetron are water-cooled, ensuring a long service life of the magnetron

●According to customer needs, 4 sets of processes are pre-stored and can be directly called up and modified at any time

Product safety

Microwave leakage ≤0.5mw/cm² (lower than the average leakage value of mobile phones)

Alarm: Equipment over-temperature, furnace door not closed tightly, low water flow, magnetron over-temperature, microwave system failure

Model

CY-SI1300C-V

Equipment structure

Box-type (floor-standing placement）

Voltage

380±10V   50Hz

Rated power

60KW

Microwave power

36kW   Continuously adjustable

Microwave frequency

2.45GHz

Operating temperature

≤1350℃

Heating space

220×1200×220mm

Heating rate

≤100℃/min

Temperature control accuracy

±1℃

Control program

Manual, constant temperature, automatic control, with data storage and export of experimental data; The curve is displayed in real time, with multiple settable process parameters. Four groups of processes are pre-stored and can be directly called up and modified at any time

Control mode

7-inch touch screen +PLC

Requirements for cooling water

≥10m3/h，Water temperature≤35℃

Microwave leakage

≤0.5mw/cm2

Alarm

Equipment overheating, furnace door not closed tightly, magnetron overheating, microwave system failure, low water flow

Equipment dimensions

2000×2200×2200mm(length × width × height)

Equipment configuration

1. 304 stainless steel furnace body (1 set)

2. Industrial-grade water-cooled microwave heating system (1 set)

3. 1600℃ thermal insulation refractory materials (1 set)

4. Mitsubishi brand PLC (1 piece), 7-inch Siemens touch screen (1 piece), temperature measurement device (1 set

5. Material cart (1 set), circulating cooling water system (1 set)

Fragile items

1. Insulation module

2. Strong wave absorption load-bearing plate
