Lab Width 41 to 80mm Square Mold or Cold Press Die Suitable for Slender Samples

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-PMF-E
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

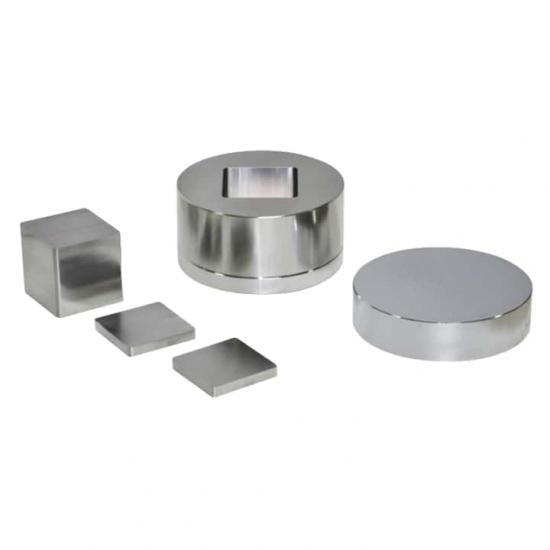

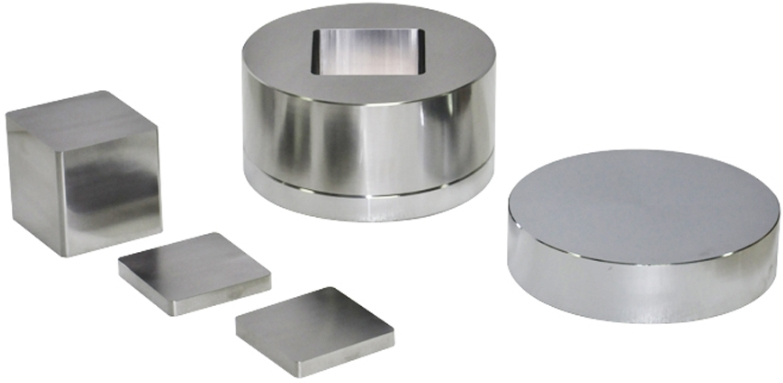

Lab Width 41 to 80mm Square Mold or Cold Press Die Suitable for Slender Samples

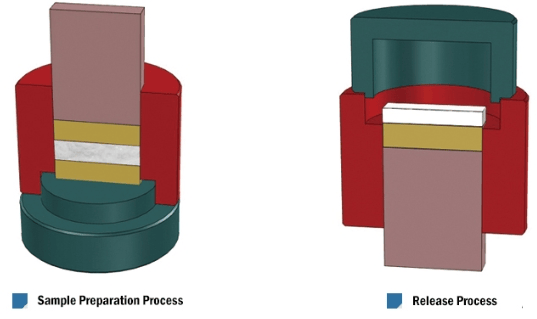

Schematic diagram of mold operation

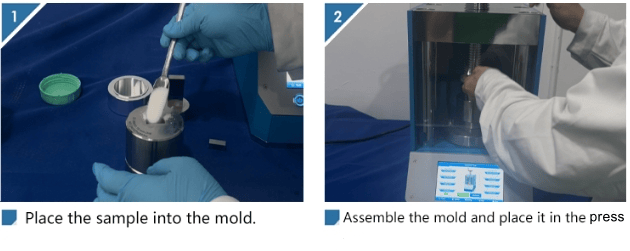

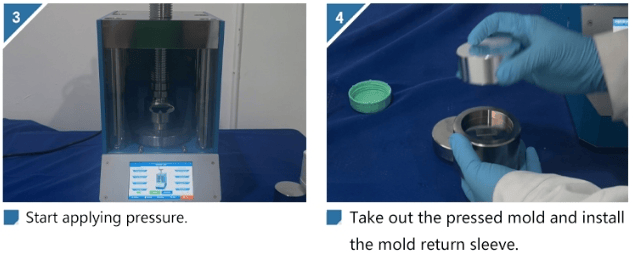

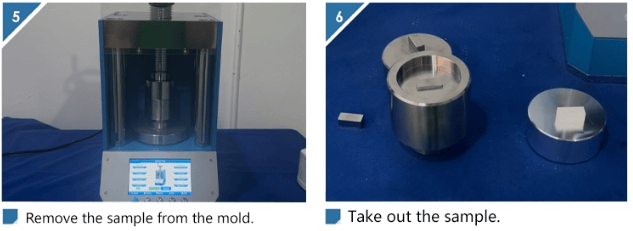

Operation steps

Rectangular molds are suitable for some slender samples that are easy to form. The size ranges from 3 to 100mm. Special mold sizes can be customized according to customer requirements.

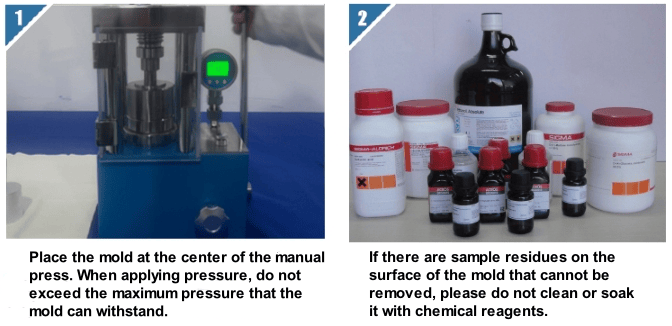

Mold usage and maintenance

Each time the mold is used, the surface of the mold should be wiped clean with lint-free paper first to prevent the anti-rust oil on the mold from affecting the test results of the sample. When applying pressure, it is necessary to pay attention not to exceed the maximum pressure that the mold can withstand. After using the mold, the samples on the mold should be cleaned in time to prevent corrosion of the mold. When the mold is not used for a long time, anti-rust oil should be applied to the mold and it should be stored in a dry environment.

Technical parameters

Instrument model	PMF-E

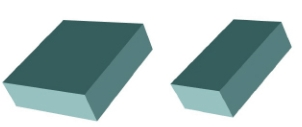

Pressed sample shape
Mold material	Alloy tool steel: Cr12MoV
Indenter hardness	HRC60-HRC62
Sample size	50x50, 60x60, 70x70mm(M)
Cavity depth	55、60、65mm(N)
External dimensions	φ98x150mm、φ118x180m、φ138x180mm(LXH)
Mold weight	7.3Kg、11.4Kg、20Kg
Schematic diagram of dimensions
