Lab Metallographic Grinding and Polishing Machine with Sandpaper

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-UNIPOL-830
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

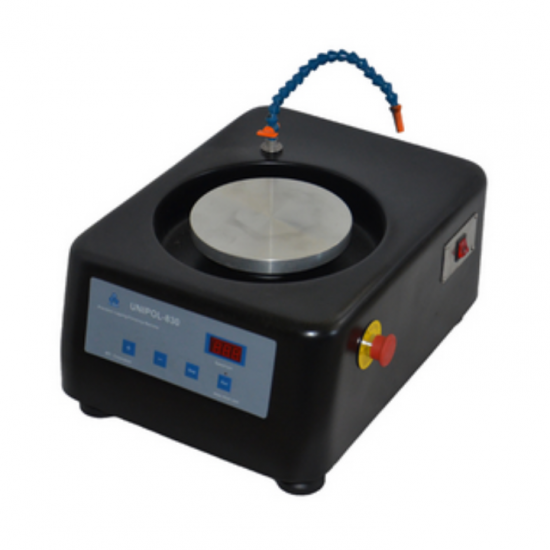

Lab Metallographic Grinding and Polishing Machine with Sandpaper

Product introduction

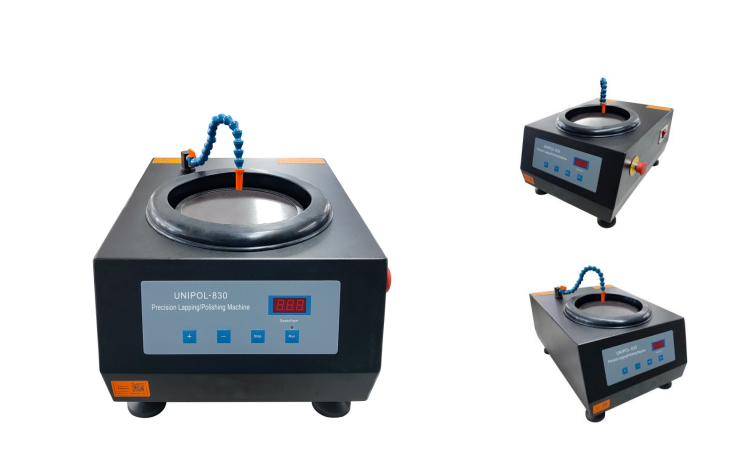

UNIPOL-830 Metallographic Grinding and Polishing Machine is a manual grinding and polishing machine specially designed and developed by our company for various universities and research institutes, as well as various metallographic laboratories. It can not only polish and grind metal materials, but also polish and grind various non-metallic materials, such as crystals, ceramics, infrared optical materials (such as zinc sulfide, zinc sulfide, silicon, germanium and other crystals), glass, PCB boards, rock samples, mineral samples, refractory materials, composite materials and organic high-molecular materials. The grinding and polishing speed of UNIPOL-830 Metallographic Grinding and Polishing Machine can be adjusted infinitely, and the pressure can be controlled manually. The operation is simple and convenient, and during the grinding process, it can be directly cooled with tap water. The installation of sandpaper or polishing pads can be done using a retaining ring or by magnetic adsorption. The installation is convenient and can be selected according to personal needs, using different installation methods.

Main features
This machine can be equipped with either a clamping ring or magnetic attraction method to install the sandpaper and polishing pad, making the operation more stable. The magnetic attraction is mainly to overcome the drawback of traditional clamping that causes the polishing fabric to fold. The adhesive-coated polishing fabric is first adhered to the polishing base plate and then magnetically attracted to the magnetic sheet. Secondly, it is convenient for the replacement of the sandpaper and polishing pad.

Technical Specifications

Product Name	UNIPOL-830 Metallographic grinding and polishing machine
Product model	UNIPOL-830
Installation conditions	1. Humidity and temperature: 10 - 85% RH (no condensation at 25℃) Temperature: 0 - 45℃. 2. There should be no strong vibration sources or corrosive gases around the equipment. 3. Power supply: Export standard equipment: AC 110/230V 50/60Hz three-prong socket 10A Domestic standard equipment: AC 220V 50Hz national standard three-prong socket 10A (the socket must have a good safety protection grounding wire) 4. Cooling water: The equipment is equipped with an upper water inlet and a lower water outlet. It is necessary to connect the tap water and drainage pipelines by yourself. 5. Air source: Standard equipment does not require any special air source requirements. 6. Workbench: It is recommended to use an operating table or desktop with a load capacity of more than 100kg. 7. Ventilation device: Good ventilation environment, no special ventilation device requirements. 8. Auxiliary equipment (to be purchased separately): Recommended: 1. SKCH-1 (A) Precision Thickness Gauge 2. SZKD-2 Automatic Stirring Dripping Machine, SKZD-3 Suspension Liquid Dripping Machine 3. SKCS-1 Air Drying Machine
Main parameters	1. Equipment power supply port: AC 110/220V conversion (AC 110V is invalid in China)
	2. Total power: 180W
	3. Grinding and polishing disc diameter: Φ203 mm
	4. Grinding and polishing disc rotation speed: 50 - 600 rpm (adjustable)
	5. Polishing disc station: 1 station
	6. Spindle drive motor: DC 110V 165W
	7. Control method: Single-chip microcomputer + buttons
	8. Product specifications: · Dimensions: L400 × W580 × H350 mm · Net weight: ≈ 24 kg
	Note: 1. The power supply for the equipment is divided into two types: external and internal. The actual power supply parameters shall be based on the label attached to the rear of the product. 2. Various polishing discs, special fixtures, and dedicated components can be customized according to user requirements.

Standard accessories

NO	Name	Quantity	Picture
1	Magnetic tiles	2 pieces
2	Developing film negatives	5 pieces
3	Sandpaper (240#, 400#, 800#, 1500#)	Each 2 pieces
4	Polishing pad (leatherette, synthetic leather)	Each 1 piece
5	Diamond polishing paste (W2.5)	1 stick

Optional accessories

NO	Name	Function category	Picture
1	SKZD-2 Drip Feeder	(Optional)
2	SKZD-3 Dripping Dispenser	(Optional)
3	SKZD-4 Automatic Dosing Machine	(Optional)
4	SKZD-5 Dripping Dispenser	(Optional)
5	Magnetic resin diamond grinding and polishing disc	(Optional)
6	UNIPOL-01 Type TEM Wedge-shaped Grinding and Polishing Fixture	(Optional)

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
