Item No.:
TMAX-PC-600D1Payment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

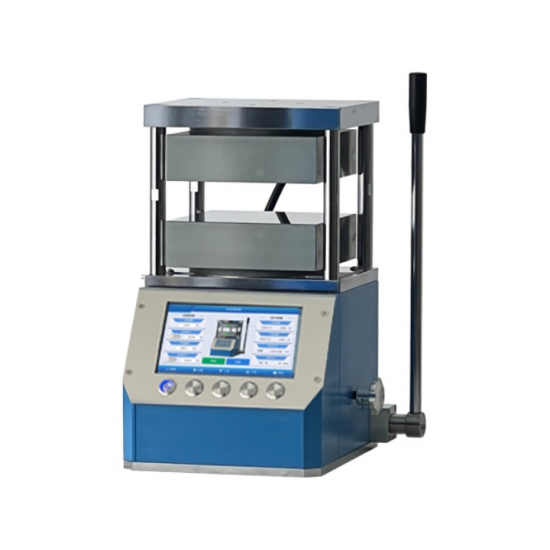

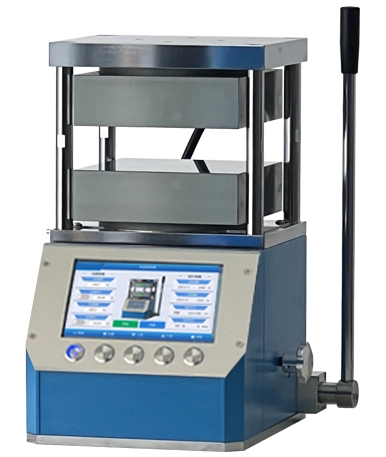

One year limited warranty with lifetime technical supportLab Manual Integrated Laminating Hot Press Machine with Double Plate 300C 500C
Technical Parameter
|
Instrument model |
PC-600D1 |
|
Pressure range |
0-10.0tons |
|
Piston diameter |
65mm (d) in chrome plated oil cylinder |
|
Main overall structure |
Equipment without sealed connections to reduce oil leakage points |
|
Mold heating temperature |
Room temperature -300.0℃/500.0℃ |
|
Holding time |
1 second~0 seconds |
|
Precision |
0.1℃ |
|
Insulation method |
Imported insulation board |
|
Cooling method |
Quick cooling with water cooling [optional water cooling machine] |
|
Die size |
Double plate heating 180*180mm (M*N) |
|
Workspace |
180*180*60mm |
|
Dimensions |
290*290*420mm (L*W*H) |
|
Power supply |
1000 W(220V/110Vcan be customized) |
|
Weight |
90 Kg |
|

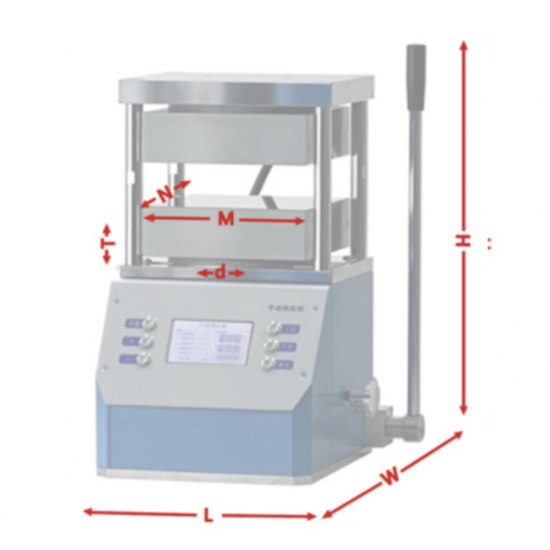

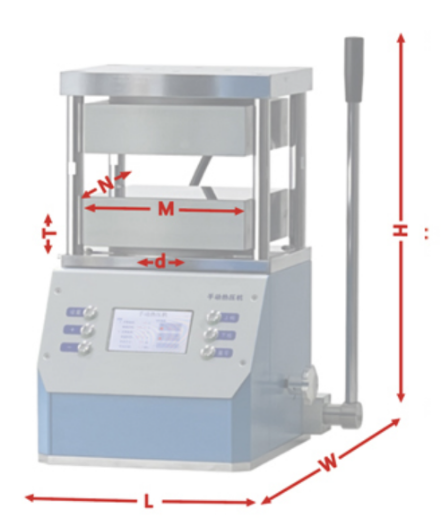

Dimensional diagram of powder tablet press |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
