Lab High Temperature 1500C Vertical Tube Furnace

Lab High Temperature 1500C Vertical Tube Furnace

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-1500vertical
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

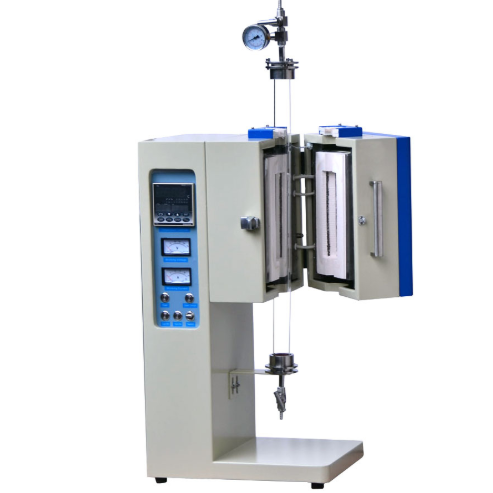

Lab High Temperature 1500C Vertical Tube Furnace



Detailed technical parameters

Model

VTL1700-I

VTL1700-II

Power

7.5KW

7.5KW

Tube size

Dia 60(OD) X1000 mm

Dia80(OD)X1000mm

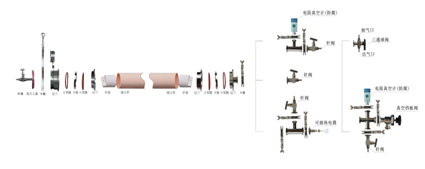

Flange and valve

Supply voltage

                                  220V/380V

Phase

                                 single phase

heating element

                            silicon carbide rod

Control mode

Use Yudian program temperature control instrument (standard)

1. 50-segment program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit will be automatically cut off when the temperature is over-temperature or when the couple is broken. ON, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected).

3. With 485 communication interface (standard with optional software)

4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is off.

5.The meter has the function of temperature self-tuning

(you need to pay extra for the replacement of imported instruments, optional)



FP93 instrument                              EUROTHERM instrument                     Touch screen instrument

(shimaden, Japan)

Furnace material

 1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Formed using Japanese technology.

Control accuracy

                                          +/- 1℃

Trigger

         Phase shift trigger (with soft start and current limiting)

Electric appliance

                                      Zhejiang chint

Silicon controlled

                                 106/16E SEMIKRON

Max. temp

                                           1500℃

Rated temp.

                                           1450℃

Heating rate

                   ≤10℃/ Min(can be modified upon request)

Recommended rate of temperature rise

                                    ≤5℃/ Min

Thermocouple Type

                                          S

Heating section length

                                      390 mm



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
