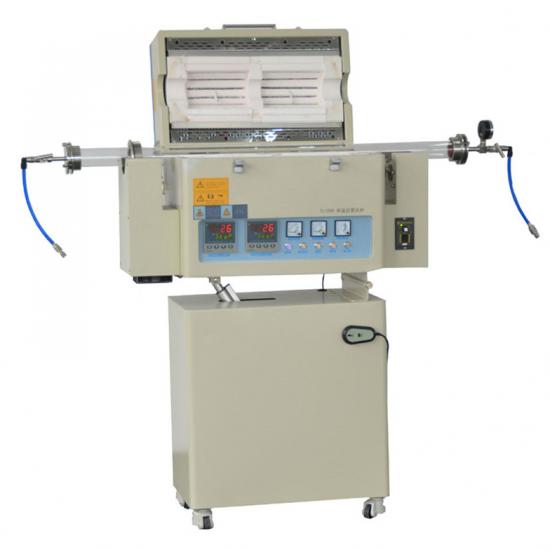

Lab High Temperature 1500-1500C Dual Zone Rotary Tube Furnace

Lab High Temperature 1500-1500C Dual Zone Rotary Tube Furnace

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-1500-1500Rotary
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Lab High Temperature 1500-1500C Dual Zone Rotary Tube Furnace

Detailed technical parameters

Model

              1500-1500-I                                                     1500-1500-II

Power

                  9KW                                                                   9KW

Tube size

        Dia 60(OD) X1400 mm                                     Dia 80(OD) X1400 mm

Supply voltage

              380V                                                                       380V

Phase

             dual phase                                                              dual phase

Tube

      Corundum tube: high purity AIO ceramics (including) 99.5%

Heating element

First temperature zone: silicon carbon rod                      Second temperature zone: silicon carbon rod

Furnace tube rotation speed

With stepless variable speed motor, the speed can be adjusted between (1-25 RPM)

Motor power

                                                        40W

The furnace can be tilted at an Angle

                                               0-30degree

Kind of drive

                                        Toothed belt and gear

Control mode

UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1520 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning


(you need to pay extra for the replacement of imported instruments, optional)



FP93 instrument                                  EUROTHERM instrument                              Touch screen instrument

(shimaden, Japan)

Furnace material


1. High quality high purity alumina polycrystalline fiber curing furnace formed by vacuum filtration.

2. Adopt Japanese technology for molding.

Control accuracy

                                                      +/- 1℃

Trigger

                                               Phase-shifted trigger

Electric appliance

                                                  Zhejiang chint

Silicon controlled

                                             106/16ESEMIKRON

The highest temperature in the first and second temperature zones

                                                  1500℃

Rated temperature in the first and second temperature zones

                                                 1400℃

Heating rate

                        ≤20℃/ Min(it can be modified as required)

Recommended rate of temperature rise

                                                  ≤10℃/ Min

Thermocouple

S type in the first temperature zone                                       S type in the second temperature region

Length of heating section in the first and second temperature zones

   300+300mm                                             300+300mm

Constant temperature length

 450mm                                                        450mm




Rotary Tube Furnace


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
