Lab Double Plate Electric Heating Die

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-PCH600
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

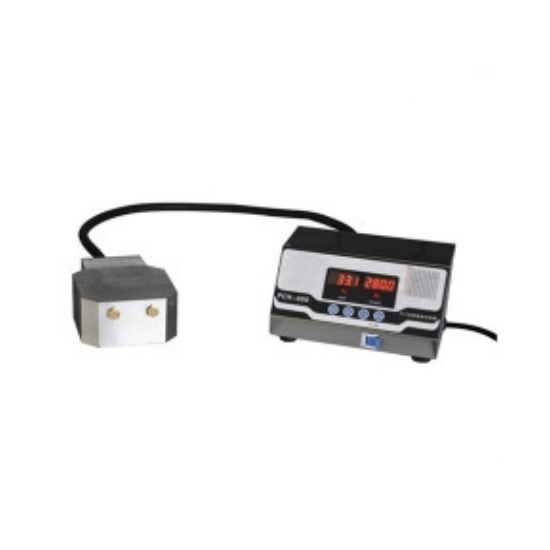

Lab Double Plate Electric Heating Die

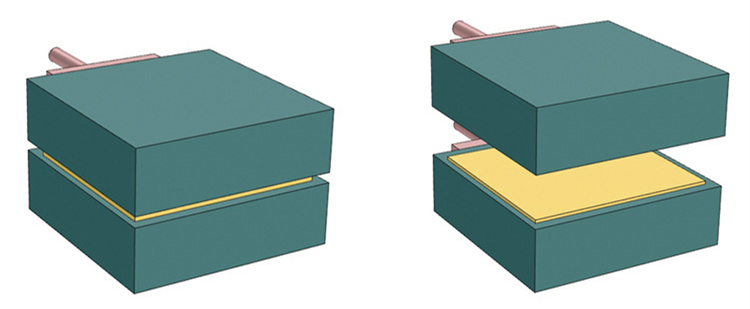

Double plate electric heating die is an electric heating die composed of two heating plates. The sample is placed between the two heating plates and heated directly by the temperature controller. The high temperature of the mould can reach 300 ℃, and the thickness of the pressed film is 50um-500um. It is suitable for the study of polymer materials and other film materials, and can be used as a small flat vulcanizer. It is suitable for rubber, plastic, leather, chemical industry, pigment, electronic appliances, textile, hardware and other fields. It is a complete set of equipment for engineering and technical personnel of colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.

Standard configuration

Electric heating mold(customizable) 1 set

High temperature insulation board 1 set

Temperature controller 1 set

Optional

Hydraulic press machine

Water cooler→It is recommended to configure water-cooled machine if rapid cooling is required after mold heating.

Specifications

Shape of compressible sample	Shape self-assessment: two square plates are heated, and the sample is placed in the middle of the two plates for heating or pressurizing

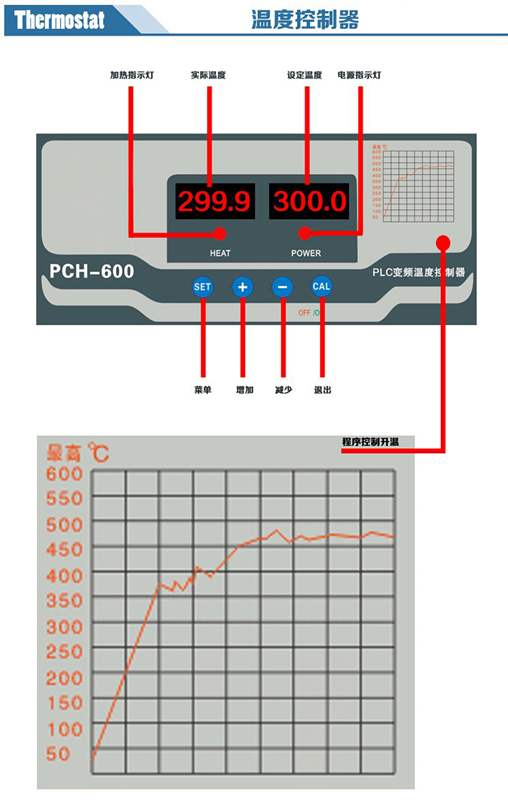

Thermostat type	PLC program temperature controller, room temperature - 600.0℃, accuracy 0.1℃
Mold heating temperature	Room temperature - 300℃
Mold heating size	100×100mm or 180×180mm
Die material	Alloy tool steel: Cr12MoV
Die head hardness	HRC60-HRC62
Mold Dimensions	100×100×120mm or 180×180×130mm
Mold weight	8kg or 32kg
Standard configuration	2 sets of flat heating mould + 1 set of high temperature heat shield + 2 sets of intelligent temperature controller (hydraulic press and water cooler are optional)
