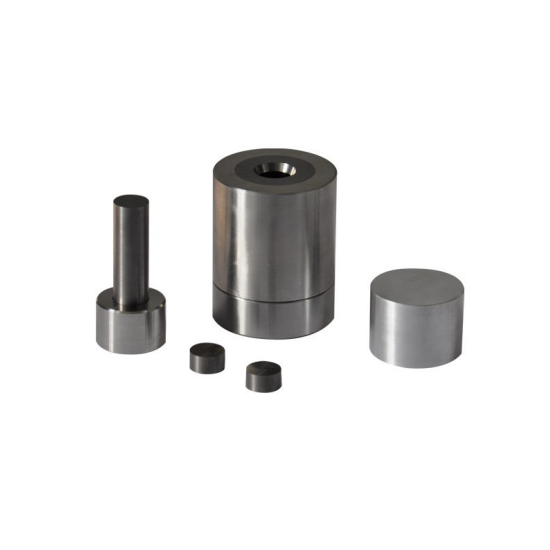

Lab Cylindrical Cemented Carbide Mold

Lab Cylindrical Cemented Carbide Mold

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-CCCM
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

Lab Cylindrical Cemented Carbide Mold


Cemented carbide molds are also called tungsten steel molds and tungsten carbide molds. Cemented carbide is an alloy material made of hard compounds of refractory metals and bonding metals through powder metallurgy. Cemented carbide has high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance and other properties, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500 ℃. It still has a high hardness at ℃ and is known as "industrial teeth". It is used to manufacture cutting tools, knives, cobalt tools and wear-resistant parts, etc., and is widely used.


Specifications

Name

Cemented carbide mold

Actual drawing of molding sample

 cylindrical cemented carbide mold


Compressible sample shape

Round slices, cylinders, etc.

Common mold specifications

Φ3Φ5Φ6Φ8Φ10Φ13Φ15Φ18Φ20Φ22Φ25Φ30mm

Mold material

Cemented carbide: YT15

Hardness of die indenter

HRC85-HRC90

Sample size (≤)

Ф3-Ф13mm

Ф12-Ф20mm

 Ф22Ф30mm

Ф31-Ф40mm

Mold cavity depth

30mm

40mm

45mm

--

Mould dimensions

Ф43×93mm

Ф53×120mm

Ф73×133mm

--

Mould weight

0.78KG

1.8KG

3.8KG

14kg

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

Product Images

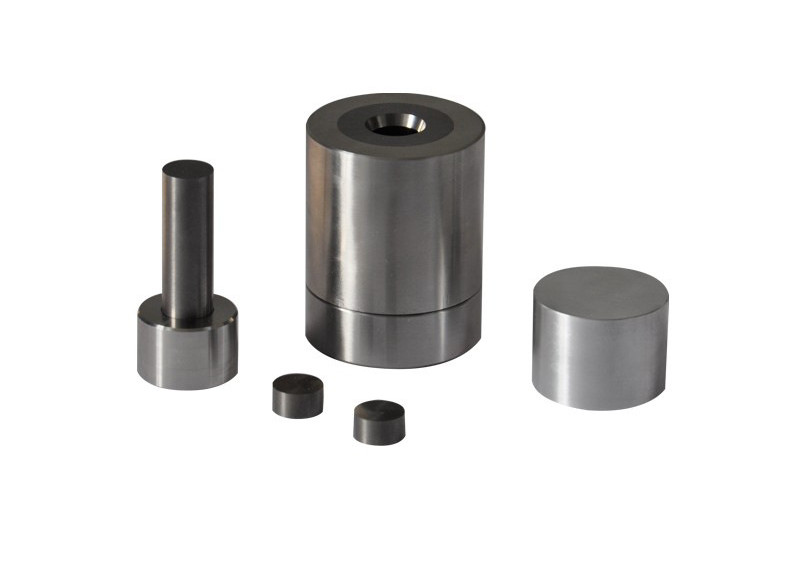

cylindrical mold

 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
