Item No.:
TMAX-PC-12JPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

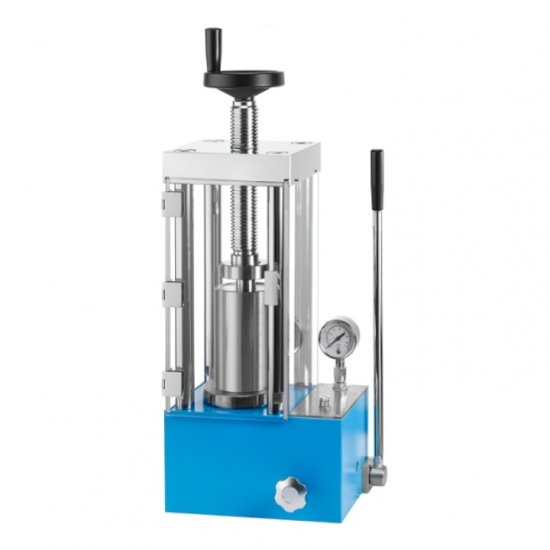

One year limited warranty with lifetime technical supportLab 12T Manual Cold Isostatic Tablet Press with Organic Glass Protective Cover
Cavity mold diagram
Cavity mold operation diagram
Operation procedure
Technical parameter
|
Instrument type |
PC-12J |
|
Pressure range |
0-12T(0-17MPa) |
|
Piston diameter |
Chrome-plated cylinder Φ95mm(d) |
|
Overall structure of the main body |
The equipment has no sealed connection, reducing oil leakage points |
|
Pressure gauge |
Dual-scale display of pressure and intensity |
|
Maximum piston stroke |
40mm(T) |
|
Protective cover |
Organic glass |
|
Ambient temperature |
10℃-40℃ |
|
Isostatic pressure |
0-300MPa |
|
Isostatic pressure cavity |
Φ22 x 70mm(MXN) |
|
Equipment weight |
90Kg |
|
Equipment size |
305x195x530(LXWXH) |
|

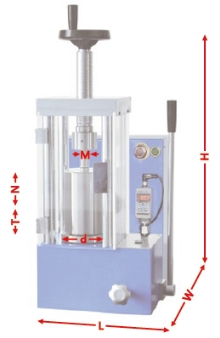

Powder tablet press size diagram |
|
Pressure conversion
Note: Generally, the system pressure should not exceed 35MPa; otherwise, it will affect the service life of the equipment.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
