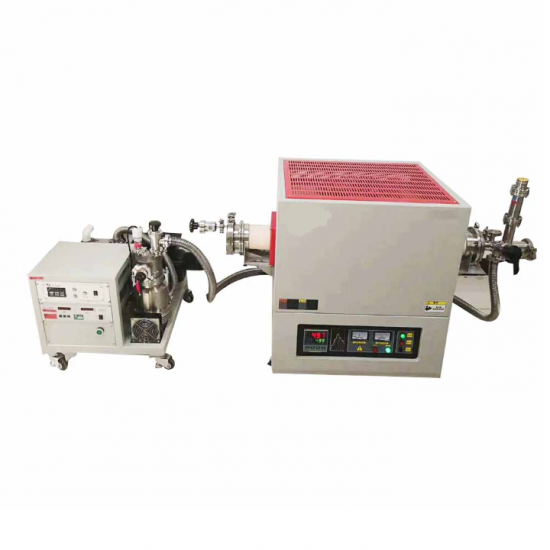

High Temperature 1400C Multi Zone Tube Furnace with Three Heating Section

High Temperature 1400C Multi Zone Tube Furnace with Three Heating Section

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-SK2V5-12-14TPT3
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

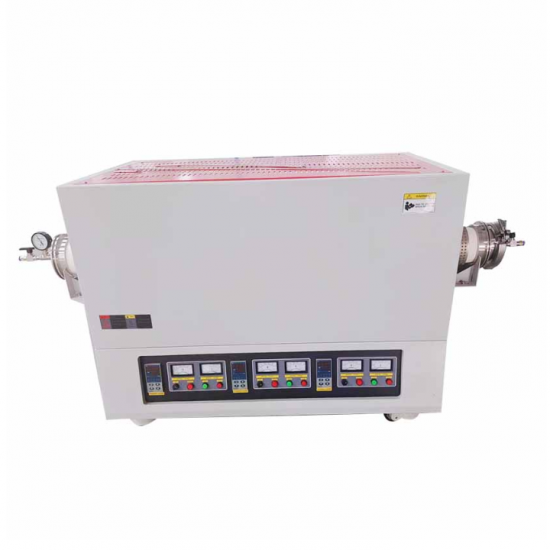

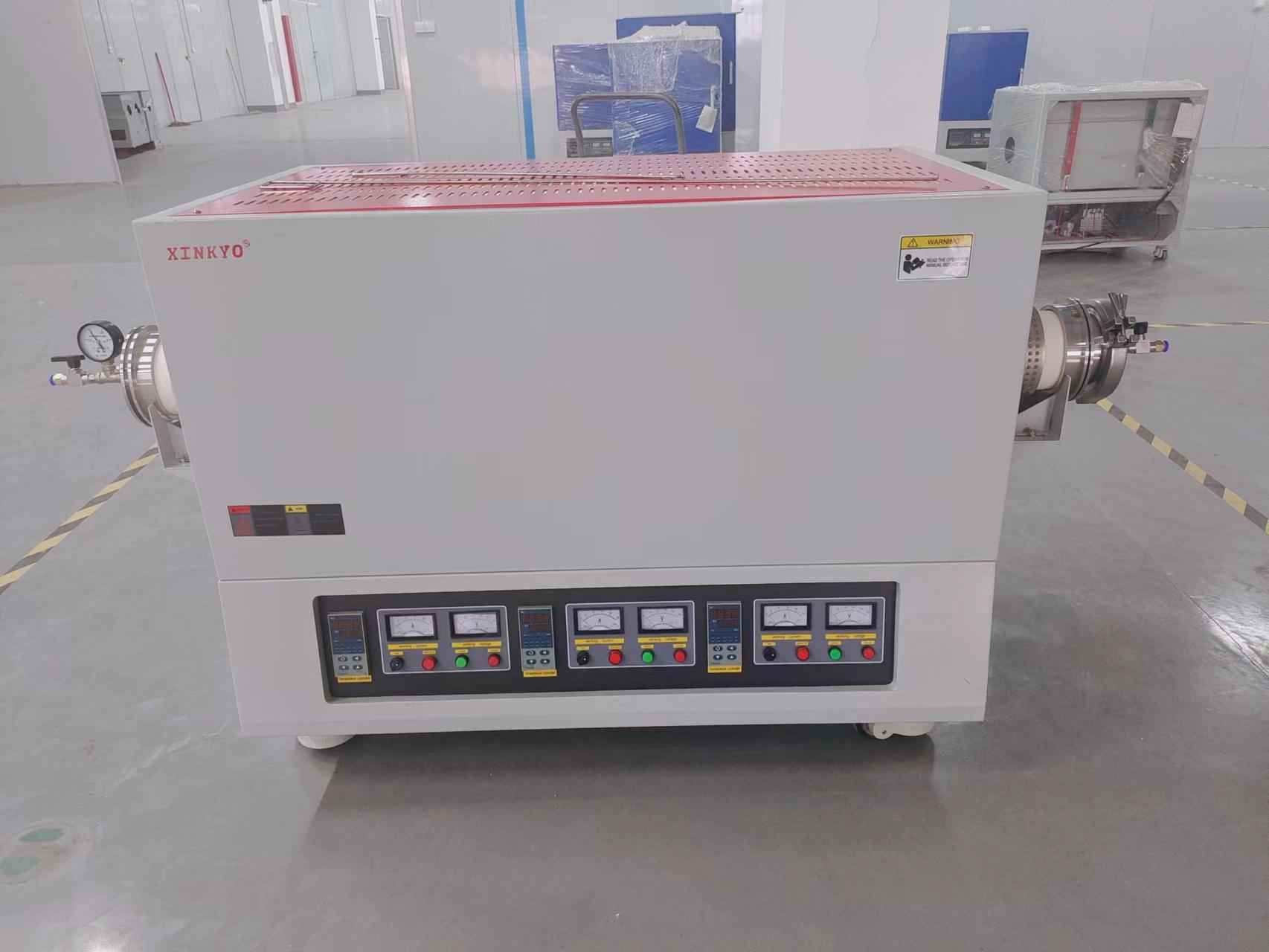

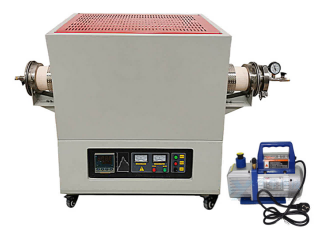

High Temperature 1400C Multi Zone Tube Furnace with Three Heating Section






Main parameter

PN: SK2V5-12-14TPT3

Max.Temp: 1400C

Working temperature:0-1300C

Tube diameter:80mm

Tube heating zone length:200+200+200mm

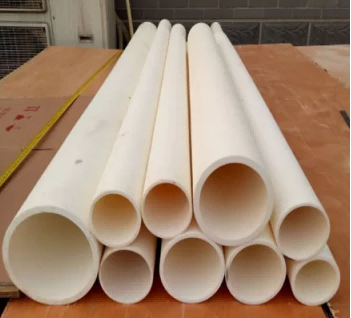

Tube material:Alumina tube

Heating rate:0~10 Degree/Min

Max.vacuum:10-5pa

Heating element:Sic heater

Thermocouple:S type

Temperature accuracy: ±1℃

Special design

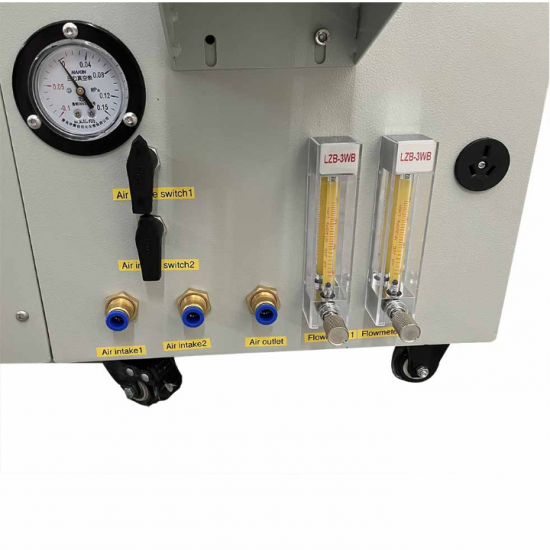

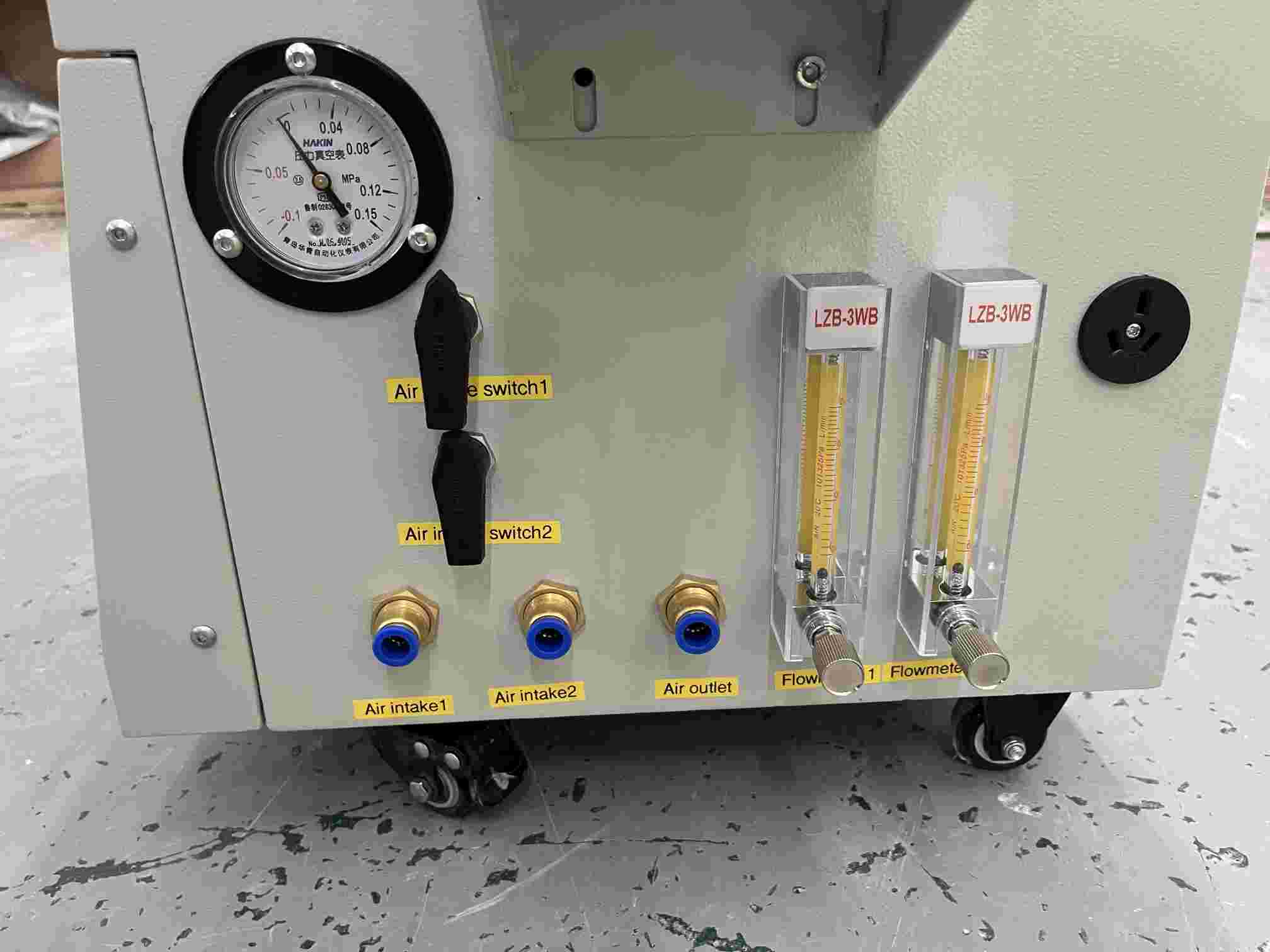

Add two float flowmeter air intake on furnace

Inlet gas/Atmosphere

It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc

Gas control

The air inlet can be set up 1 or more air intakes, each air inlet is provided with a ball valve, connected with a vacuum gauge. The air outlet is connected with one air outlet, and all holes are equipped with ball valves. Equipped with a vacuum pump.

Appearance design

The electric furnace adopts humanized design, beautiful and easy to operate, and the outer layer of paint is sprayed with high temperature baking technology. High temperature resistance, oxidation resistance, acid and alkali resistance. Color selection is aging resistant tone, will not cause the appearance color fade due to a long time of use.

Furnace Chamber material

Adopt the most advanced light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

 Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

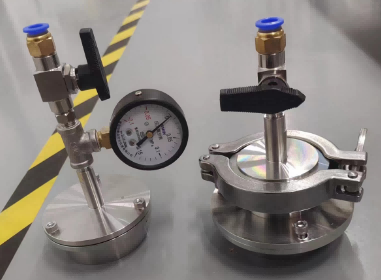

Sealing way

Adopt 304 stainless steel flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing

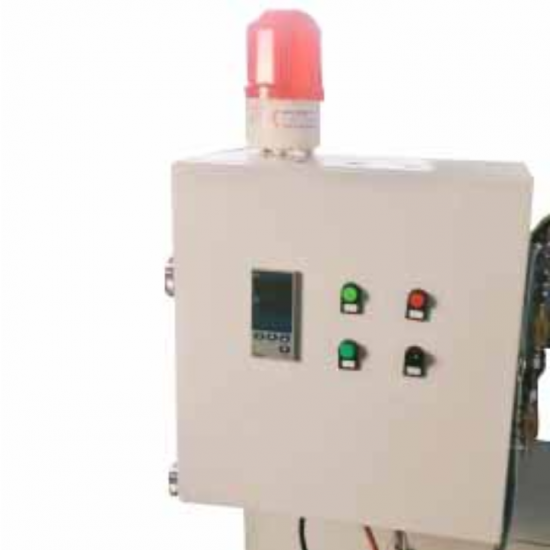

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

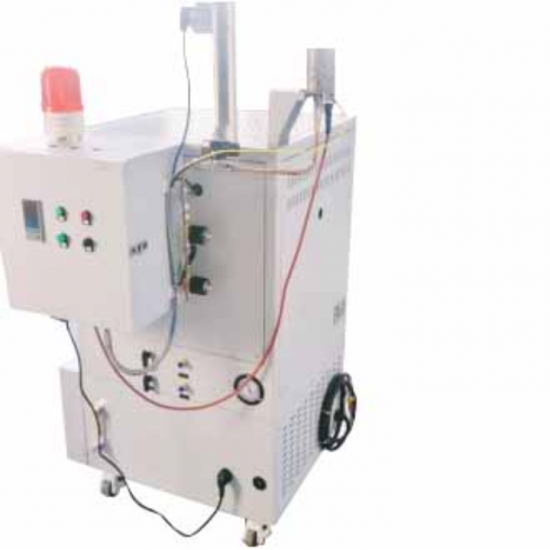

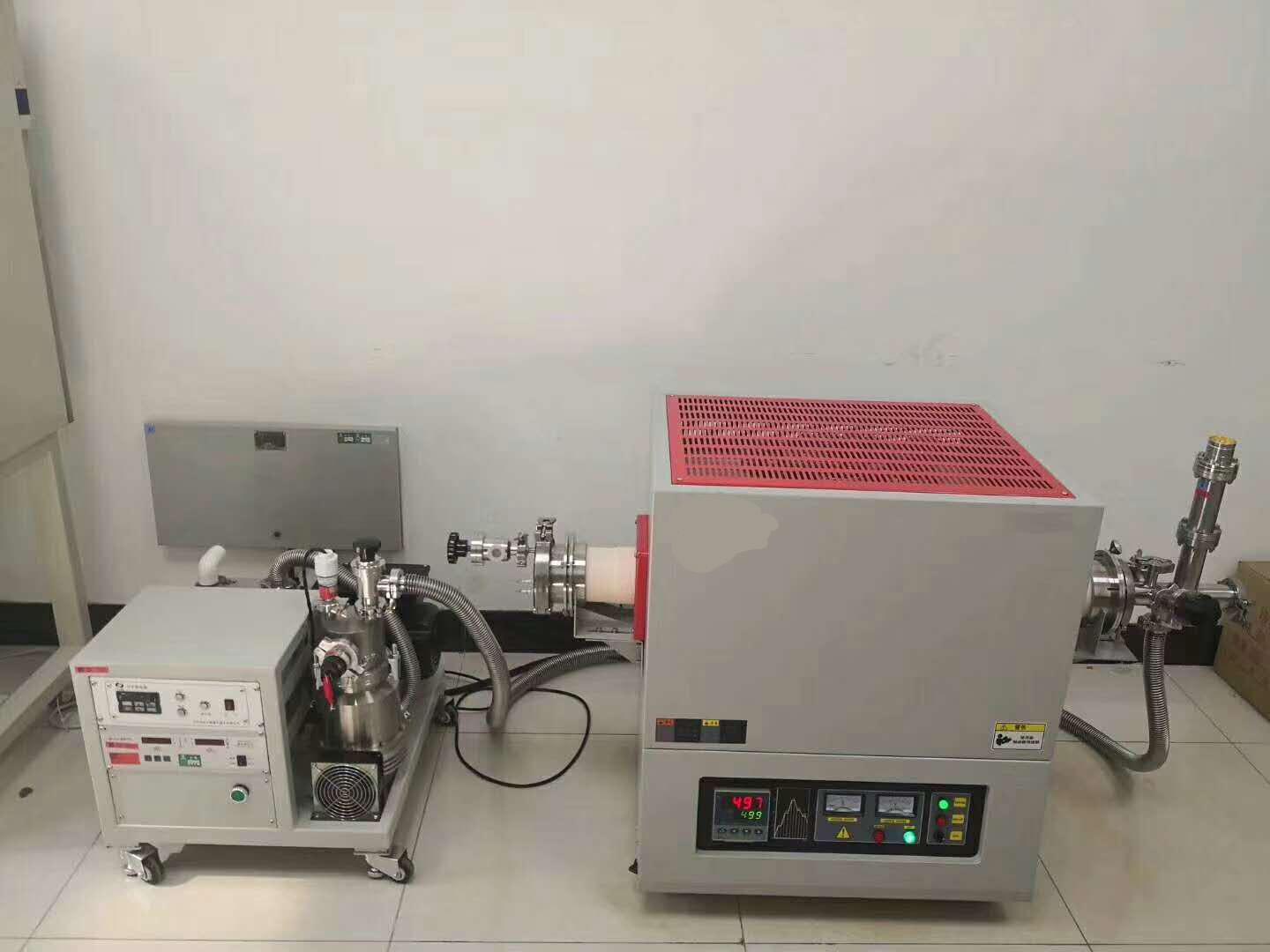

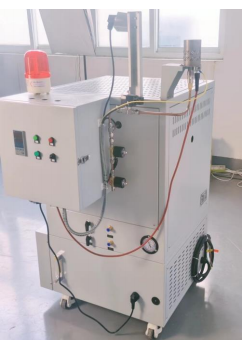

Vacuum system

Molecular pump unit:

Pumping rate:600L/S   Normal full load operation

Pumping speed of the front stage:9 L/S

Ultimate pressure:5×10-5 Pa   No load

Inlet diameter:KF50

Startup time:< 10 minutes

The total power rate:3 kW

Power source:380V

Digital display composite vacuum gauge



Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and ceramic tube damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Noted

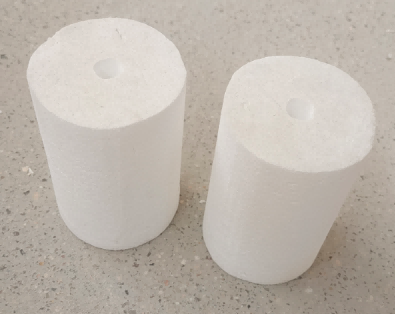

The corundum tube is not resistant to rapid cooling and rapid heating. It must be preheated before use, and ceramic blocks must be placed at both ends. During the heating and cooling process, the speed cannot be too high, and the air flow rate cannot be too large. It is recommended to be 150ml/min. Avoid uneven heating and breakage

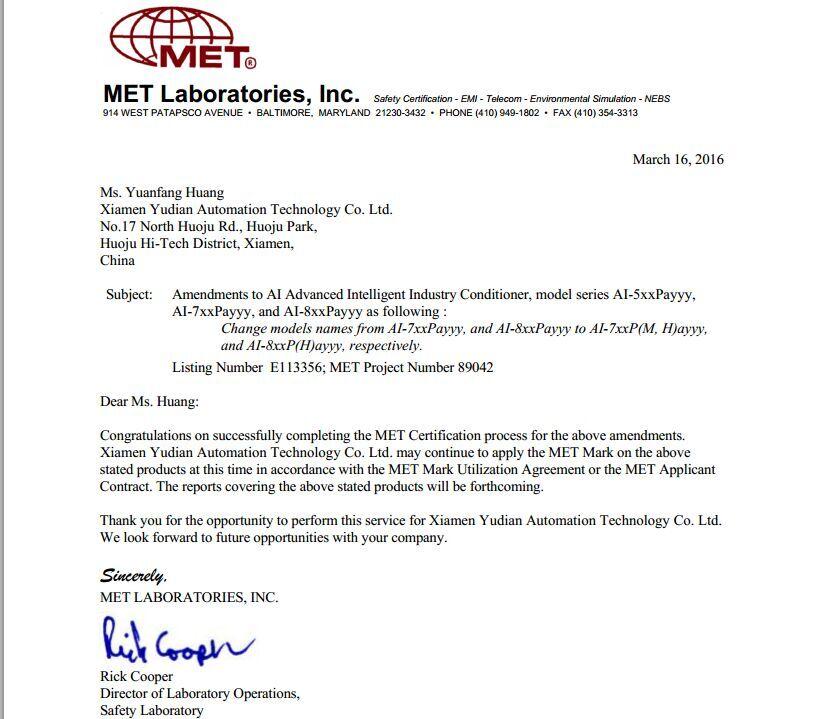

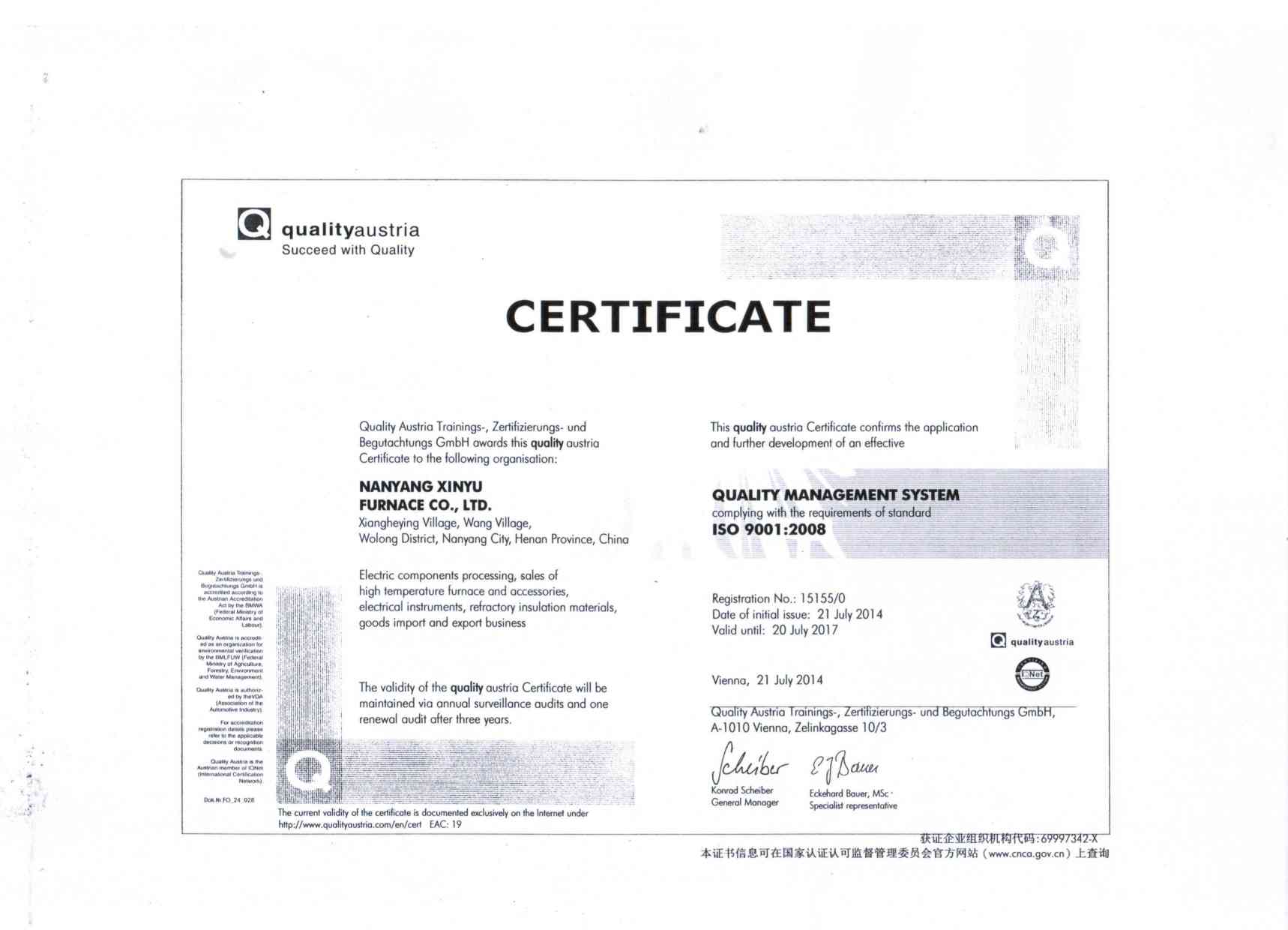

Certificates: CE,ISO&UL







Standard Package Accessories:

Electric Furnace

1 set





High temperature gloves

1 pair





Crucible hook

1 pc




Quartz tube

1 pcs





Stainless steel flange

1 set





Spare heating element

2pcs



Tube stopper

2pcs





10mm Air pipe







User manual

1 book





Vacuum pump

1 set





















 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
