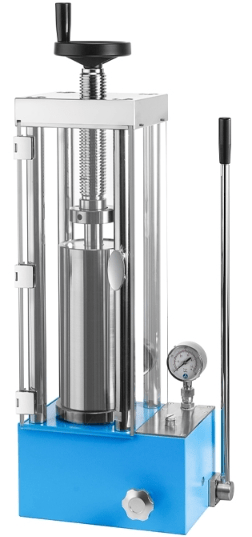

Four-column 40T 30MPa Digital Pointer Manual Isostatic Press Machine with Organic Glass Protective Cover

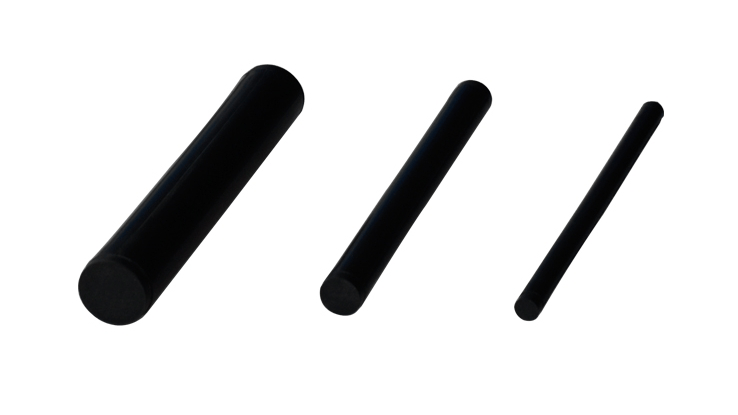

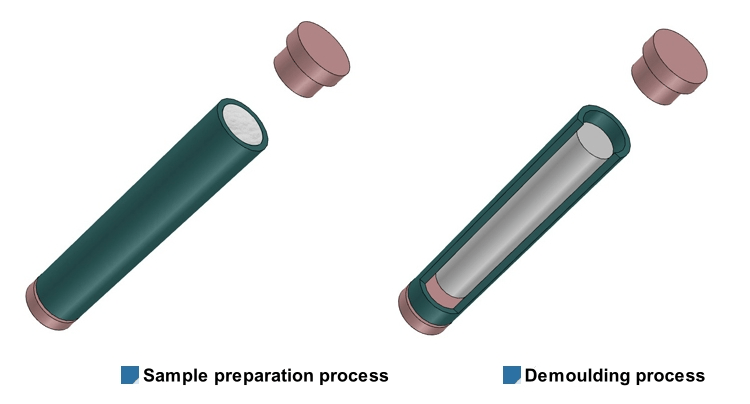

Cavity mold diagram
Cavity mold operation diagram

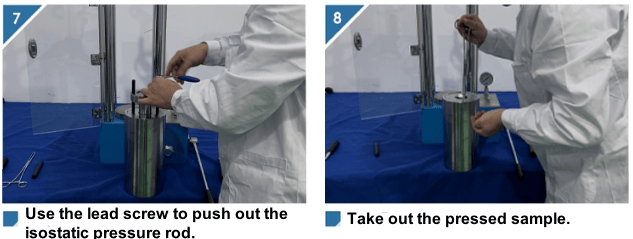

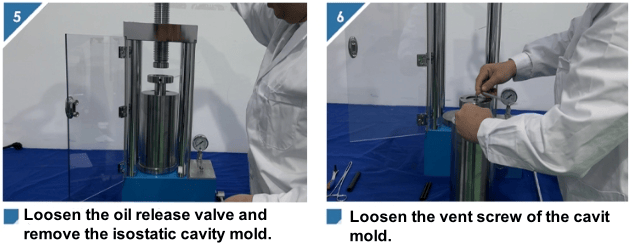

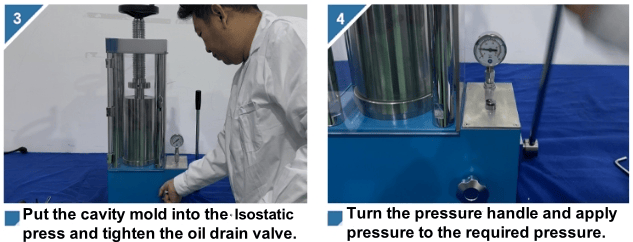

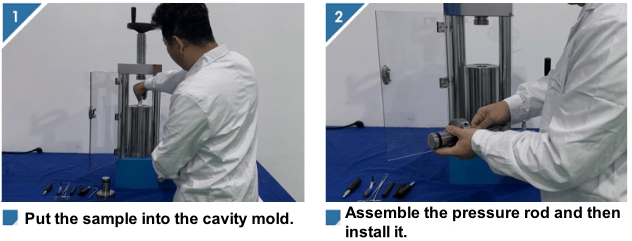

Operation procedure
Technical parameter
|
Instrument type |
PC-40J |
|
Pressure range |
0-40T(0-30MPa) |
|
Piston diameter |
Chrome-plated cylinder Φ130mm(d) |
|
Overall structure of the main body |
The equipment has no sealed connection, reducing oil leakage points |
|
Pressure gauge |
Dual-scale display of pressure and intensity |
|
Maximum piston stroke |
50mm(T) |
|
Protective cover |
Organic glass |
|
Ambient temperature |
10℃-40℃ |
|
Isostatic pressure |
φ40x150mm(MXN) 0-300MPa φ30x150mm(MXN) 0-500MPa |
|
Equipment weight |
130Kg |
|
Equipment size |
355x215x710(LXWXH) |
|

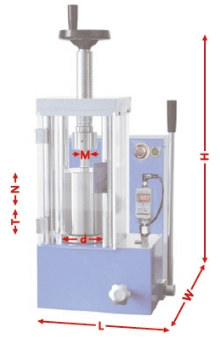

Powder press size diagram |
|

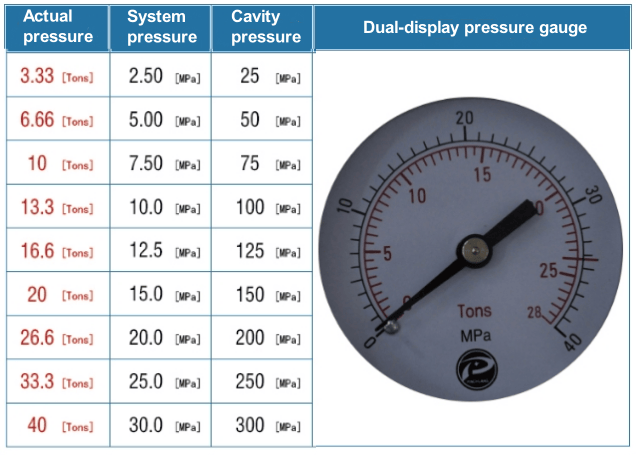

Pressure conversion
Note: Generally, the system pressure should not exceed 35MPa; otherwise, it will affect the service life of the equipment.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
