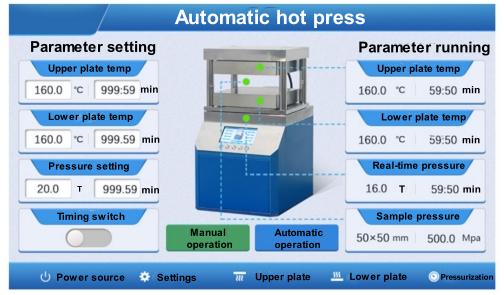

Operation interface (standard mode)

a. Standard interface: Various parameters can be set separately in this interface, like pressure, temperature, time, sample size, etc.

b. Press button: Press according to the parameters set on the interface.

c. Upper plate button: Start heating the upper plate according to the set temperature.

d. Lower plate button: Start heating the lower plate according to the set temperature.

e. Timing switch: The timing function can be turned on and off.

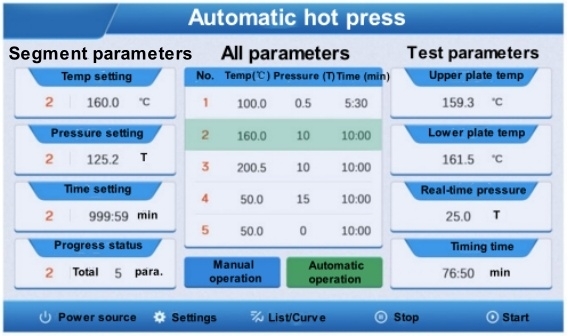

Operation interface (Automatic mode)

List/curve: it can swtich between the list and curve.

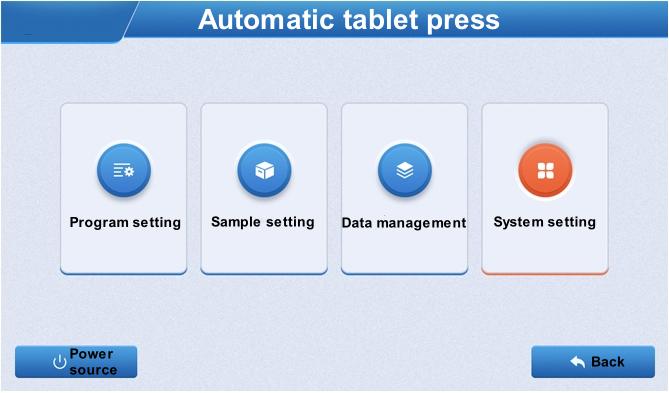

Setting interface

a. Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

b. Program Settings: you can set up multiple pressure procedures and pressure holding time.

c. Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

d. Data management: Previously saved data records can be invoked and modified..

e. System Settings: Administrators can set various parameters and the enter  password "666"

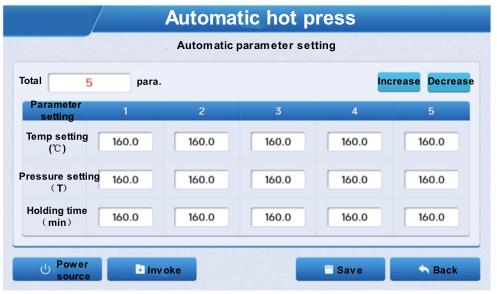

Setting interface

a. Multi-segment program setting, you can set the pressure program within 5 segments.

b. Invoke button, you can invoke the set parameters, to the automatic operation interface, applying pressure.

c. Save button, you can save the set parameters to the database, easy to call later.

d. Back button to return to the setting screen.
