1700C Two Zone Tube Furnace

1700C Two Zone Tube Furnace

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-1700-1700
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

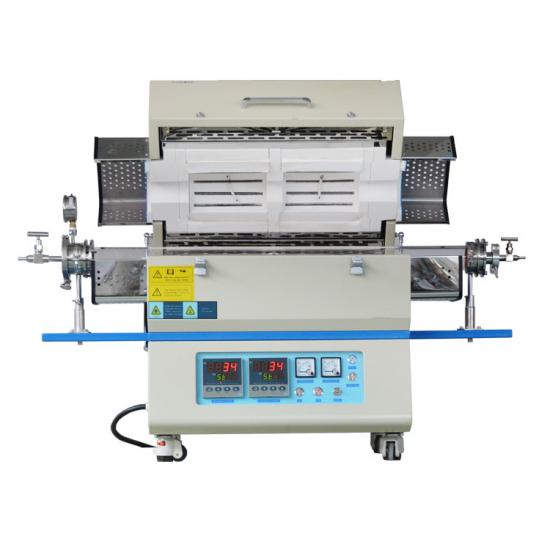

1700C Two Zone Tube Furnace


Parameters

Model

TL1700-1700-I

TL1700-1700-II

TL1700-1700-III

TL1700-1700-IV

Power

7KW

7KW

10KW

10KW

Tube size

Dia60(OD)X1250mm

Dia80(OD)X1250mm

Dia60(OD)X1300mm

Dia80(OD)X1300mm

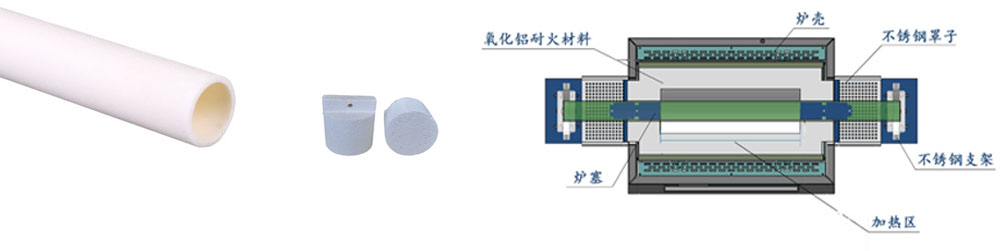

Two furnace plugs are placed on each side to block thermal radiation in the center of the furnace tube and must be placed in the correct position in the furnace chamber before heating.



The power supply voltage

220V/380V

Phase

Single

Heating element

Model 1800 silicon molybdenum bar

The control mode

Temperature control meter using Yudian program(standard)

150 - segment programmed temperature control intelligent PID adjustment.

2、It has overtemperature protection and broken couple protection. When overtemperature or broken couple, the electric furnace heating circuit is automatically cut off.(When the temperature of the electric furnace exceeds 1720 degrees or the thermocouple is burned OFF, the AC relay ON the main circuit will automatically disconnect, the main circuit will be disconnected, the ON lamp ON the panel will be OFF, the OFF lamp will be ON, the limited protection of the electric furnace).

3With 485 communication interfaceSoftware is available when purchasing

4With power off protection function, that is, after power off to start the furnace, the program does not start from the starting temperature, but from the starting temperature of the furnace when power off.

5The instrument has the function of temperature self-setting



Replace imported instrument, need to pay extra

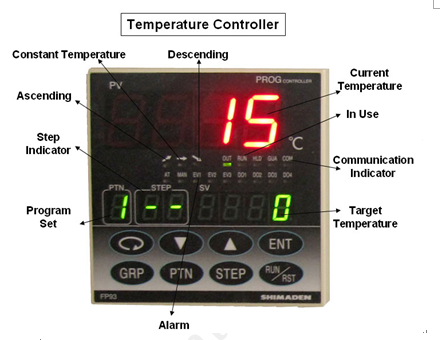

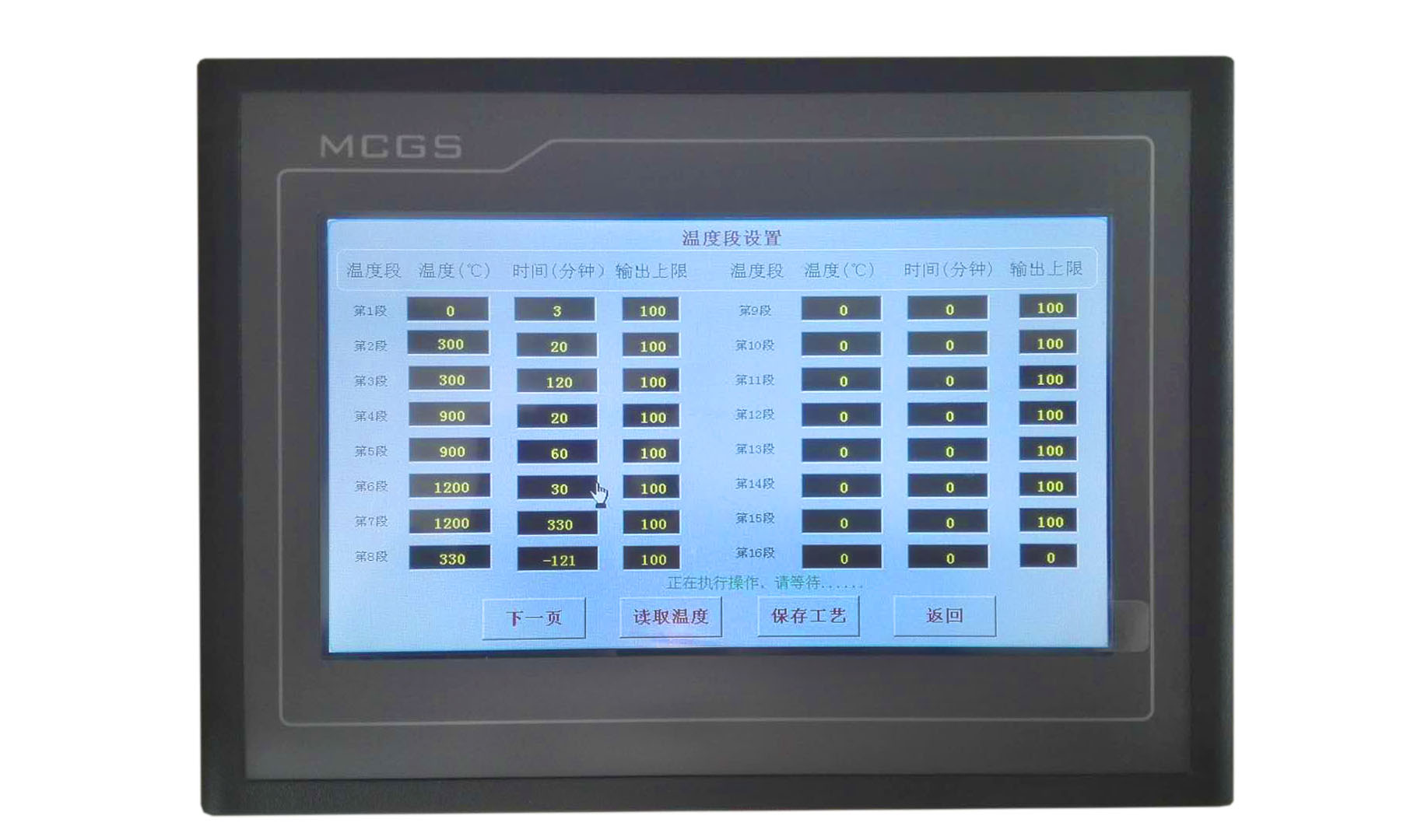

FP93 thermometer (Japan SHIMADEN) EUROTHERM instrument  Touch screen instrument

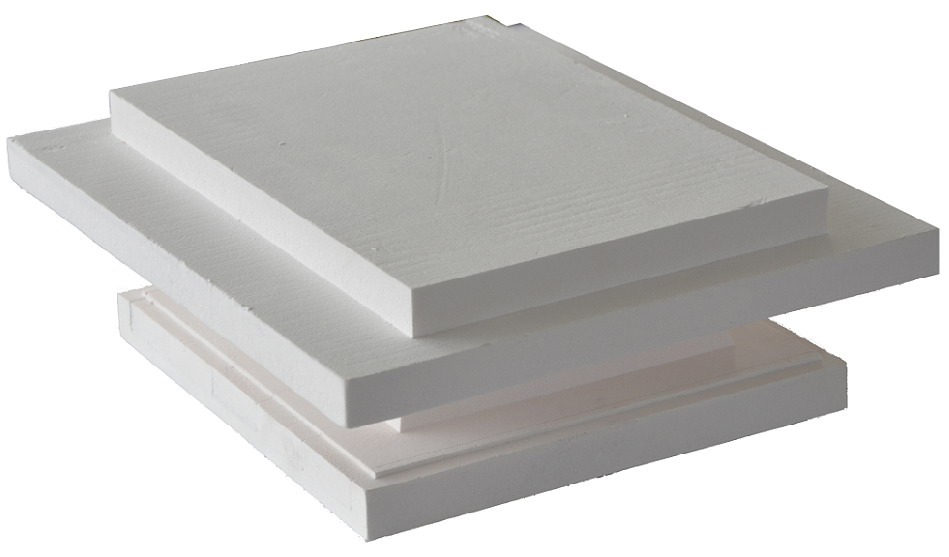

Chamber of a stove or furnace materials

1. High quality high purity alumina polycrystalline fiber curing furnace formed by vacuum filtration.

2. Adopt Japanese technology to form, do not drop slag, good heat preservation



Control precision

+/- 1 ℃

Trigger

Phase shift trigger

Electrical appliances



Zhejiang chint





Silicon controlled rectifier

106/16E Ximenkang, Germany

The highest temperature

1700 ℃

The rated temperature

1650 ℃

Heating rate

   ≤20 ℃/ Min It can be modified as required

Recommended rate of heating

  ≤10℃/ Min

Model of thermocouple in the first and second temperature zones

Type B

Length of heating section

210+210mm

Length of constant temperature section

250-300 mm

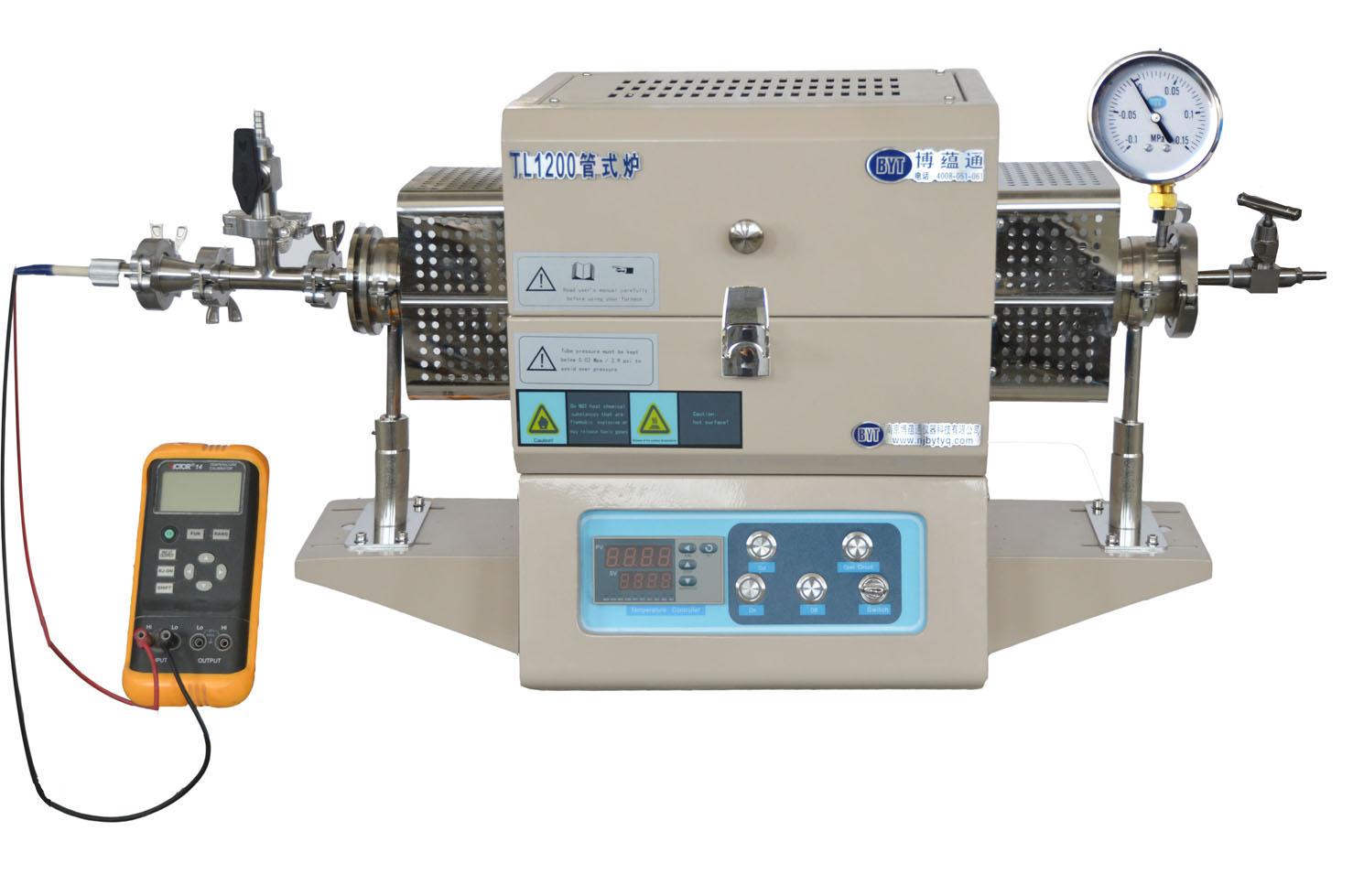

The temperature calibrationoptional

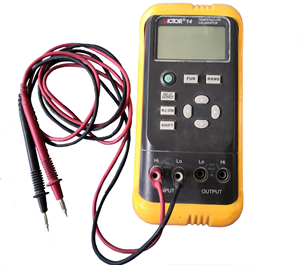

Regular temperature calibration of tube furnace can keep the accuracy and uniformity of furnace temperature. You can choose a simple calibration tool to assist you in this task. The complete calibration kit includes a standard thermocouple, a temperature calibrator, and a compensation conductor



Vacuum system

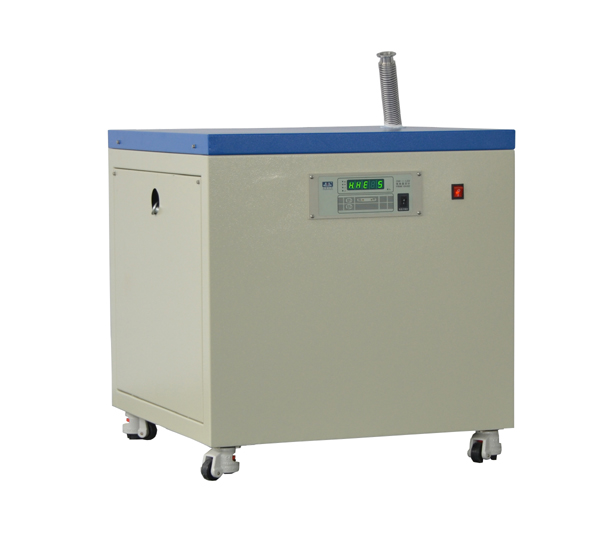

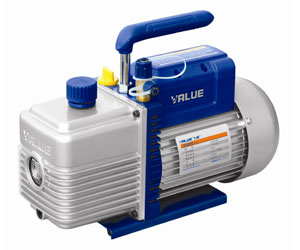

   1Single-stage pump TW-1.5A 2Double pump 2 xz - 2  3Vs-0.1 vacuum system





   4VS high vacuum system 5Constant pressure pump   6UK PCG550 (INFICON) capacitive vacuum gauge



1. Generally, the tw-1.5a single-stage pump is used to roughly vacuum and drive the gas out of the furnace tube.

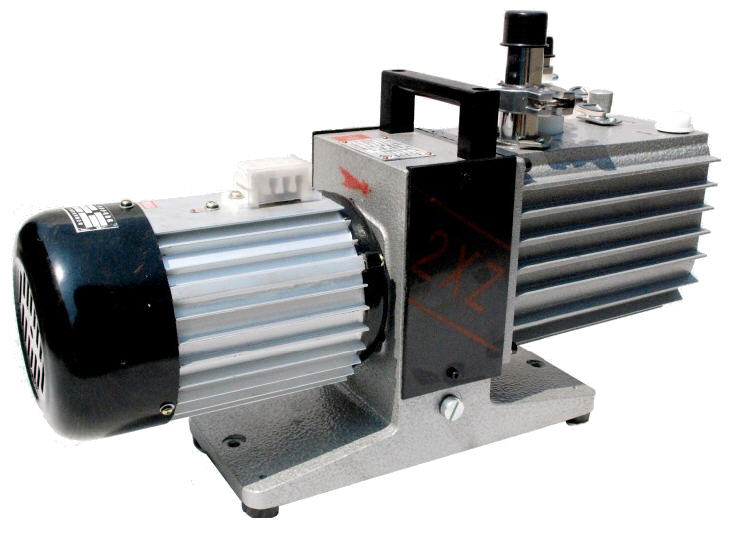

2. Two-stage pump 2XZ-2 vacuum pump can pump the vacuum of tubular furnace tube to about 10Pa.

3. Vs-0.1 vacuum system can pump the vacuum degree of tube furnace to 0.1Pa (with resistance vacuum gauge display).

4. VS high vacuum system (the system is composed of molecular and mechanical pump) can pump the vacuum degree in the tube furnace to 10-3 Pa.

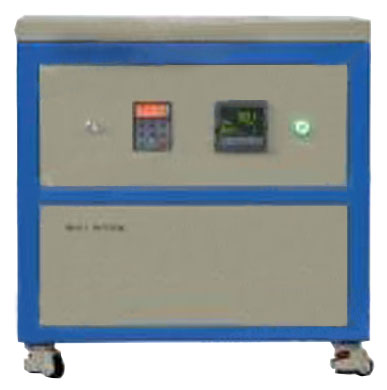

5. Constant pressure pump (the system can control the pressure in the tube at -100.0kPa ~ 100.0kpa).

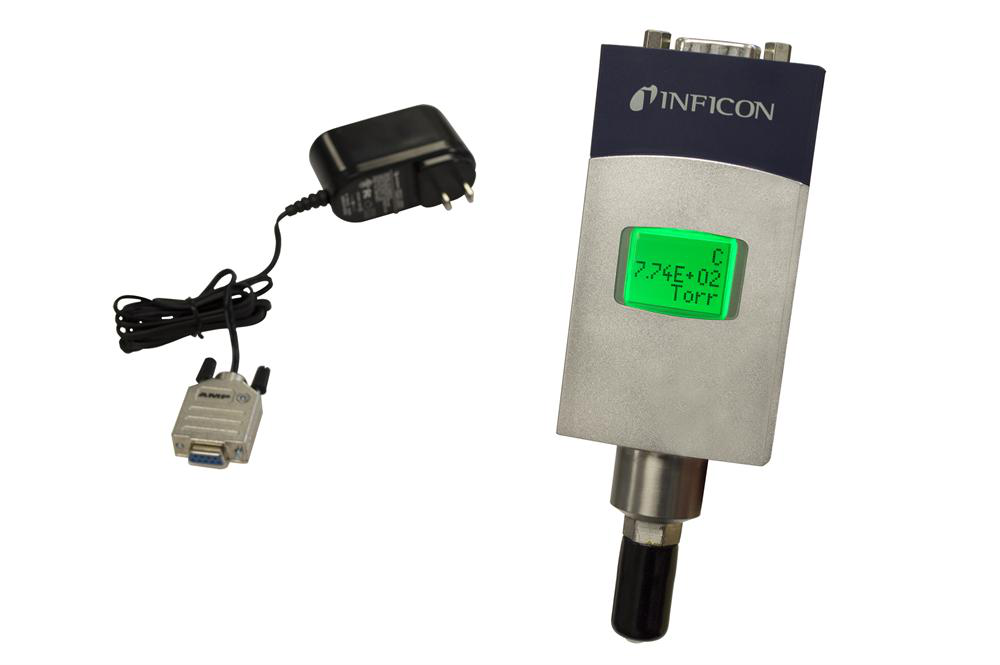

6. British (INFICON) capacitive vacuum gauge (measuring range: 3.8 x10-5-1125 Torr, can detect all kinds of gases, including mixed gases, accurate measurement, good repeatability, optional anti-corrosion type PCG554)

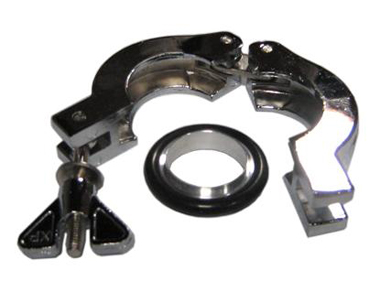

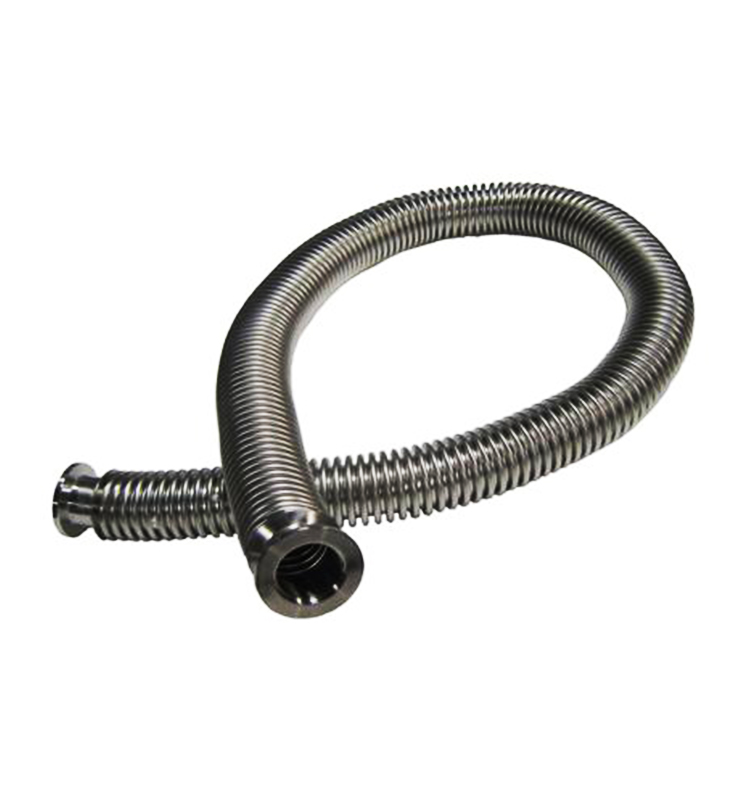

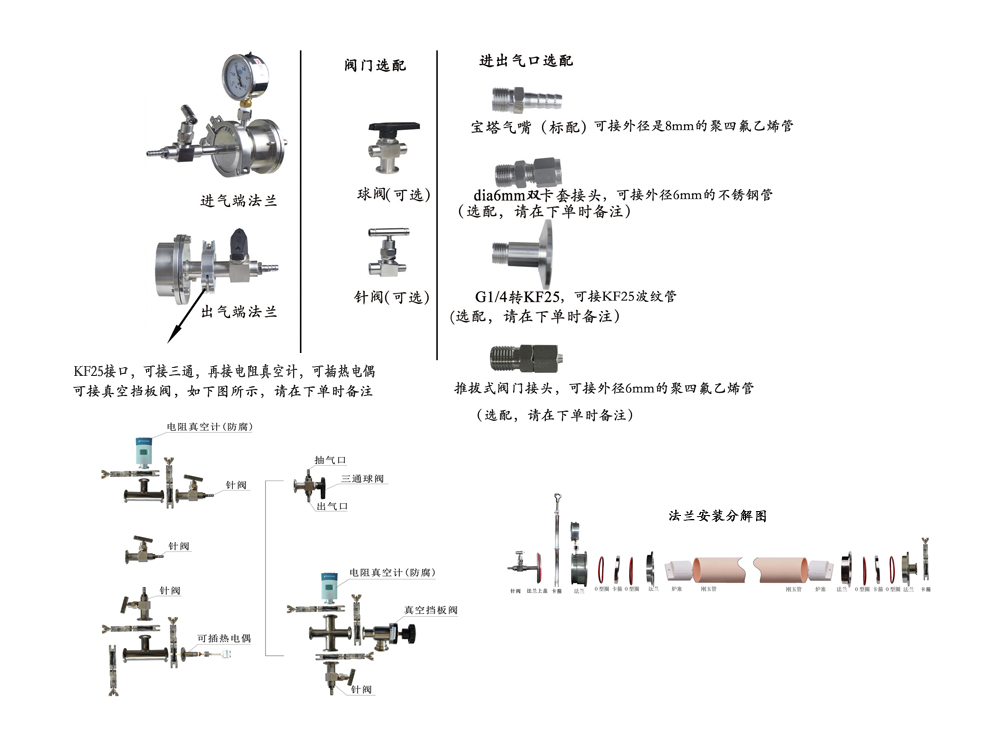

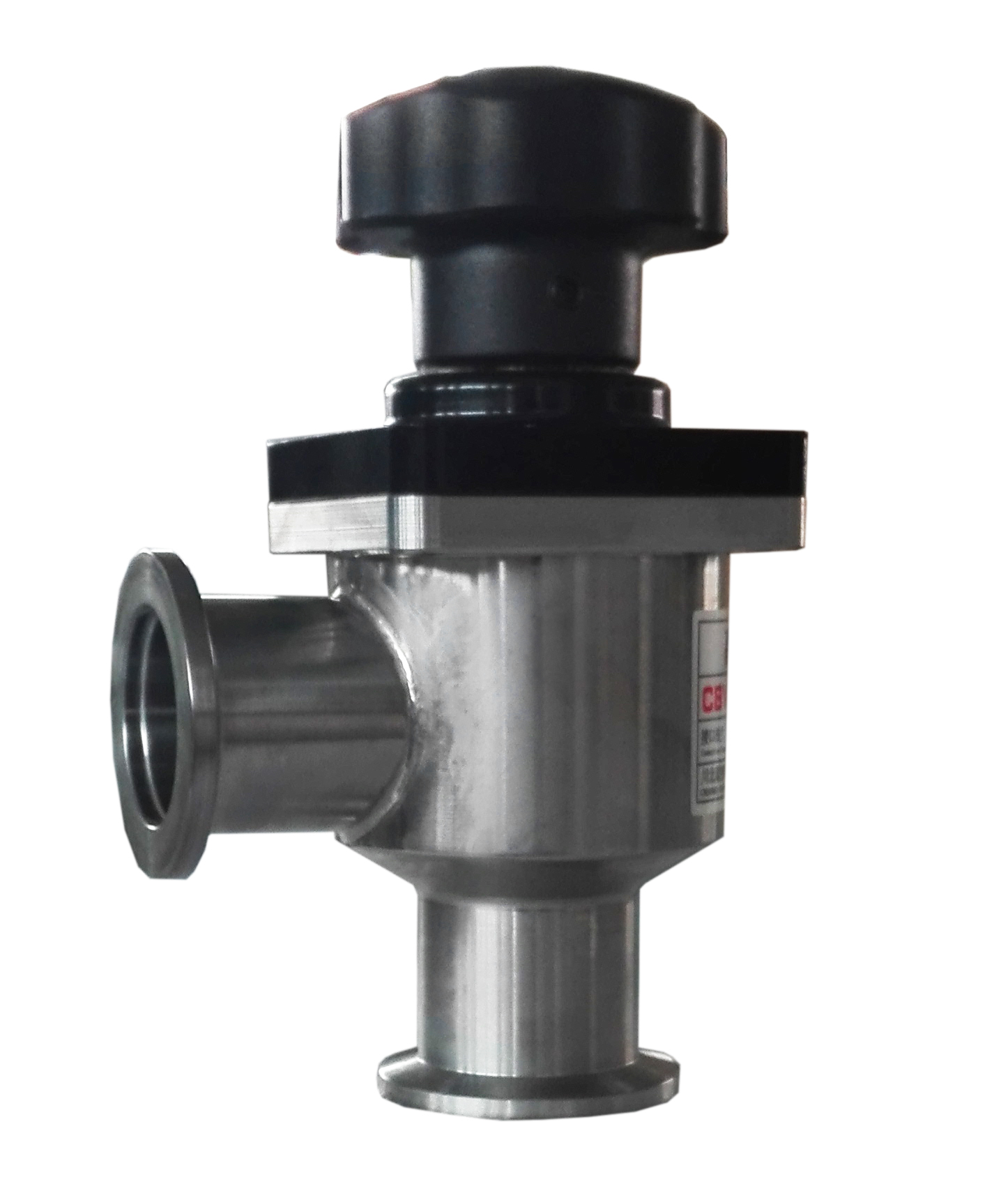

Valve and flange



Compliance

 CE

Ambient surface temperature

≤45℃





 Standard Package

Description

Quantity

Part image

Tl1700-1700 double - temperature tubular furnace

1 pc



Corundum tube

1pc





Stainless steel flange

1set



Stainless steel furnace hook

1 pc



Alumina furnace plug

2pairs



Thermal gloves

1 pair

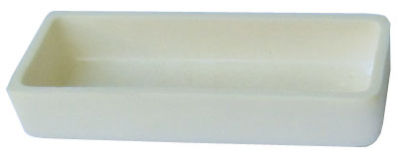

Aluminacrucible

1pc

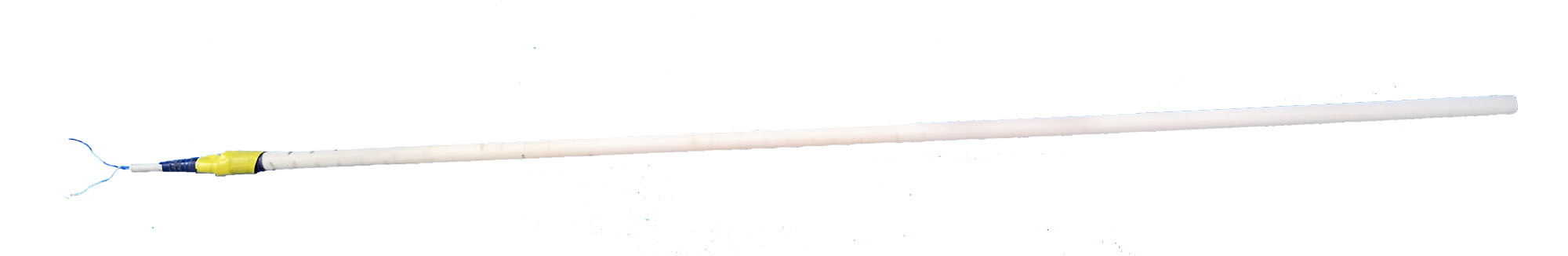

Model S thermocouple

2pc



COM to USB interface (optional)

1 set



two zone tube furnace


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
