16L/min Flow Lab Digital Temperature Controlled Recirculating Chiller

16L/min Flow Lab Digital Temperature Controlled Recirculating Chiller

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-KJ5300
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

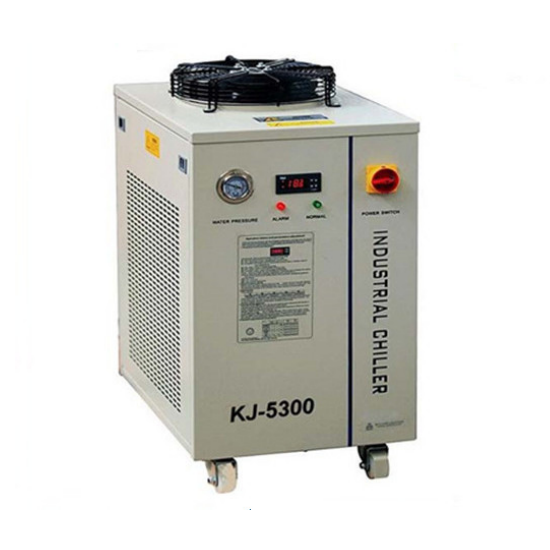

16L/min Flow Lab Digital Temperature Controlled Recirculating Chiller


TMAX-K5300 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 16L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy transport. Temperature range can be adjusted from 5 to 35°C.



Specification

Power Supply

AC 110V or 220V AC 50/60Hz ( please select in the options bar ).

Working Current

220V: 0.8~4.5A

110V: 1~6.5A

Compressor Power

0.6 KW (0.8HP)

Cooling Capacity

2000W (7000Btu/hour)

Refrigerant

R22/R410-a (650g)

Temperature Control

5~30 °C

Temperature Accuracy

± 0.3 °C

Heating Exchanger

Stainless steel

Water Pump Power

0.1KW

Water Flow Rate (Head Pressure)

16 Liter / minute    ( 25 meters high, 35psi )

Water Tank & Water

12 Liters made of stainless steel

Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.

Use coolant instead of water for longer service life.

Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.

Pipe Connectors

Φ12mm PTC connector

8mm I.D, 12mm O.D. polyurethane tube is included


Water Filter

One water filter is included for immediate use.

Replace water filter every 3 to 6 months based on water quality and usage. Please click pic below to order

Protection

Protected from over-temperature and Min 2 L/min water flow

Net Weight

50Kg

Overall Dimensions

59 X 38 X 74 cm

Shipping Dimensions

48" x 40" x 40"

Shipping Weight

250 lbs

Compliance

CE approval

MET Certification (UL 1450) is available upon request at extra cost, please contact our sales representatives for the quote.

Warranty

One year limited warranty with lifetime support

Application Notes

Must use Rust Protection coolants to prevent rust and corrosion.
. The use of tap water is prohibited.

Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction

Product Images

water cooler


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
