Φ11-20mm Lab Carbide Cylindrical Hydraulic Press Mold

Φ11-20mm Lab Carbide Cylindrical Hydraulic Press Mold

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-PMW-B
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

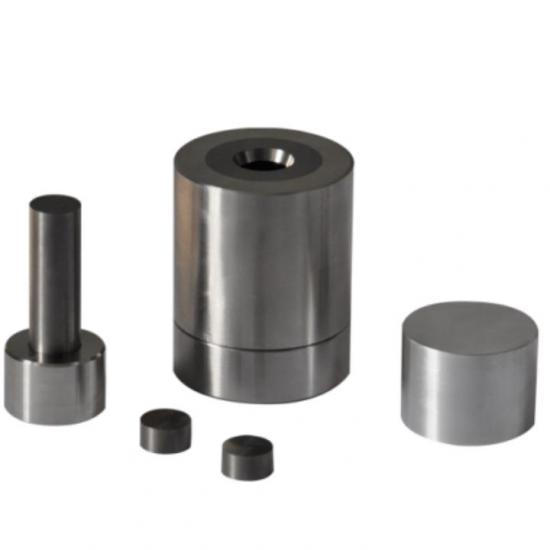

Φ11-20mm Lab Carbide Cylindrical Hydraulic Press Mold




Hydraulic Press Mold



Parameter

Model

TMAX-PMW-B

Compressed sample shape

Hydraulic Press Mold

Mold material

Carbide YT15

Indenter hardness

HRC85-HRC90

Sample size

Φ12Φ13Φ15Φ18Φ20mm(M)

Cavity depth

40mm(N)

Dimensions

Φ53*120mm(L*H)

Mold weight

1.8kg







Dimension diagram

Hydraulic Press Mold

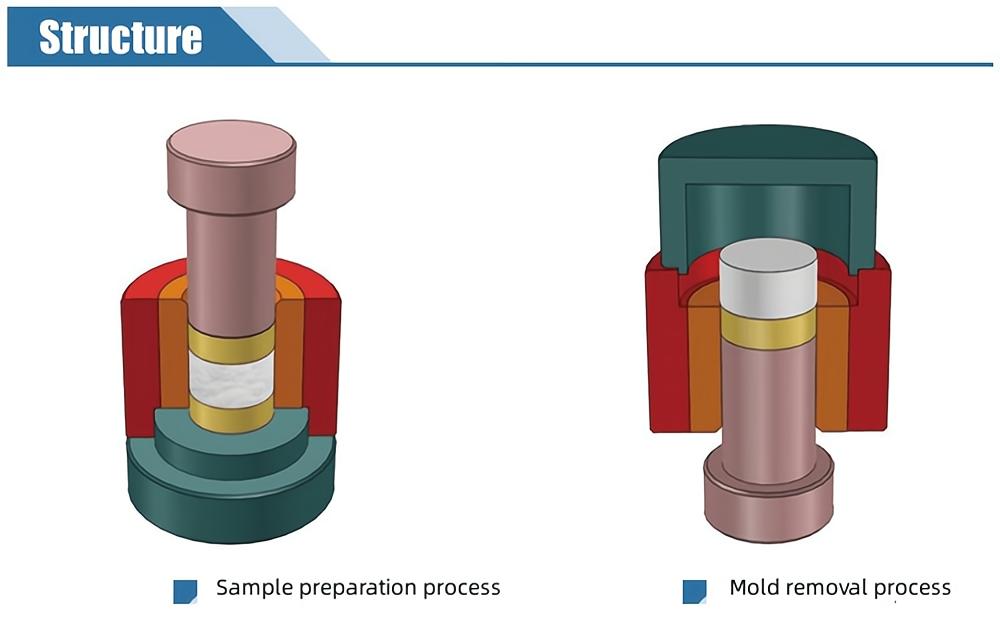

Schematic Diagram of Mold Operation

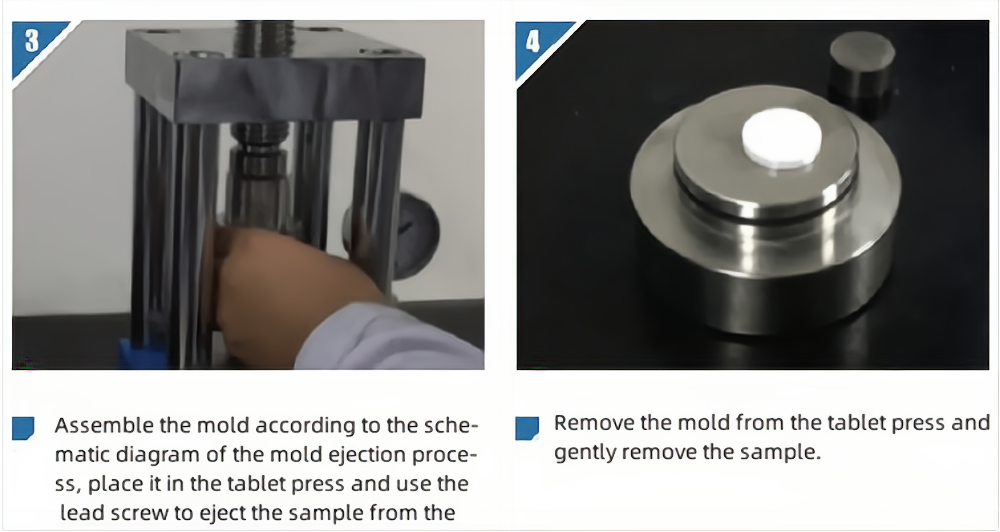

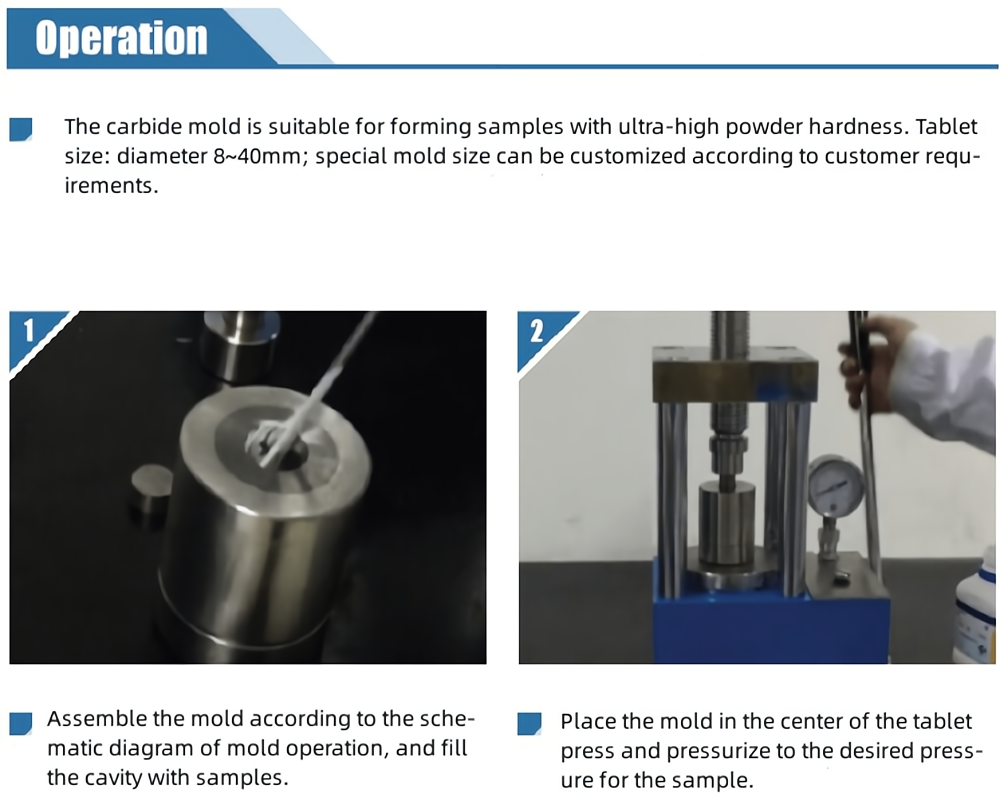

Mold sample preparation operation steps

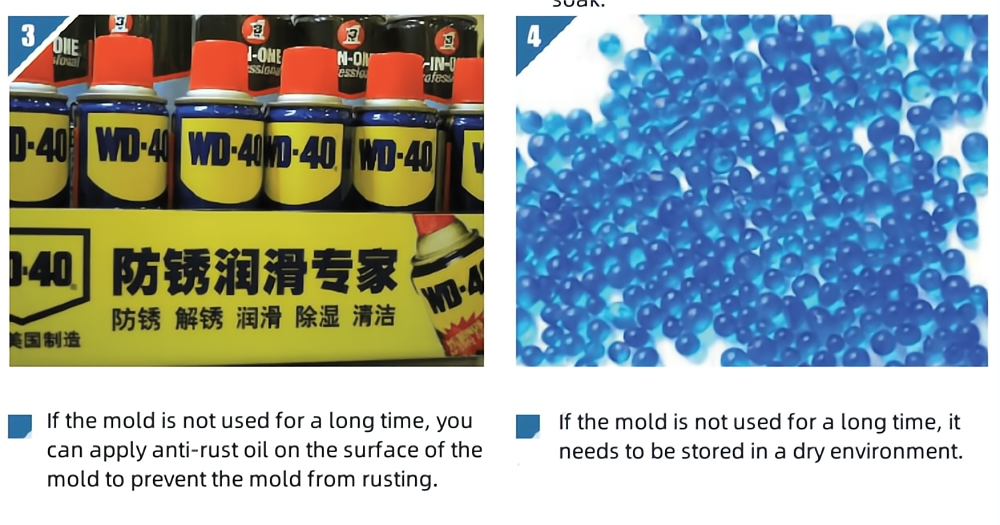

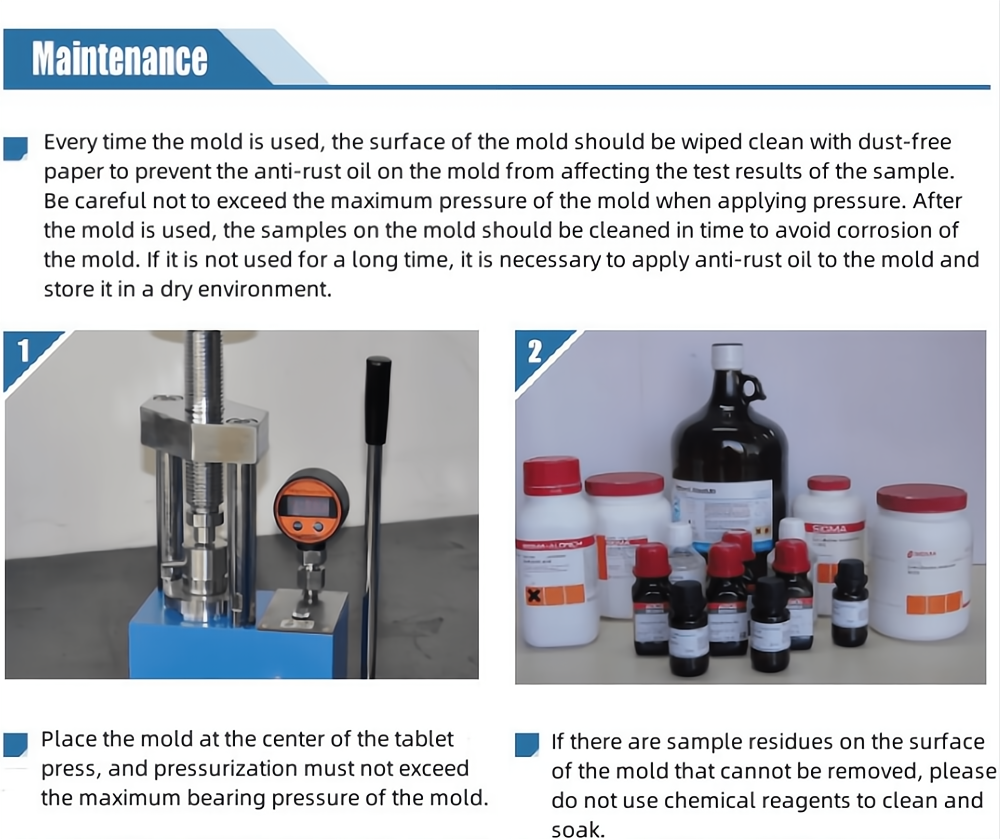

Mold use and maintenance


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
