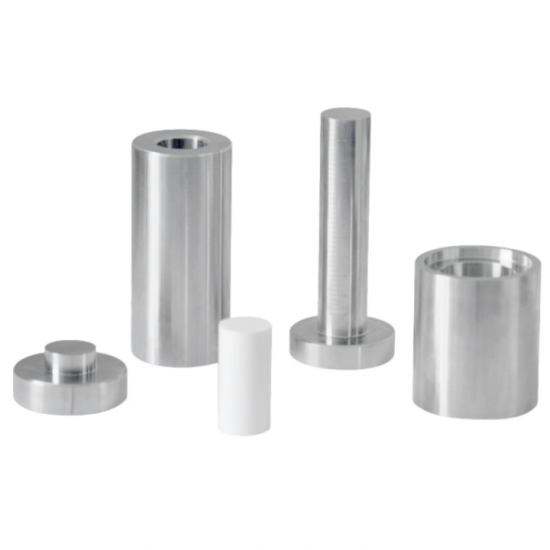

Φ10 to 20mm Alloy Tool Steel Cylindrical Mold with Scale

Cylindrical Mold with Scale

Application fields

We are a professional manufacturer of powder tablet presses and molds. Our tablet presses are small in size but have high pressure and high pressure control accuracy. They have been applied in various industries such as research, teaching, testing, pharmaceuticals, catalysis, and chemical engineering. In addition, this product can be used in conjunction with Fourier infrared spectrometers and fluorescence spectrometers for sample preparation, and can replace similar imported products.

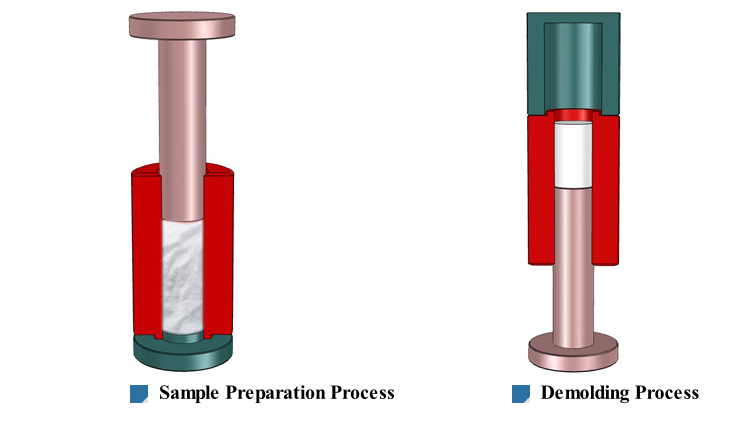

Mold Operation Diagram

Cylindrical Mold with Scale

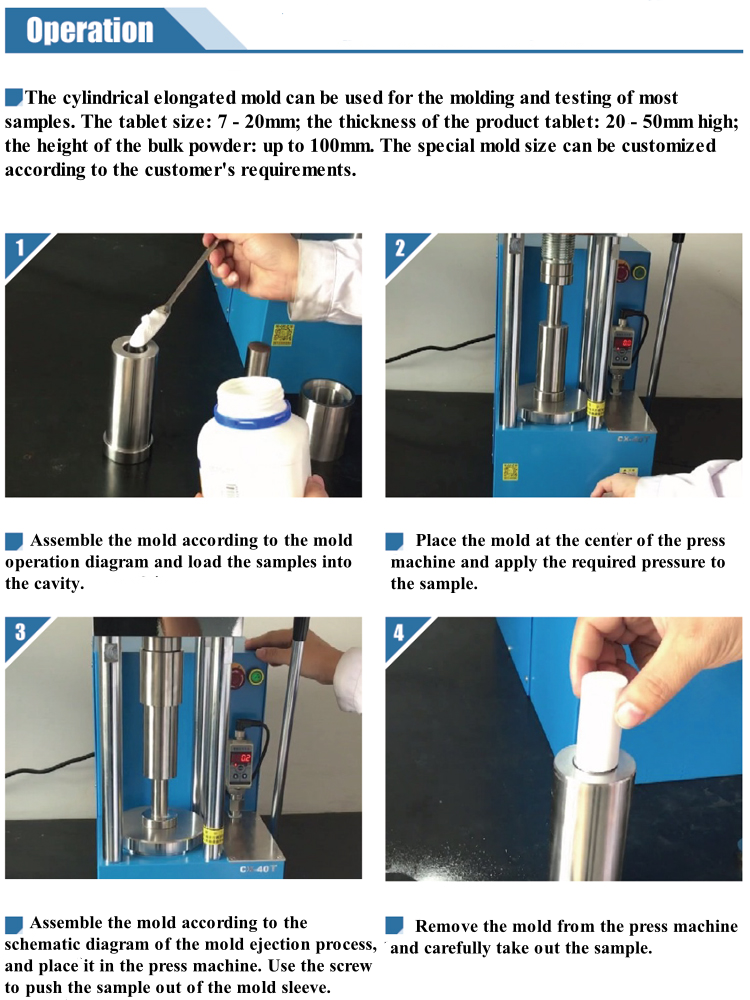

Operating Steps

Cylindrical Mold with Scale

Product Parameter

Instrument model	TMAX-PMC

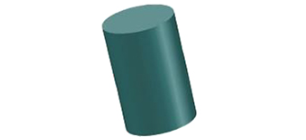

Sample shape
Mold material	Alloy tool steel: Cr12MoV
Indentation hardness	HRC60-HRC62
Sample size	Φ10、Φ12、Φ13、Φ15、Φ18、Φ20mm(M)
Cavity depth	100 mm(N）
Overall dimensions	Φ53×220 mm (LXH)
Mold weight	4.8kg

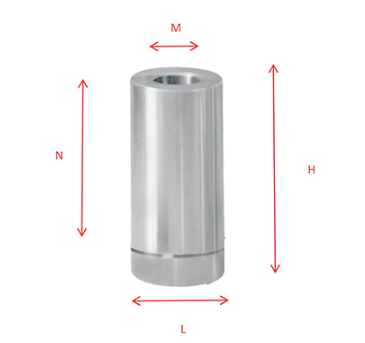

Dimension illustration
