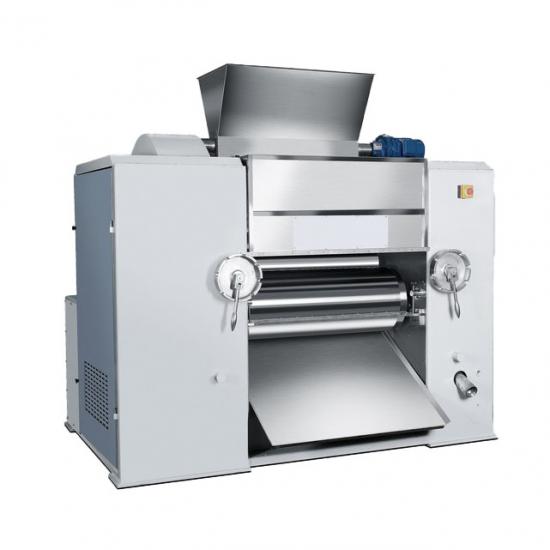

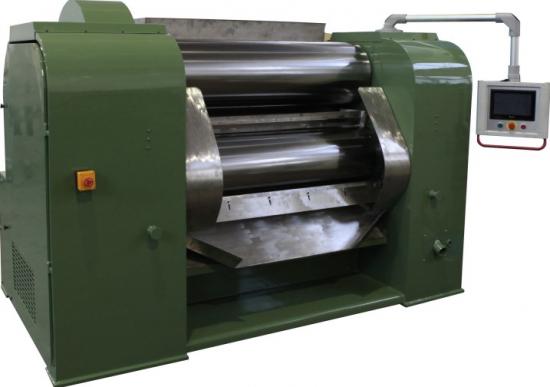

Vertical Three Roll Mill Designed for Materials with Poor Sticky Performance on Roller

The machine is a specially designed model for materials with poor sticky performance on rolls, such as powders like guar gum, soap tablets, ganoderma spore, tea seeds and other similar materials. The guar gum made by this machine can be improved with higher viscosity. The roll installation has changed from the traditional form of roll arrangement to the irregular upright form. The main working procedure is the following, the feed material is put in slowly from the top roll. Materials move down to the central roll for the first grinding. Then materials go down to the fast roll for the second grinding. Even if the material drops from the central roll, it will automatically return to fast roll for second grinding. Thus, it ensures the full grinding. Besides, material discharge is from the bottom which greatly reduces dust. If the customer needs to install the conveyor belt for material feed or material discharge, it will be available. The machine can be hydraulic type or manual type. This machine has been protected by Chinese patent and received high evaluations from our customers.

 SPECIFICATIONS:

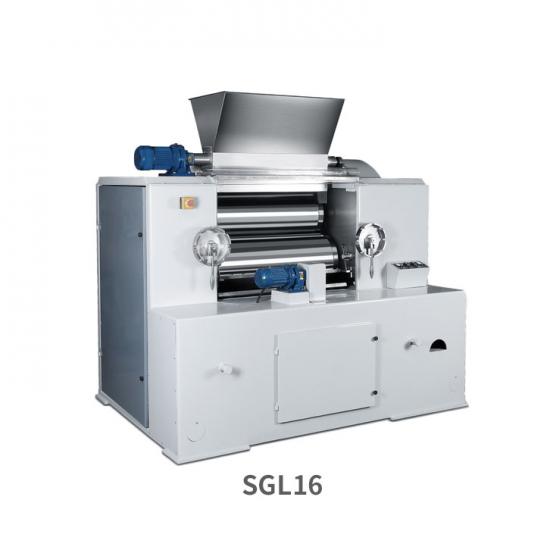

Model	SYL400-1000	SYL400-1300	SGL16"	SGL16"(longer)	SYL400-1000 (Guar Gum)
Roll dia./mm	400	400	406	406	400
Roll length/mm	1000	1300	810	1000	1000
High roll speed/rpm	0-400	0-400	170	170	350
Speed ratio	9:3:1	9:3:1	9:3:1	9:3:1	9:3:1
General pressure/Mpa	6.17	6.17	Manual	Manual	6.17
Motor power/kw	37	55	30	37	75
Pump motor/kw	1.5	1.5	Manual	Manual	1.5
Weight/kg	5000	5200	5000	5500	5200

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
