Product Details

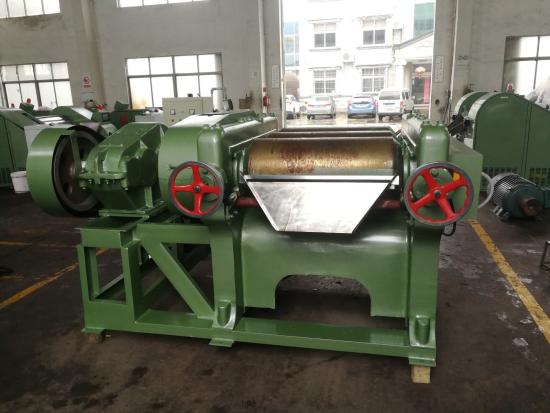

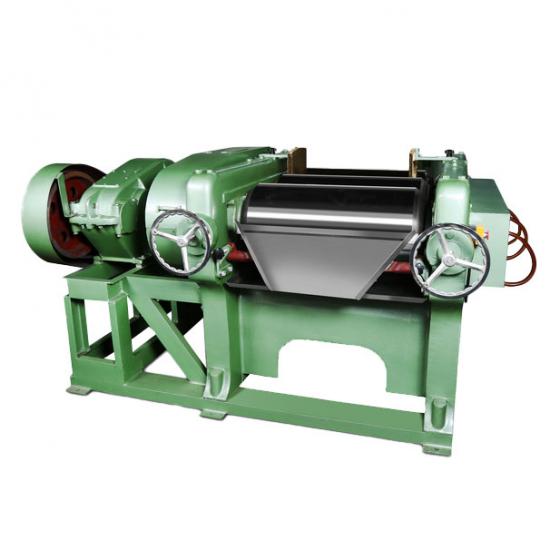

Strengthen Three Roll Mill



This SZ three roll mill is applied for high viscosity and high hardness material, which is between S type and SQ type mill. Especially for silicon rubber, pencil core,:Reflex blue paste and so on.



SPECIFICATIONS:

Model SZ260 SZ405
Working Length,   mm 675 810
Roller Diameter, mm 260 405
Slow roller speed,  rpm 13 12.2
Medium roller speed,  rpm 39 37.6
Fast roller speed,   rpm 117 116
Motor power,  kw 11-18.5 15-55
Reducer type  JSQ400-500 JSQ500-650
Speed ratio 1:3:9 1:3:9
weight,KG 3000 6500



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
