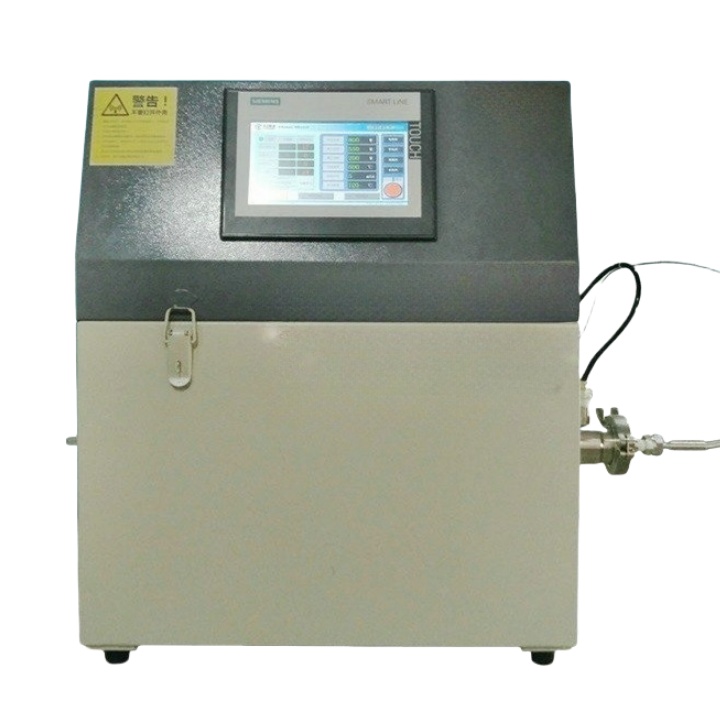

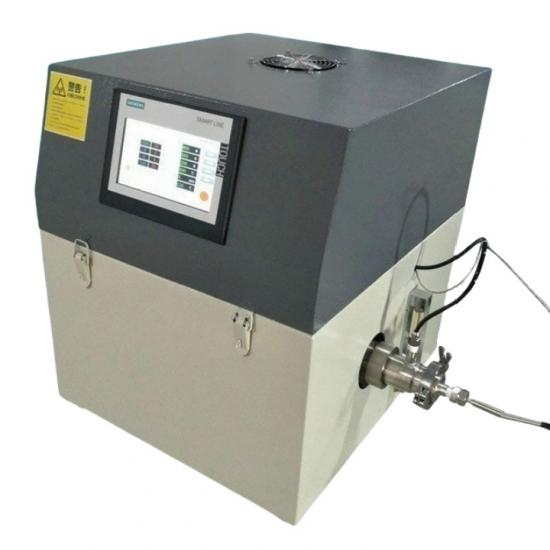

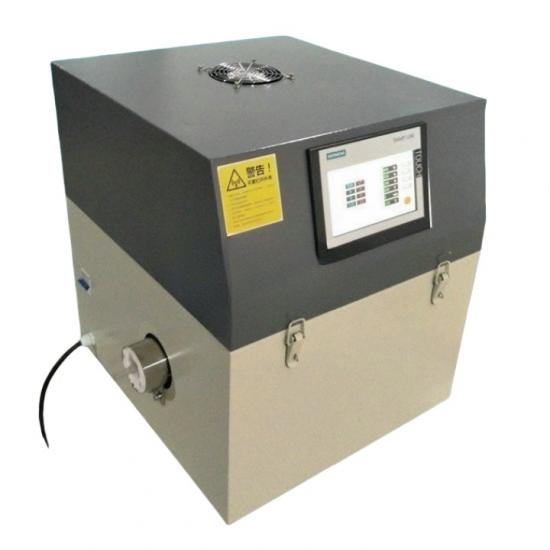

CY-PY1100C-S type microwave pyrolysis furnace

Product application

The CY-PY1100C-S microwave pyrolysis furnace is a microwave rapid pyrolysis tube furnace, featuring a controllable atmosphere and a high-temperature experimental environment.

It is applicable to the fields of laboratory drying, decomposition, carbonization, pyrolysis and cracking, including microwave thermal cracking of biomass, organic matter, coal, plastic, sludge, hazardous waste, garbage and oil sludge, etc.

Product features

● Integrated design, equipped with anti-condensation device, atmosphere device and collection supporting equipment integrated, safe and convenient

● The gas path connection method adopts a quick flange, which is convenient for loading and discharging materials. Only one clamp is needed to complete the process

● International brand control system, stable and reliable

● Industrial-grade microwave system, stable operation and long service life

● The pyrolysis speed is fast, the reaction is mild, and the pyrolysis time is only 1/5 to 1/10 of that of an electric furnace

● Vacuum-formed thermal insulation fiber lightweight structure, energy-saving and highly efficient

● The 7-inch large touch screen operation is simple and convenient

● According to customer needs, 4 sets of processes are pre-stored and can be directly called up and modified at any time

Product safety

Microwave leakage ≤0.01mw/cm² (lower than the average leakage value of mobile phones)

Alarm: Equipment overheating, magnetron overheating, microwave system failure

Model

CY-PY1100C-S

Equipment structure

Desktop (laboratory bench placement

Voltage

220±10V   50Hz

Rated power

3KW

Microwave power

0.01～1.4kW   Continuously adjustable

Electric power

0.5KW

Microwave frequency

2.45GHz

Operating temperature

≤1100℃

Length of the heating zone

150mm

Furnace tube diameter

Ø40mm

Heating rate

≤100℃/min

Temperature measurement method

Thermocouple, inserted to measure the internal temperature of the material

Temperature control accuracy

±2℃

Control program

Manual, constant temperature, automatic control, with data storage and export of experimental data; The curve is displayed in real time, with multiple settable process parameters. Four groups of processes are pre-stored and can be directly called up and modified at any time

Control mode

7-inch touch screen +PLC

Microwave leakage

＜0.01mw/cm2

Alarm

Equipment overheating, magnetron overheating, microwave system failure

Equipment dimensions

550*750*580mm(length × width × height)

Equipment configuration

1. 304 stainless steel furnace body (1 set)

2. Industrial-grade microwave heating system (1 set)

3. Insulation module (1 set, furnace tubes (2 pieces),strong microwave absorption material boats (2 pieces), quartz material boats (2 pieces), quartz plugs (2 pieces)

4. Mitsubishi brand PLC (1 piece), 7-inch Siemens touch screen (1 piece), temperature measurement device (1 set)

5. Gas line assembly (1 set) (flowmeter (2 pieces), 304 stainless steel flange (1 set))

6. Anti-condensation electric heating device (1 set), condensation device (1 set)

7. Handheld microwave leak detector (1 piece), operation gloves (1 set), stainless steel material hook (1 piece)

Fragile items

1. Insulation module

2. Furnace tube

3. Material boat

4. Plug
