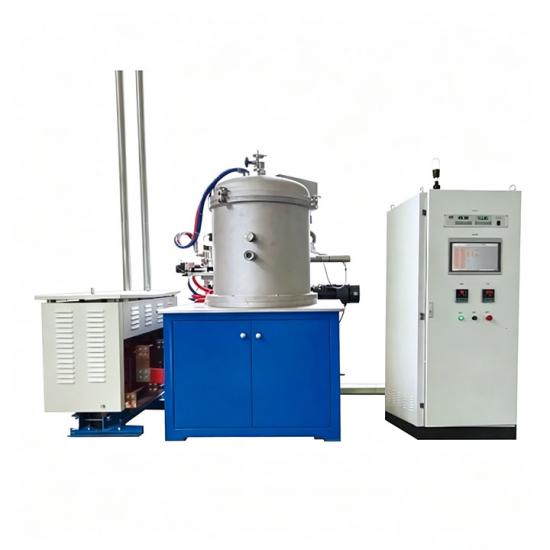

2300C High Temp Atmosphere Capable Batch Vacuum Carbon Tube Furnace Automatic
Introduction
QSH-ZT Series Vacuum Carbon Tube Furnace is a high-temperature, high-vacuum resistance furnace with graphite as heating element, adopting top-opening structure. Maximum working temperature can reach 2300℃. It is used for heating metal compounds, refractory compounds, ceramic materials and other materials under vacuum or protective atmosphere.
Technical Specifications
Rated power: 50 KW
Power supply voltage: 380 V
Heater voltage: 0–33 V (three-phase)
Maximum temperature: 2000℃
Operating temperature: ≤1900℃
Working zone size: Φ160×160 mm
Ultimate vacuum: 6.7×10⁻¹ Pa
Operating vacuum: 10 Pa (below 1800℃)
Temperature measurement: Tungsten-sheathed W-Re thermocouple
Temperature uniformity: ±5℃
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
