1100 Type Microwave Rapid Tubular Crucible Pyrolysis Furnace

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-HY-GA3010
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

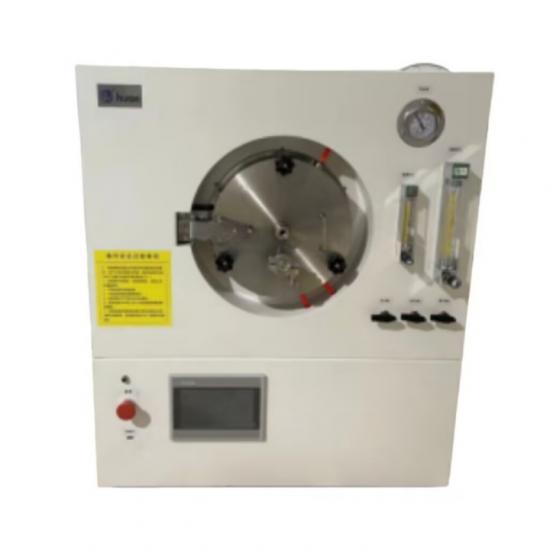

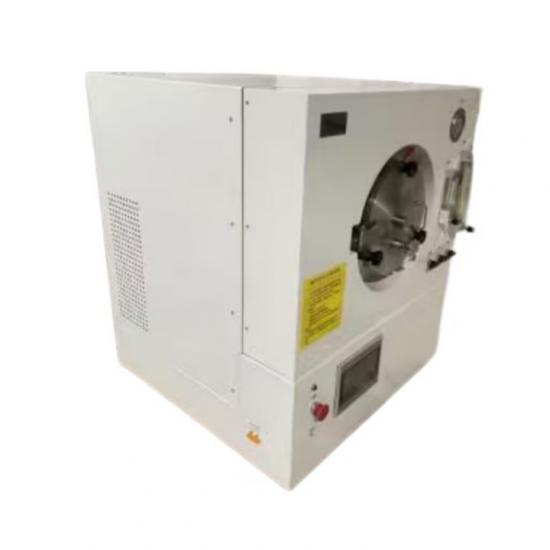

1100 Type Microwave Rapid Tubular Crucible Pyrolysis Furnace

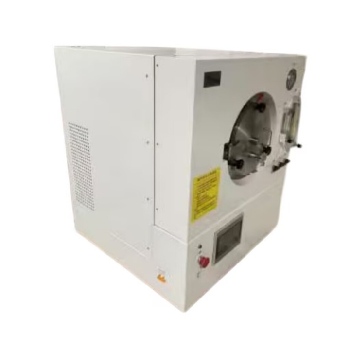

Microwave Pyrolysis Furnace

I. Main Technical Parameters of the Equipment

Product application	The microwave pyrolysis furnace is a newly developed type of microwave rapid tubular crucible furnace, featuring a controllable atmosphere and high-temperature experimental environment. It is applicable to the fields of laboratory drying, decomposition, carbonization, pyrolysis, and cracking, including microwave thermal cracking in areas such as hazardous waste, biomass, organic matter, coal quality, plastics, sludge, garbage, and oil sludge.

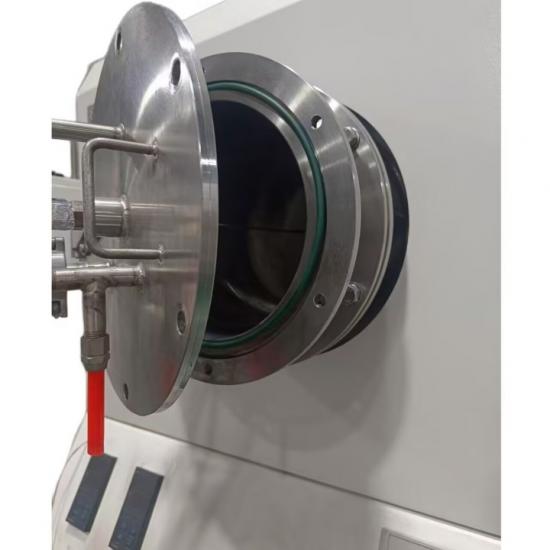

Product features	● Integrated design, with integrated anti-condensation device, atmosphere device, and collection equipment. Safe and convenient. ● The gas connection method adopts quick flanges, making loading and unloading easy. Just one clamp is needed to complete the operation. ● International brand control system, stable and reliable. ● Industrial-grade microwave system, stable and long-lasting. ● Fast pyrolysis, mild reaction. ● Lightweight vacuum-formed insulation fiber structure, energy-saving and efficient. ● 7-inch large touch screen operation, simple and convenient.
Product safety	Microwave leakage ≤ 2 mw/cm² Alarm: Equipment overheating, magnetron overheating, microwave system failure
Equipment structure	Box-type (placed on a table)
Voltage	220±10V 50Hz
Rated power	4KW
Microwave power	0.2 - 2.8KW continuous microwave, continuously automatically adjusted; using water-cooled Panasonic magnetron tube
Microwave frequency	2.45GHz
Operating temperature	≤1100℃
Heating zone length	Ø200X150mm
Tube diameter of the furnace	Ø200mm
Temperature measurement method	Thermocouple
Control accuracy	±1℃
Control program	Manual operation, constant temperature control, self-control, with data storage, capable of exporting experimental data; real-time display of curves, multiple preset process parameters, 4 sets of process data can be pre-stored, and can be directly called and modified at any time.
Control mode	7-inch touch screen + PLC
Atmosphere control	Protective atmosphere, controllable flow rate
Microwave leakage	＜ 2mw/cm2; Handheld microwave leak detector can perform continuous detection at any time
Alarm	Equipment overheating, magnetic control tube overheating, microwave system failure
Equipment dimensions	About 775 * 750 * 900 mm (length * width * height)

II. Main Equipment Configurations

Name	Specification or Component Part	Quantity	Note
Power cord		1 set	24A/3 socket plug, 3-meter power cord
Microwave source	Industrial-grade 1.5KW microwave system (including magnetron and switching power supply)	2 sets	2 x 1.5KW installed in the furnace body; Brand: Panasonic
Insulation system		1 set	1400℃ tube-type heat preservation structure
Quartz tube	Φ200mm	2 pieces
Thermocouple	RT-1100℃	1 stick	Nexin
Air circuit assembly		1 set	1 flowmeter, 2 sets of stainless steel flanges
PLC		1 unit	Mitsubishi
Touch screen		1 set	7-inch, Kunlun Tongzhi
Furnace body	304 stainless steel	1 set	Carbon steel powder-coated outer cover
Plug head	Quartz	2 sets
Cooling water circulation machine		1 unit	Optional

III. Technical Services

1. Installation, calibration, and initial trial operation requirements

2. The equipment is easy to operate. The manufacturer is responsible for providing remote guidance for operation and debugging, and all technical standards of the product design should be met, with the calibration results being in compliance.

3. The various functions during the initial trial operation are consistent with the product functions and meet the design standards.

IV. Quality Warranty Period

The equipment is warranted for 1 year (except for consumables), starting from the day of user acceptance. During the warranty period, spare parts and services are provided free of charge. After the warranty period, the manufacturer offers lifetime maintenance services.
