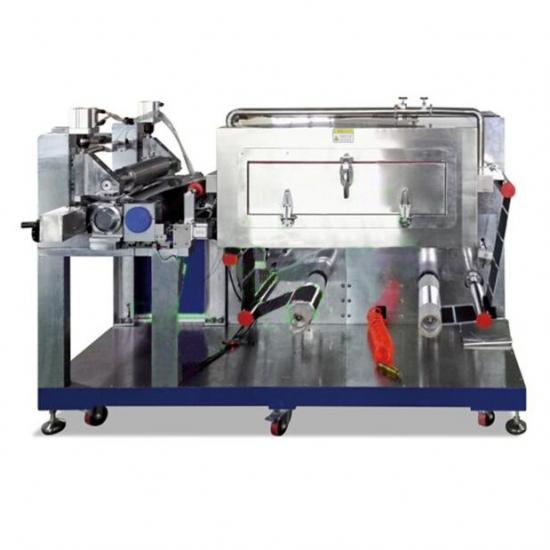

Roll To Roll Transfer Coating System ( Max. 300 Mm Width) With Drying Oven For Electrodes

TMAX-MRX300 is a automatic battery electrode coating system with a compact footprint that is less than 6'x3'. It uses transfer coating technique for better coating uniformity and is perfect for research or building prototypes (e.g. pilot scale studies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's the most convenience.

https://www.youtube.com/watch?v=beWEO53Trss

This is the video link to the product.

Working Voltage	380V AC
Max. Power Consumption	10 KW ( 30A Air breaker required )
Max. Coating Width	300mm
Thickness adjustable range	0-5mm
Coating thickness (after drying)	20 - 200um (for most kinds of battery electrode coating material) Note: The dried coating thickness results vary depending on the physical property of the coating material.
Thickness Precision	± 3µm (± 5µm at edges)
Coating Speed	0-300 mm / minute
Max. Drying Temperature	150°C
Temperature Accuracy	±2.5°C
Heating Zone Length	710mm (28")
Reeling/Unreeling Shaft	75mm (ID)
Max. Reeling/Unreeling Diameter	300mm (OD)
Max. Coating Length	·         Depending on the coating and substrate thickness. ·         Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run
Coating Modes	·         Using transfer coating technique ( Reverse comma )  for better uniformity  ·         Two available coating modes selectable on the control panel. o    Continuous mode  o    Intermittent coating ( system performs coating, stops, coats again and so on. The length of the coating and break segments can be specified by the user ).
Slurry Stirring	SS316 Moving Rod
Exhaust Port Size	127mm O.D
Compressed Air	0.5-0.8 MPa (Air compressor not included. Please click here to order)
Product Dimensions	1650mm ( L) x 1250mm (W) x 1200mm (H)
Warranty	·         Two Years limited warranty with lifetime support ·         Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Net Weight	1000 kg
Shipping Dimension	70" x 50" x 60"

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
