TMAX-HS-TMH250Automatic Eletrode Film Coating and Drying Machine Used in High Temperature Coating Research
I. Product Model: HS-TMH250
II. Description:This product is widely used in various high temperature coating research, such as ceramic films, crystal films, battery material films, special nano-films; it can adapt to the future development of science and technology of film formation under high temperature conditions.
III. Standard configuration: machine + film applicator with a width of 100mm
IV. Main features:
*Strong wind circulation drying heating, digital display temperature control;
*Plate coating, motor-driven squeegee coating, stable and adjustable coating speed;
*Film coating speed adjustable within 0 to 120mm/sec (lithium iron phosphate slurry);
*Vacuum aluminium disc for rapid placement or removal of the substrate;
*Stroke adjustable via travel switch between 0 and 250 mm;
*Film maker as standard, high coating accuracy and adjustable coating thickness;
*Can be used in the glove box, easy to operate small size, can save space;
*Built-in vacuum pump, no deformation and wrinkles in the substrate adsorption;
*Exquisite appearance, sheet metal with three-dimensional geometry design, simple and beautiful.

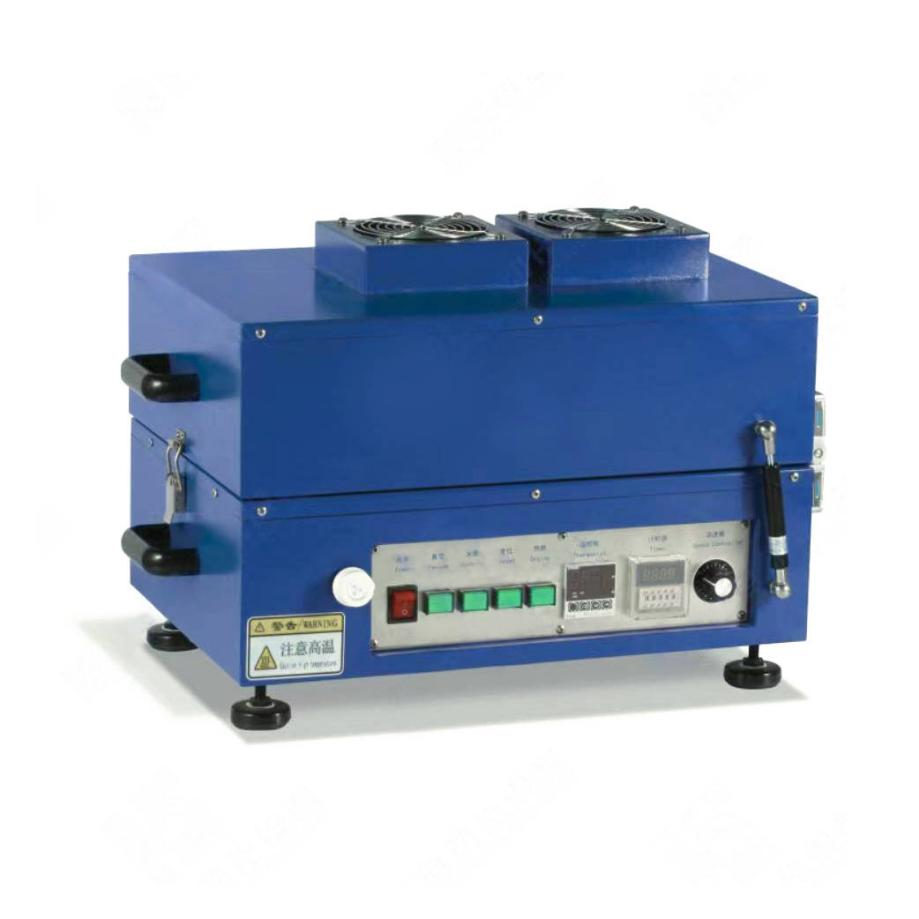

V. Product appearance
VI. Technical parameters
*Coating method: flat coating, standard with film maker or squeegee and other measuring devices
*Coating drive: motor driven, stable and adjustable coating speed
*Coating width: 100mm can be customized
*Coating speed: 0 to 120mm/sec (lithium iron phosphate slurry);
*stroke adjustable via travel switch between 0 and 250mm;
*Vacuum plate: aluminium plate with vacuum;
*Vacuum plate size: L365mm x W200mm x H32mm;
*Scraper adjustable range: 0.02 to 3.5 mm adjustable;
*Accuracy: 10um
*Heating and drying system: room temperature ~ 120℃, digital display temperature controller, accuracy ±1℃
*Including 1 set of oil-free vacuum pump built-in;
*Power supply: 220V/50Hz;
*Weight: 50KG;
*Outline dimensions: L500mm×W350mm×H320mm;
VII. Operating procedures
(1) Put the pole piece on the vacuum plate, start the power supply, turn on the vacuum, and the pole piece will be adsorbed on the vacuum plate;
(2) Place the film applicator on the pole plate and put in the coating paste;
(3) Turning on the coating, the coating device automatically pushes the film applicator to travel and apply the film automatically;
(4) Remove the film applicator and pusher, cover the heating cover, set the heating temperature and time for heating and drying;
(5) After drying, flip open the heating cover, take out the coated pole piece and reset the coating device to finish;
VIII. Maintenance methods and precautions
1. Before each work, use a soft cloth with alcohol to wipe the film coating head and body carefully to keep it clean.
2. Do not collide with the film coating head, the micro divider and other high-precision parts, hold them lightly, and adjust the micro divider symmetrically and evenly.
3. Regularly check the screws, nuts, pins and other fasteners of each part to prevent loosening and eliminate product quality accidents.
