Home Film Coating Machine

Lab Coating Machine

Lab Small Hot Melt Coating Machine

Lab Small Hot Melt Coating Machine

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-minihotmelt
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

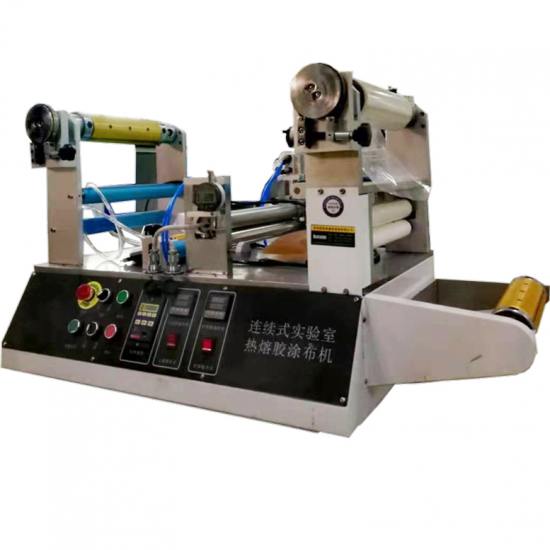

Lab Small Hot Melt Coating Machine


It is a laboratory mini hot-melt adhesive coating and laminating machine that is assembled and assembled for a high-precision modular coating station mechanism, which can be used for continuous coating proofing or small-scale production. The hot-melt pressure-sensitive adhesive can be directly coated on a heat-resistant substrate, or on a release paper, and then the adhesive film is transferred to a different surface material, such as paper, plastic model metal film, etc.



Performance characteristics:

1. The whole machine is assembled with high-precision modular coating station structure.

2. Use the dial indicator as an indexing head to finely adjust the upper and lower rubber wheel coating gaps to control the coating thickness. The minimum sizing thickness is 0.01mm. After the thickness is set, the rubber wheel can be locked indirectly to prevent the gap from changing.

3. The maximum coating width is 280mm.

The coating width is adjusted by two Teflon baffles in the glue tank.

It can be coated and glued for an unlimited length and automatically rolled.

4. Forward and reverse stepless speed change, the best coating speed: 4.5m / min

5. The unwinding reel can be adjusted to change the tension unloading.

6. The take-up reel can be adjusted by mechanical tension control.

7. The heating rod, the rubber wheel and the glue tank can be quickly disassembled and separated from the machine body to remove the residual glue.

8. Machine size: 1150 * 518 (720 with motor) * 658 mm (length * width * height)

9. Machine weight: about 120 kg

10. Machine power: AC 220 V (single phase) / 50Hz

11. Machine power: 1050 w


                Hot Melt Coater


slot die




Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
