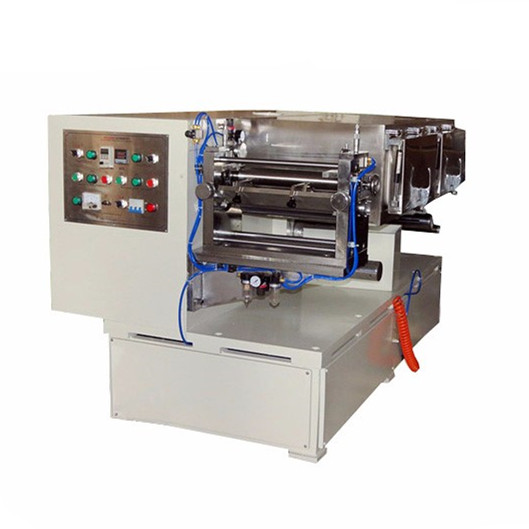

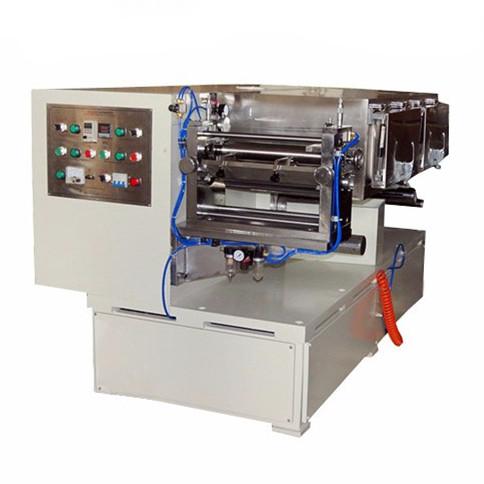

Roll To Roll Transfer Coating System With Drying Oven For Battery Electrodes

TMAX-TB300 is a CE Certified  and UL ready automatic battery electrode coating system. It uses transfer coating technique for better coating uniformity and is perfect for research or building prototypes (e.g. pilot scalestudies) of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in)together with touch screen operation for customer's utmost convenience. Get expert advice about Roll to Roll Coater here.

Specifications：

Working Voltage	208 - 240 V AC, 50/60Hz, Single Phase
Max. Power Consumption	Max15KW
Max. Coating Width	280mm
Coating Speed	0-1000 mm / minute
Thickness Precision	± 3µm (± 5µm at edges)
Max. Drying Temperature	150°C max
Temperature Accuracy	±1°C
Heating Zone Length	1600mm
Reeling/Unreeling Shaft	75mm (ID)
Max. Reeling/UnreelingDiameter	250mm (OD)
Max. Coating Length	1. Depending on the coating and substrate thickness. 2. Typically, 10um thick foil with 100um coating can get 600 meters of electrodelength coated per run

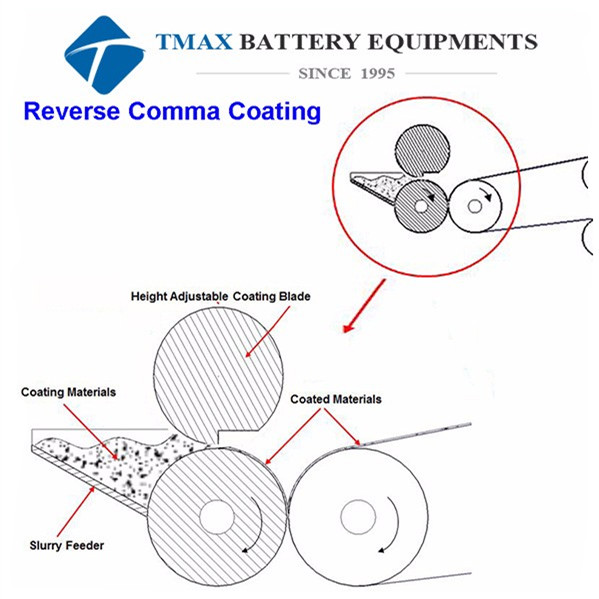

Coating Modes	3. Using transfer coating technique (Doctor Blade Coating)  for better uniformity 4. Two available coating modes selectable on the control panel. 1. Continuous mode  2. Intermittent coating ( system performs coating, stops, coats again and so on.The length of the coating and break segments can be specified by the user ).
Slurry Stirring	SS316 Moving Rod
Exhaust Port Size	100mm O.D
Compressed Air	0.5-0.8 MPa
Product Dimensions	2500*1060*1200mm
Net Weight	1300kg
Compliance	CE Certificate
Warranty	One Year limited warranty with lifetime support
Application Notes	Please use Acetone to clean and dry the doctor blade, slurry feeder, and roller toavoid rusting

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
