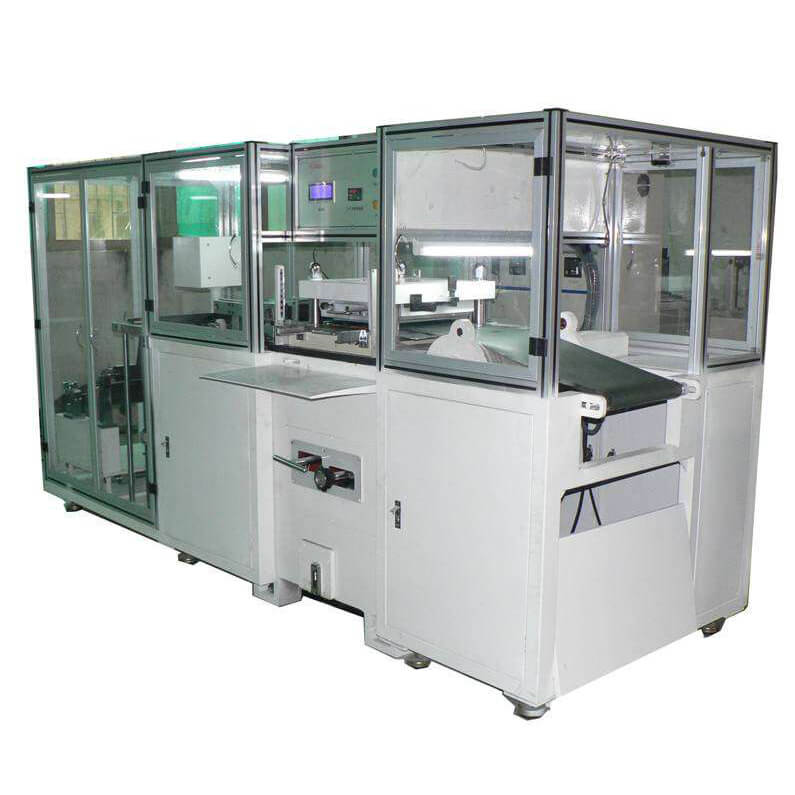

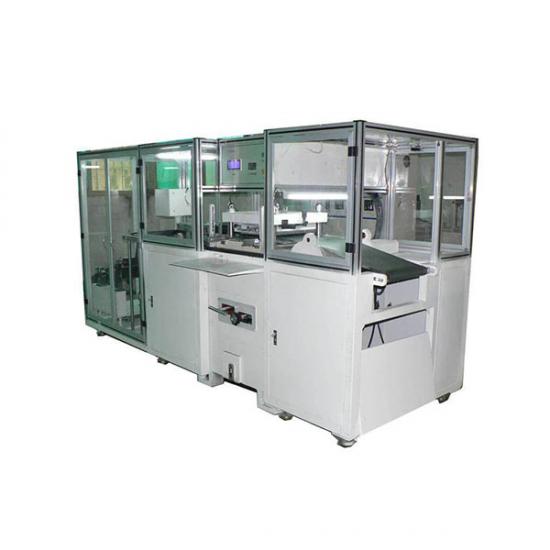

Polymer Battery Assembly Line Pouch Cell Manufacturing Machines

Product Description

Main technical parameters	Performance
Battery length	55-140mm (±0.2mm)
Battery width	30-70mm
Total battery length	60-155mm
Battery thickness	2-10mm
Aluminum-plastic composite film diameter	φ450mm
Aluminum-plastic composite film thickness	0.11-0.2mm
Gas-liquid pressurized cylinder	10T
Punching servo	15KW
Source voltage	AC220V 9KW
Capacity	4-14pcs/min
Air supply	0.5-0.7Mpa 20L/S
Size (L*W*H)	3600*3200*2000mm

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
