Introduction

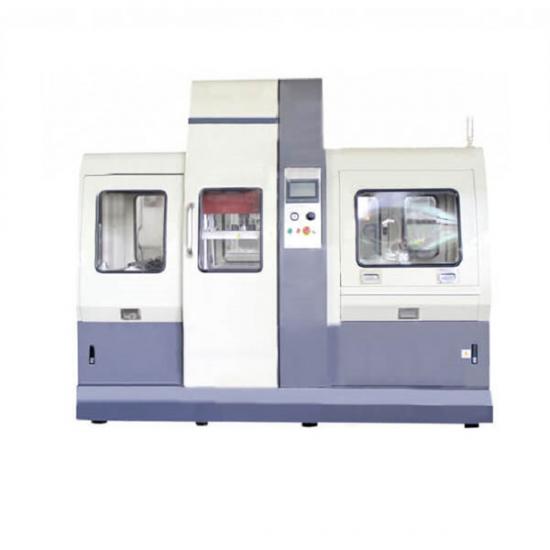

This equipment is suitable for the flexible packaging aluminum-plastic film auto pouch forming. Mainly included the aluminum-plastic film auto put volume, floating roll tension control, automatic pouch forming, auto fixed-length pull material, auto cutting, and other functions.

Features
● Pressure cylinder clamping, servo pouch forming, depth is adjustable；
● The cutter location parameter settings can be touch screen；
● Servo fixed-length puller；
● Finish Two pieces film in one time；
● Gas rose axis vertical cantilever plate is placed.

Technical Parameters(for reference)：

ITEM	CKA200	CKA280
measures	2230*695*2020mm(L*W*H)	3170*960*2175mm(L*W*H)
Weight	About 2T	About 3.5T
Power	AC220V/50HZ, 2.5KW	AC220V/50HZ, 2.5KW
Air source	≧0.6Mpa,100L/Min	≧0.6Mpa,100L/Min
Applicable range	L:≤370mm,W:≤175mm,D:≤10mm	L:≤370mm,W:≤175mm,D:≤10mm
Vacuum source	≧18PPM	100-500pcs/hour
Capacity	≧99%	≧99%
Action	2230*695*2020mm(L*W*H)	3170*960*2175mm(L*W*H)
