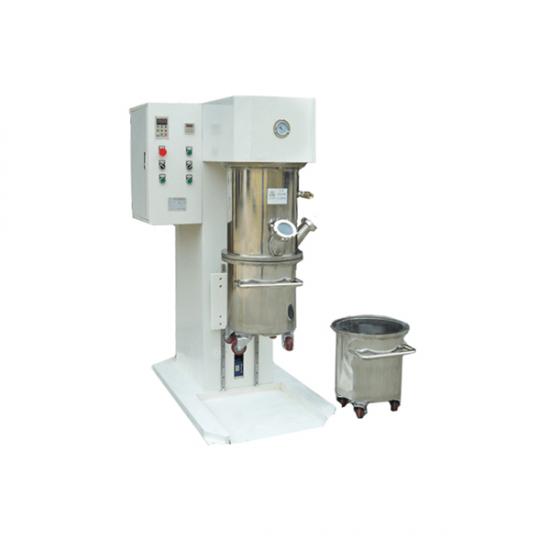

30L Planetary Vacuum Mixing Machine For Pouch Cell Slurry Processing

Introduction

1. This TMAX-PVM-30L Planetary vacuum mixer machine is a set of vacuum mixing, dispersion equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc

2. This lab planetary mixer Mixing motor adopts transmission frequency adjustment, can choose different rotational speed according to different process, different viscosity.

3. The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble.

Features

1. Adopt the industry leading soft sealing process, which can maintain the state of - 0.098mpa for more than 24 hours;

2. Adopt double precision guide pillar support, cylinder to push can body open and close, humanized design, precise and efficient;

3. The barrel body is made of 304 stainless steel with high quality. After finishing by large horizontal lathe, it is polished by precision automatic polishing machine to ensure high precision;

4. Double dispersing paddle design, make the material up and down and all around billow, make the slurry mix quickly and evenly;

5. The mixing motor adopts gearbox frequency conversion adjustment, and can select different speed and torque according to different process and viscosity;

Welcome new and old customers to contact us for slurry mixer.

Specifications

Rated power	5KW，380V；
Agitation speed	Dispersion speed: 0-1400RPM, Mixing speed: 0-70RPM Speed regulation by frequency converter
Effective volume	30L
Barrel opening and closing mode	The gearbox drives the barrel up
Inner dimension of barrel	Φ350mm×400mm
Whole machine size	1.6×1.1×7.5(m, H×L×W)
Timing function	It has timing function, and can set time 0-99 (H) at will. It can stop running automatically and keep vacuum state
Weight of whole machine	About 450kg
Discharge port	The discharge port is at the bottom of the barrel

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
