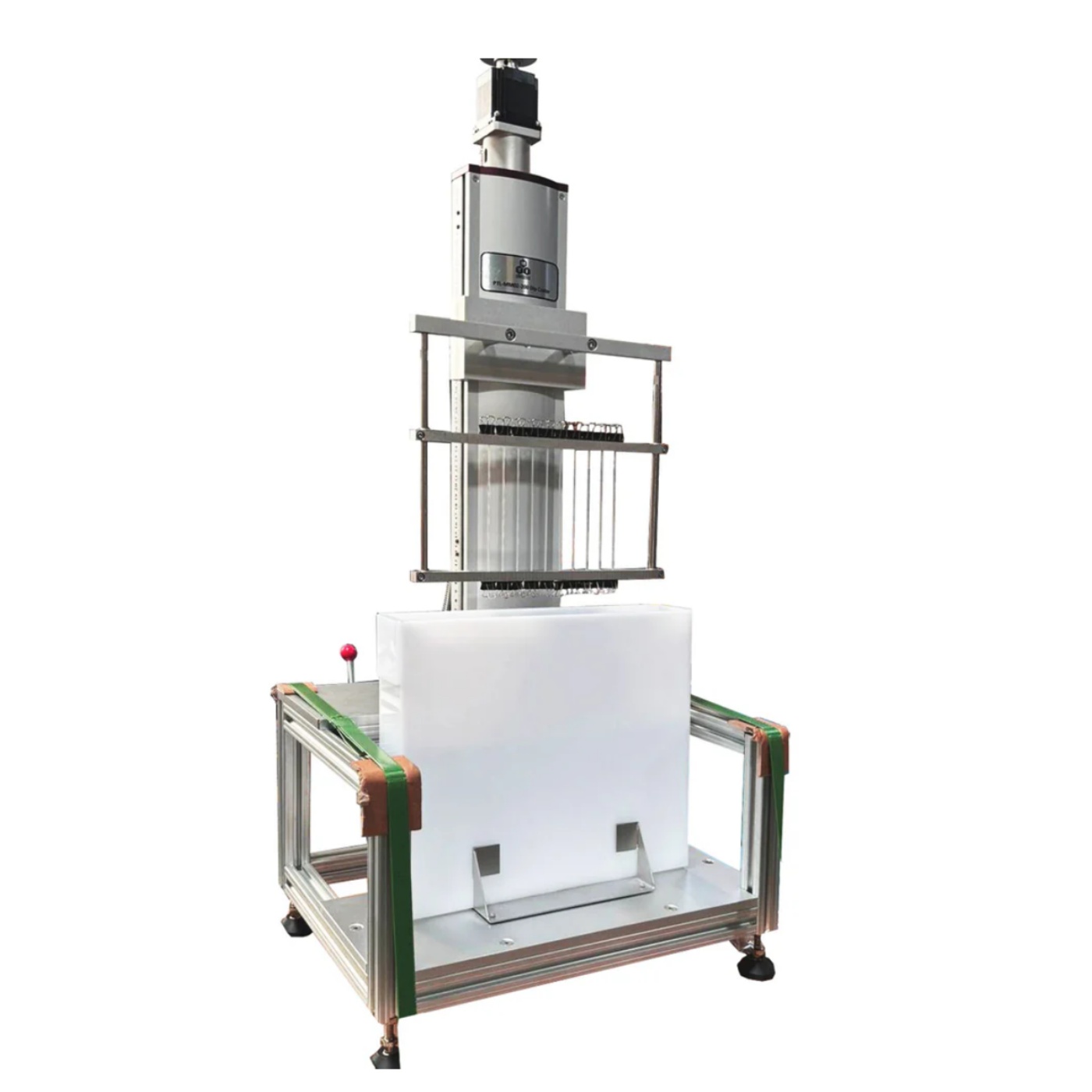

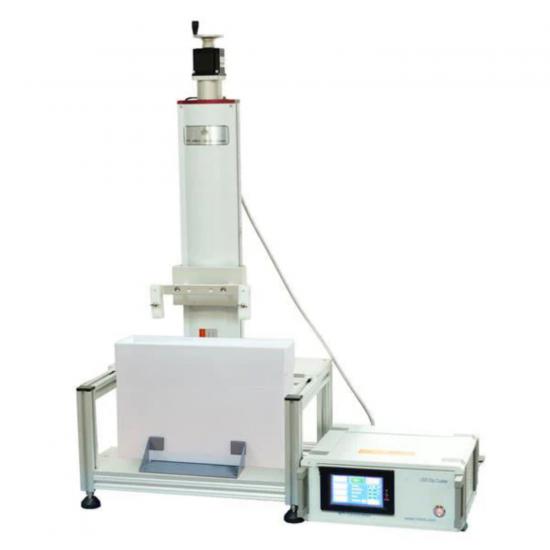

PLC Programmable Vertical Larger Dip Coater With Film Deposition On Substrate

Introduction

The LITH -KJL2 is a millimeter-level precision lifting device designed by LITH for scientific research institutions to perform liquid-phase thin film growth under ambient temperature conditions. It is widely used in the field of thin-film material preparation.

This model adopts a PLC program control system, driven by a high-precision stepper motor through a screw transmission mechanism to achieve smooth and precise lifting motion. Using the vertical dip-coating method, the sample is immersed in the liquid-phase thin-film material for a specified duration before being lifted at a constant speed. After natural drying at room temperature, a uniform-thickness film forms on the sample surface.

This equipment features a compact size, user-friendly operation, and easy mobility, making it widely applicable in universities, research institutes, and corporate laboratories.

· Equipped with a 4.3-inch color touchscreen with a simple and clear control interface, suitable for beginners.

· Compact design with high cost-performance ratio, saving laboratory space.

· PLC-controlled high-precision stepper motor drive ensures smooth operation and high accuracy.

Installation Conditions

1. Power Supply: Single-phase AC 100~240V, 50/60Hz, standard 10A socket (x1). Proper grounding is mandatory, and a 10A circuit breaker must be installed at the front end.

2. Ambient Conditions: Operational under temperature 25°C ±15°C, humidity 55%RH ±10%RH.

Key Parameters

1. Operating Voltage: DC24V, 3.75A (Standard: AC100~240V power adapter included).

2. Rated Power: 50W

3. Type: Programmable – Room Temperature Model

4. Drive Motor: High-precision stepper motor

5. Speed Adjustment Range: 1~200mm/min (Increment/Decrement: 1mm)

6. Immersion Duration: 1~999s (Increment/Decrement: 1s)

7. Drying Duration: 1~999s (Increment/Decrement: 1s)

8. Lifting Stroke: 1~270mm (Increment/Decrement: 1mm)

9. Lifting Cycle Count: 1~20 times

10. Sample Substrate Dimensions (Max): 310mm (L) × 260mm (W) × 1~5mm (T)

11. Effective Immersion Length: 200mm

12. Max Lifting Load: ≤5.5kg

13. Liquid Tank Material: White acrylic

14. Liquid Tank Dimensions (Internal): 340mm (L) × 50mm (W) × 280mm (H)

15. Display & Control: 4.3-inch color touchscreen

16. Product Specifications:

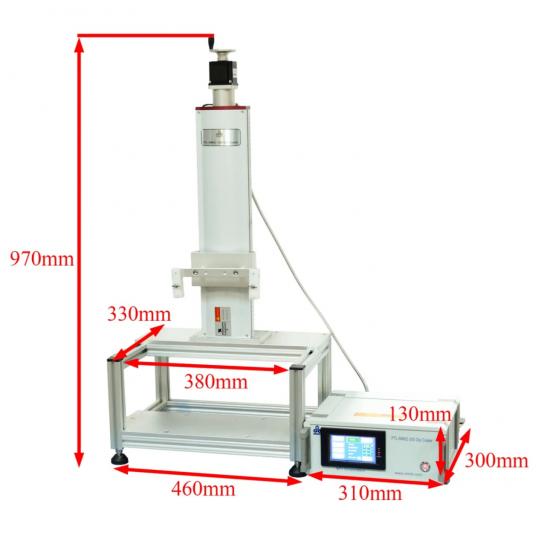

· Dimensions: 455mm (L) × 330mm (W) × 890mm (H)

· Net Weight: ≈18kg

Note:

The included power adapter specifications are:

o Input: AC100~240V 50/60Hz

o Output: DC24V, 3.75A

o Actual power supply should follow the label on the rear of the product.

Standard Accessories

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
