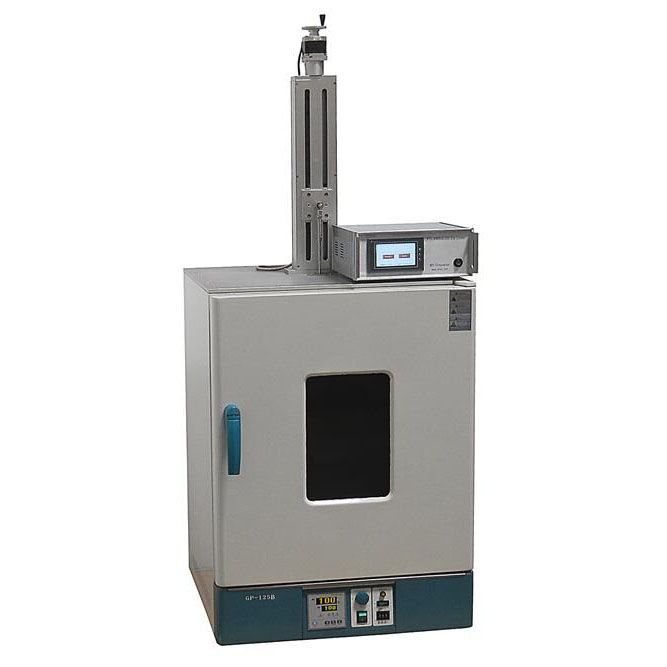

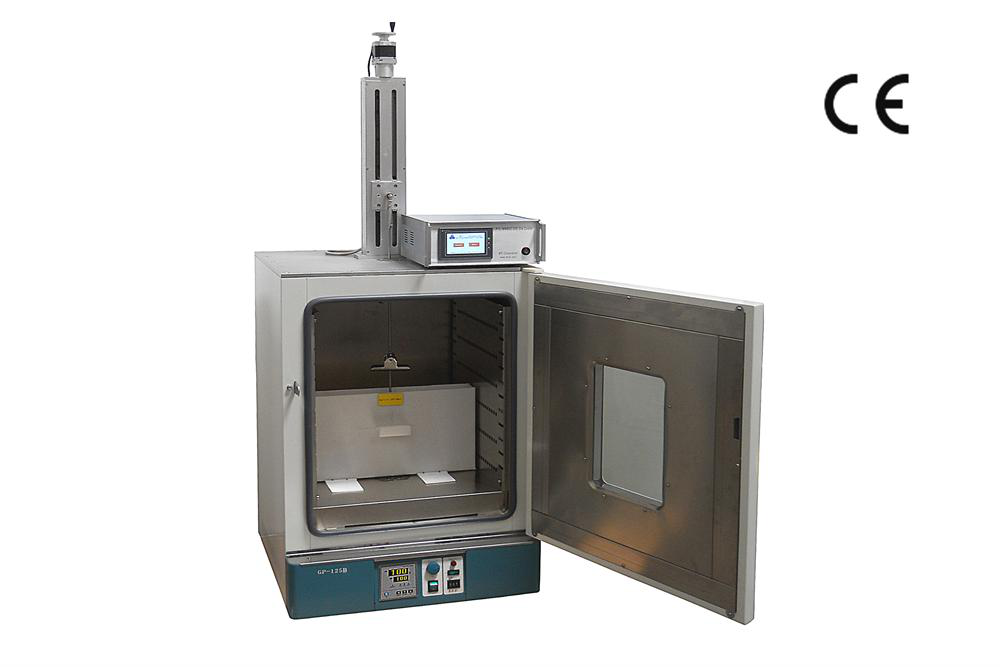

Dip Coater (1-200 Mm/Min) With 124 L Temperature Chamber And Touch Panel Controller For Large Substrate Up To 16"X 9"

Dip Coater (1-200 Mm/Min) With 124 L Temperature Chamber And Touch Panel Controller For Large Substrate Up To 16"X 9"

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164

  • Item No.:

    TMAX-PTL-MMB02-200
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Dip Coater (1-200 Mm/Min) With 124 L Temperature Chamber And Touch Panel Controller For Large Substrate Up To 16"X 9"



Specifications:


Control Panel


· Working Voltage: 110-240V AC

· Max. Power Consumption: 50W

· Detachable Digital Controller offers flexibility

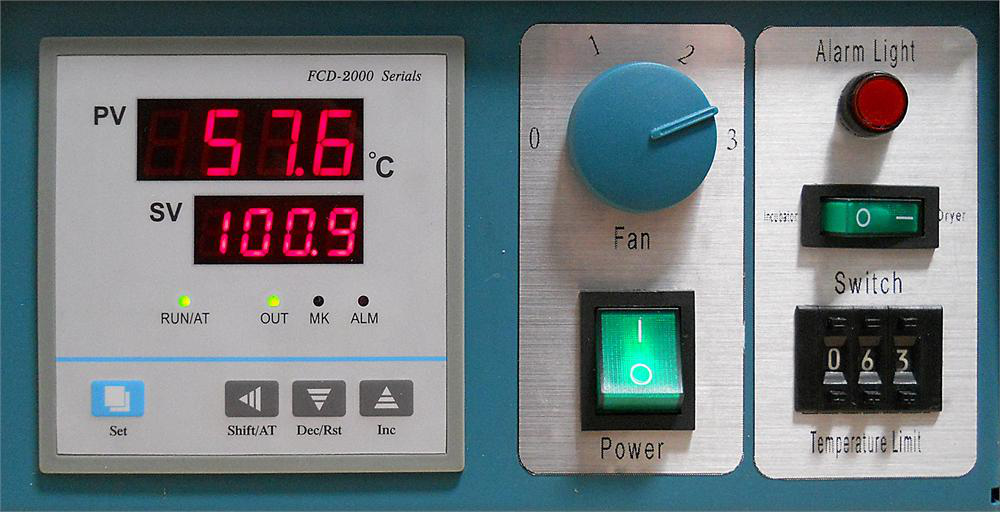

· Programmable temperature controller, Forced air fan power adjustor, Temperature limit & alarm indicator, Incubate and dry function switch are included. (Please see the second picture below for details.

Traveling Distance

0-250 mm Adjustable

Dipping/Pulling Speed

1-200 mm/min Adjustable

Max. Working Temperature

100°C (+/- 1.5°C accuracy)


Solution Container

· One Polypropylene dip tank is included with dimensions of 17.25''(W) x 2''(D) x 9.5'(H)

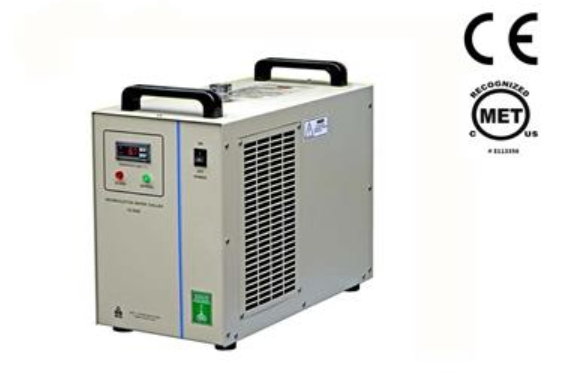

· Optional:  temperature controlled recirculating pump for the coating slurry can be added inside chamber and tank at extra cost.


Max. Sample Size

16" x 9"

Max. Sample Weight

5 kg

Dipping/Pulling Motor

Stepping Motor

Oven

· Working Voltage: 208-240V AC

· Max. Power Consumption: 2300W

· Chamber Dimensions: 500mm(L) x 450mm(W) x 550mm(H)-- 124 Liter

· Inner Material: Stainless Steel

Product Dimensions

636mm(L) x 680mm(W) x 915mm(H)

Compliance

CE Certified

Warranty

One year limited with lifetime support

Application Notes

· In order to get better film coating, the substrate shall be treated by plasma cleaner (Please click on the first picture below for more information)

· Use ultrasonic processor to disperse nanopowder or homogenize solution to get better coating (Please click on the second picture below for more information)

Net Weight

91 kg (200 lbs)

Shipping Dimensions

40"(L) x 40"(W) x 60"(H)

Shipping Weight

182 kg (400 lbs)
