Nanometer Range Programmable Dip Coater With Drying Oven (1-500 Nm/Sec, 100°C Max. )

Nanometer Range Programmable Dip Coater With Drying Oven (1-500 Nm/Sec, 100°C Max. )

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    PTL-NMB
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

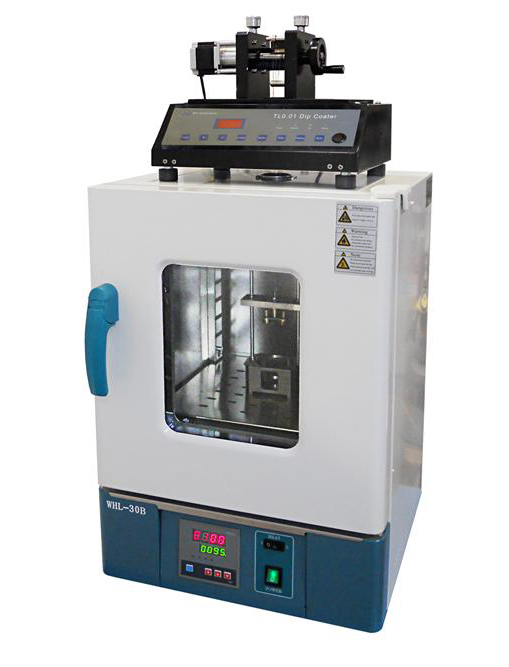

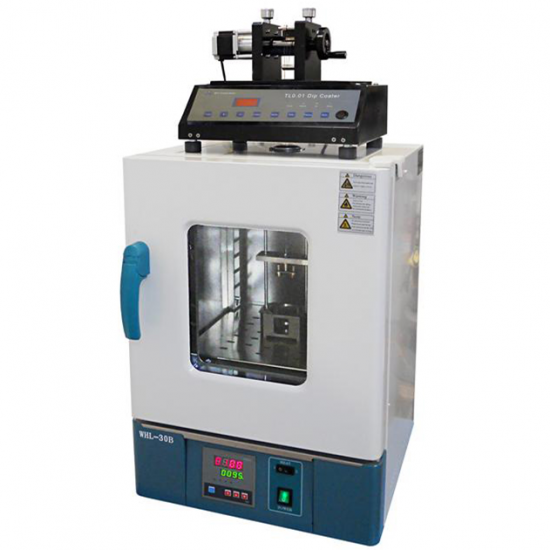

Nanometer Range Programmable Dip Coater With Drying Oven (1-500 Nm/Sec, 100°C Max. )



PTL-NMB is CE Certified Nanometer Grade Desktop Programmable Dip Coater (1-500 nm/sec) with "touch-screen" digital control. Dipping rate, pulling rate, dwell time, and cycle life can be setup by touch screen controller and run dip coating automatically in the temperature controllable oven. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solution.


Specifications:


Working Voltage

110/220V AC selectable

Travelling Distance

0-60 mm Adjustable

Dipping/Pulling Speed

1-500 nm/sec Programmable with accuracy within +/- 0.05%

Temperature Range

50-100°C

Controller

6" LCD color touch screen controller

Sample Holder

Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods

Solution Container

One 150mL beaker is included

Beaker Holder

The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.

Max. Sample Size

3"(L) x 2"(W)

Sample Weight

Less than 250g

Dipping/Pulling Motor

Stepping Motor

Oven

· Working Voltage: 110/220V AC selectable in Personalization

· Max. Power Consumption: 600W

· Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H)

· Inner Material: Stainless Steel

· Product Dimensions: 406mm(L) x 406mm(W) x 610mm(H)

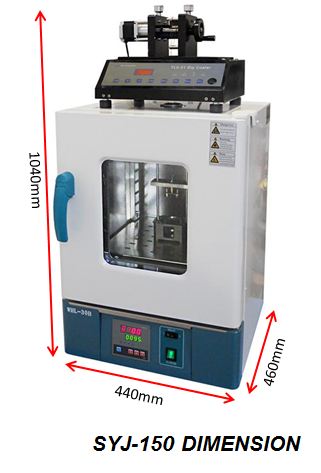

Product Dimensions



440mm(L) x 460mm(W) x 1040mm(H)

Compliance

CE Certified

Warranty

One year limited with lifetime support

Application Notes

· In order to get better film coating, the substrate shall be treated by plasma cleaner

· Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating

· Liquid solution is placed in the controlled temperature oven with +/-1°C tolerance from room temperature to 100°C. Please keep warm at least half hour after the temperature reach the set point on the digital temperature meter to ensure an equilibrium temperature distribution in the liquid solution



Shipping Weight

46 kg (100 lbs)

Shipping Dimensions

45"(L) x45"(W) x40"(H)





PTL-MMB01

Dip Coater


Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
