Category

Specification

Model

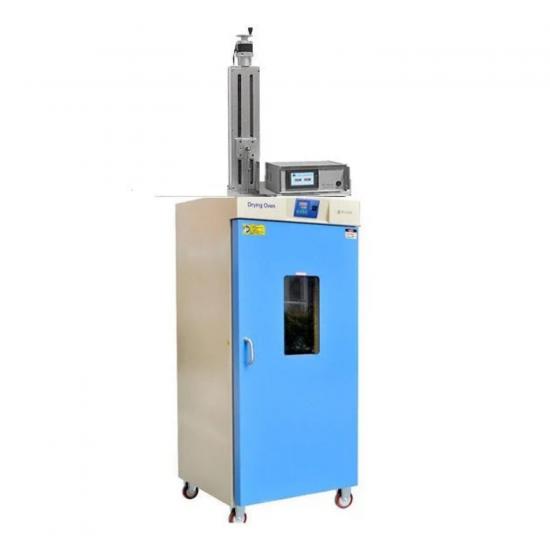

LITH-KJ014O

Control Panel

- Working Voltage: 110–240V AC

- Max. Power Consumption: 50W

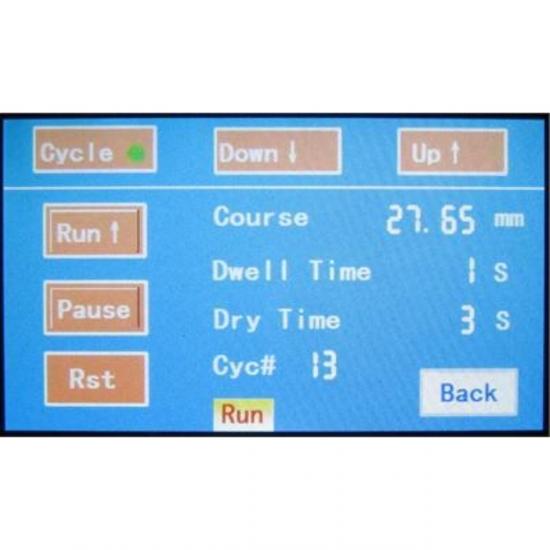

- Detachable Digital Controller (programmable)

- Includes: Programmable temp. controller, forced air fan adjustor, temp. limit/alarm, incubate/dry function switch (see image for details)

Traveling Distance

0–550 mm (adjustable)

Dipping/Pulling Speed

1–200 mm/min (adjustable)

Temperature

100°C (±2°C accuracy)

Solution Container

- Material: Polypropylene

- Internal Dimensions: 600 (L) × 600 (H) × 25 (W) mm

Max. Sample Size

20" × 20"

Max. Sample Weight

10 kg

Dipping/Pulling Motor

Stepping Motor

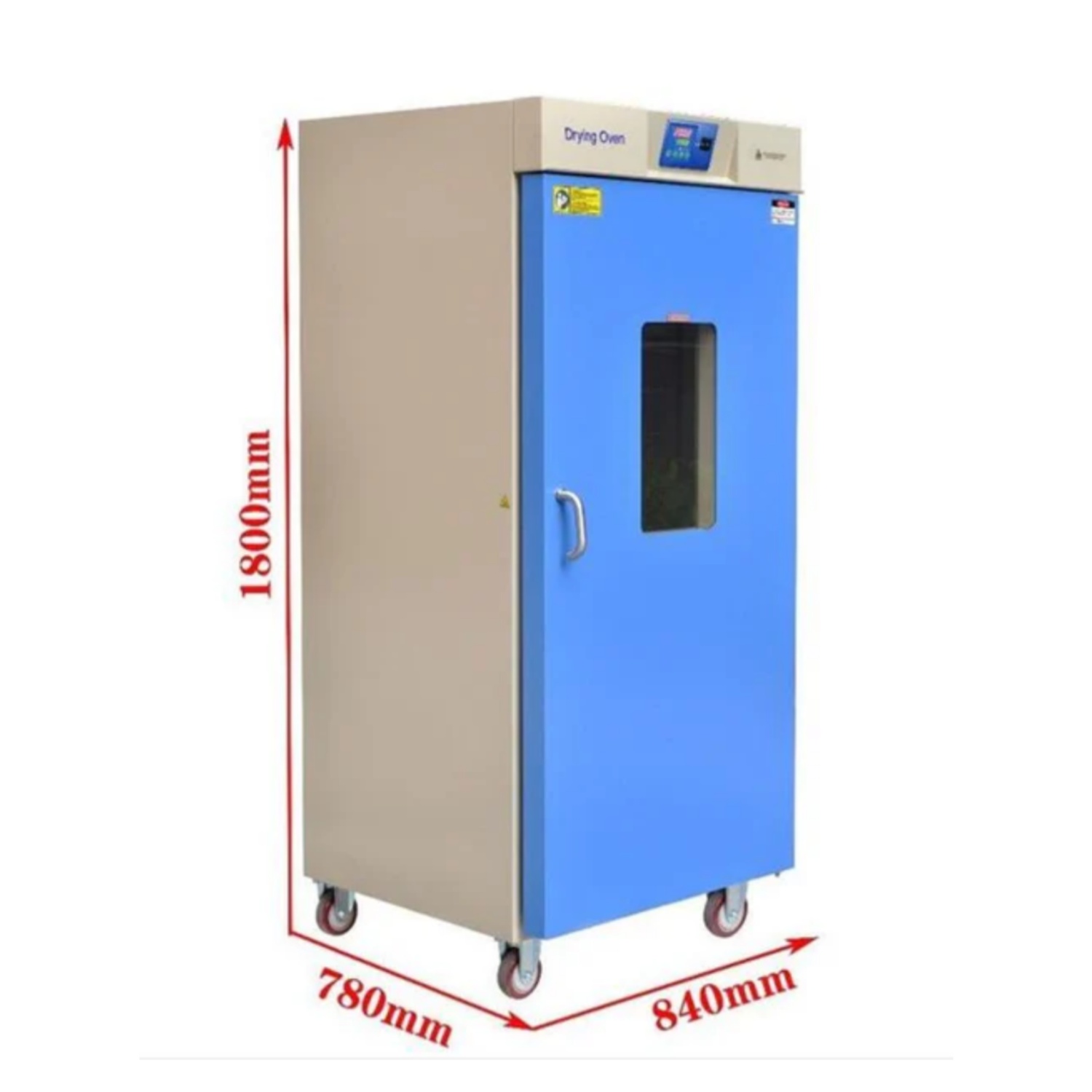

Oven

- Working Voltage: 208–240V AC

- Max. Temp.: 100°C (±2°C)

- Max. Power Consumption: 3500W

- Temp. Control: Digital PID (±1°C)

- Chamber Dimensions: 640 (L) × 585 (W) × 1355 (H) mm (420L)

- Inner Material: Stainless Steel

Compliance

- CE Certified

- NRTL/CSA Certification (available upon request, extra cost)
