Microwave Rapid Heating Atmosphere Continuous Reduction Bulking Furnace for Intercalated Graphite and Graphene Oxide

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-HY-PH3010
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Microwave Rapid Heating Atmosphere Continuous Reduction Bulking Furnace for Intercalated Graphite and Graphene Oxide

1. Equipment overview

HY-PH3010 graphite microwave puffing furnace is a type of high temperature microwave puffing equipment independently developed by Huae Microwave. It is a microwave rapid heating atmosphere continuous reduction bulking furnace, which is suitable for the instant reduction bulking of intercalated graphite and graphene oxide. The production is stable and reliable, the product quality is high, with the ability of continuous small-scale trial production, The daily processing capacity is approximately 1 to 3 kilograms.The specific output is closely related to the bulk density of the materials and the process cycle.

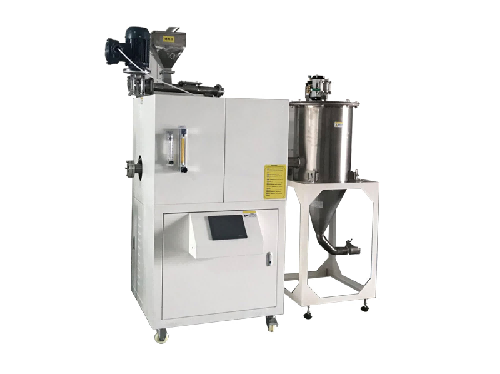

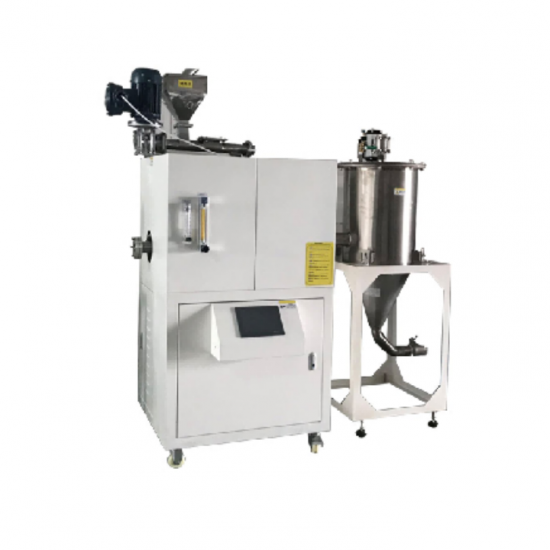

2. Real pictures of the equipment (The following pictures are for reference only)

3. The main technical parameters

	Model	HY-PH3010
Power supply	Voltage	220±10V 50Hz
Power supply	Rated power	5KW
Microwave system	Microwave output power	0.01-2.8KW continuous automatic adjustment
Microwave system	Microwave frequency	2.45 GHz
Thermal insulation system	Limit operating temperature	≤1000℃
	Continuous operating temperature	≤900℃
	Rotary heating space:	Φ100 x 150mm(diameter x length)
Temperature control system	Temperature measurement method	K type thermocouple
	Temperature range	0 ~ 1300℃
	Temperature control accuracy	Reading ±0.5%
Control system	PLC+touch screen	Settable process parameters; It includes three working modes: automatic, manual and constant temperature. Real-time curve display, with data storage, online alarm
Microwave shielding system	Microwave shielding and alarm	Microwave shielding
	Microwave shielding and alarm	Portable microwave leak detector
	Microwave leak proof	Microwave leakage level < 1mW/cm2
Feeding and discharging system	Feed/effluent exchanger	Material conveying, reduction puffing and material blowing can all be automatically operated with one click
	Visible window	A visual window is set at one end of the furnace tube, which is convenient for observing the situation inside the furnace at any time
	Storage tank	304 stainless steel material; The top is equipped with a filter element
Cooling system	Circulating chiller	The cooling capacity shall not be less than 1P
Atmosphere System	Component	Configure flowmeters, intake valves, exhaust valves, gas pipelines, etc
External dimensions	Body part	Approx 630 x 530 x 480mm (L x W x H)
	Bench stand	Approx 900 x 500 x 700mm (L x W x H)
	Floor area	About 1.5m2

4.Equipment configuration table

Serial Number	Items	Quantity	Unit	Details
1	Microwave system	2	Sets	1.5KW microwave system, including Panasonic water-cooled magnetron and switching power supply
2	1400℃ thermal insulation module	1	Set	1400℃ microwave curing high temperature insulation module
3	Quartz furnace tube	2	Pcs	Custom made, heating area Φ100 x 150mm (diameter x length), use one for one
4	Microwave special heating material	1	Set	Made of silicon carbide
5	Thermocouple	2	Pcs	Measuring temperature range 0-1300℃, use one for one
6	Control system	1	Set	Mitsubishi PLC, 7 inch MCGS touch screen, contactor, circuit breaker, relay, switching power supply, etc
7	Furnace body	1	Set	304 stainless steel
8	Equipment frame	1	Set	Carbon steel spray
9	Feed and discharge system	1	Set	Install quantitative feeding device; It is equipped with electric control valves, pneumatic valves, etc
10	Auxiliary rack	1	Set	Carbon steel material
11	Storage tank	1	Set	304 stainless steel, storage tank inner wall plated PTFE
12	Microwave leak detector	1	Set	Handheld microwave leak detector
13	Circulating chiller	1	Set	The cooling capacity shall not be less than 1P
14	Polyester bag	4	Pcs	350 mesh
15	Others	1	Set	Includes an adjustable wrench and high-temperature gloves

5. Technical Services

5.1 Installation, Verification, and Initial Trial Operation Requirements

5.1.1 The manufacturer is responsible for the on-site installation and commissioning in Chinese Mainland, and meets the technical standards of product design, and the calibration meets the requirements.

5.1.2 The initial trial operation of various functions shall be consistent with the product functions and meet the design standards.

5.2 Personnel Training Requirements

5.2.1 Training requirements: The manufacturer is responsible for the basic principles, operation and application, precautions, and daily maintenance of the instrument and equipment, so that they can master the correct operation, daily maintenance, and handling of simple faults of the instrument.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
