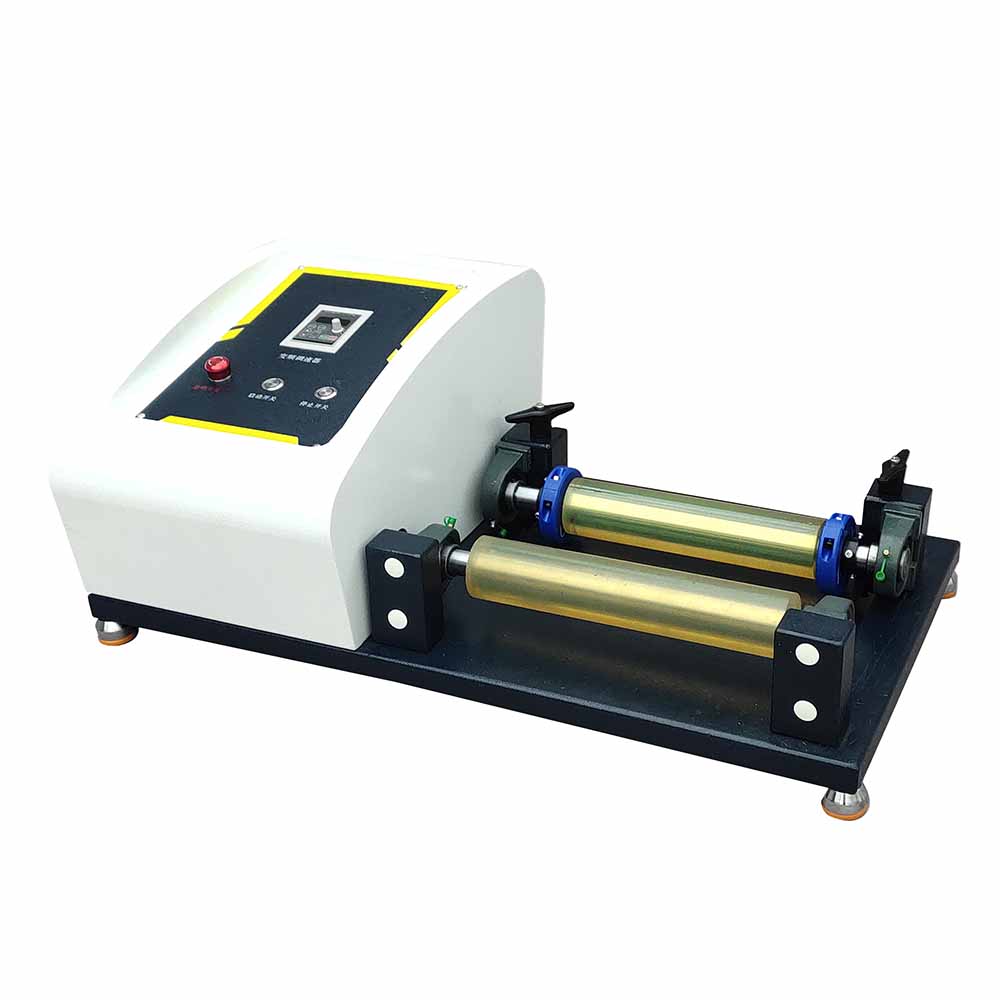

Compact And High Efficiency Small Roll Ball Mill Machine

Overview
Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.

Lab Roll Ball Mill

jar ball mill

Working Principle
When mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.

Lab Roll Ball Mill

Features
1. Compact structure, easy operation
2. High efficiency and uniform granularity
3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers.
4. It is convenient to change pots and suitable for both wet and dry grinding.

Application Cases of Planetary Ball Mill

Lab Roll Ball Mill

Technical Parameters of Lab Roll Ball Mill

Category

Model No.

Power Supply

Rotate Speed

Max Load

Per Jar

Dimensions

& Net Weight

1 Work Position

GQM-1-5

220V-50Hz

or 60Hz/0.37kw

60-570 rpm

35KGS

730*415*260mm

32KGS

GQM-1-15

220V-50Hz

or 60Hz/0.75kw

60-570 rpm

80KGS

845*435*270mm

43KGS

Our factory provides all kinds of mill pots，like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.
Lab Roll Ball Mill
Available Roll Mill Jars & Specifications

Description of Roll Mill Jars	Available Specifications
Normal ceramic roll mill jar	From 1.0L to 15L
304 Stainless steel roll mill jar	From 0.5L to 20L
Alumina ceramic (Corundum) roll mill jar	From 0.5L to 10L
Nylon roll mill jar	From 0.5L to 20L
Polyurethane roll mill jar	From 0.5L to 20L
PTFE/Teflon roll mill jar	From 0.5L to 20L
Tungsten carbide roll mill jar	From 250ml to 3L
Roll jacket (Stainless steel)	0.5L to 3L
316l Stainless steel roll mill jar	Customized

Matching Solutions Recommendation for Materials & Mill Jars

Materials & Requests	Recommended Solutions
Soil materials and other materials which are not allowed with any impurity contamination	Agate mill jar
Metal or nonmetal which are not allowed with any impurity contamination	Zirconium mill jar
High hardness materials like diamond, tungsten carbide	Tungsten carbide mill jar
Strong add & alkali materials, or other materials under high temperature	PTFE mill jar
Iron ore materials or other materials with low impurity sensitivity	304 stainless steel mill jar
Pigment or materials with later processing under high temperature	Nylon mill jar
Aluminum materials like ceramic glaze	Corundum mill jar
Electronic materials like lithium battery	Polyurethane mill jar

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
Lab Roll Ball Mill

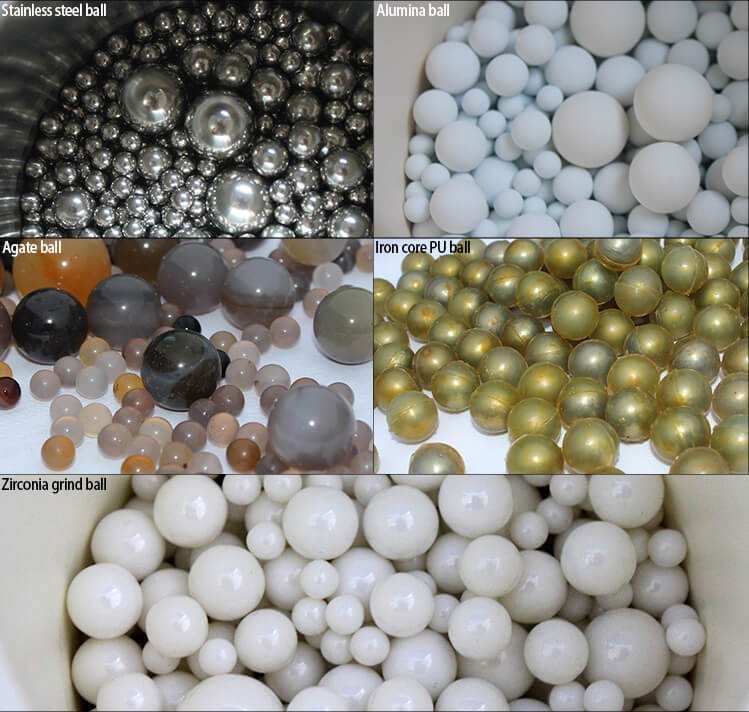

Available Mill Balls & Specifications

Descriptions	Available Specifications (Diameter Size)
304 Stainless steel mill balls	From 1mm to 30mm
316l Stainless steel mill balls	From 1mm to 30mm
Alumina mill balls	From 1mm-50mm
Zirconium mill balls	From 0.1mm to 30mm
Agate mill balls	From 1mm-30mm
Tungsten carbide mill balls	From 2mm to 20mm
Carbon steel mill balls	From 1mm to 30mm
Iron core PU mill balls	From 15mm-30mm

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
