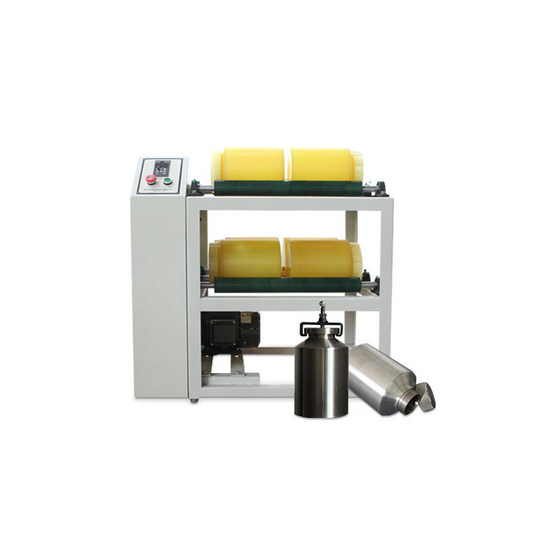

2-8 Work Positions Jar Mill Equipment Roll Ball Mill With Optional Volume Jar

2-8 Work Positions Jar Mill Equipment Roll Ball Mill With Optional Volume Jar

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-XQM
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    20 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

2-8 Work Positions Jar Mill Equipment Roll Ball Mill With Optional Volume Jar



Overview
Lab jar mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling mill with more than two working positions. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials. Thus it obtains best effects of grinding. As a result, materials are ground to micro powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, so that you may set working time according to requirement at any time. It not only saves time and labor, but is easy for operation.

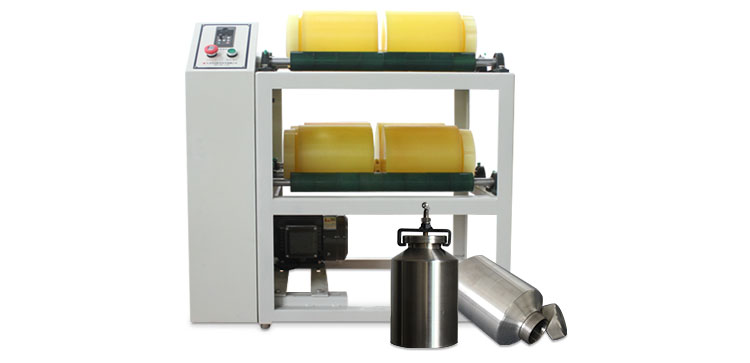

Roll Ball Mill

Lab Jar Mill

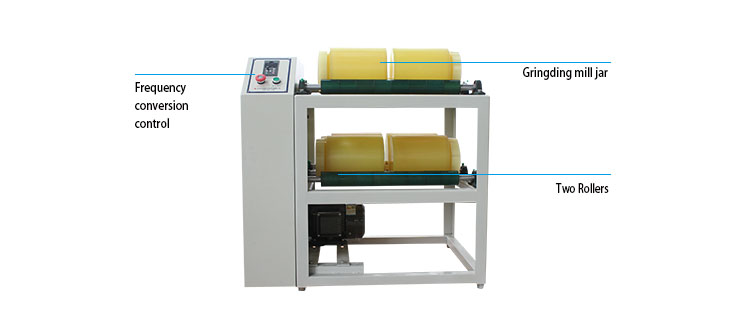

When the machine works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding. It not only saves time and labor, but is easy for operation.

Lab Jar Mill



Features
1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set as per users’ needs.
4. Suitable for ultrafine grinding with high efficiency of pulverizing.
5. Rubber roller is made of special materials and durable in use.

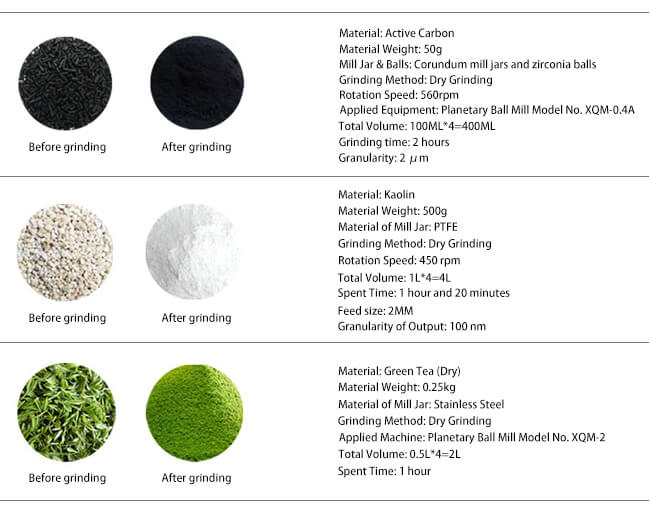

Application Cases of Planetary Ball Mill

Lab Jar Mill


Technical Parameters of Lab Jar Mill

Category

Model No.

Power Supply

Rotate Speed

Max Load

Per Jar

Dimensions

& Net Weight



2 Work Positions

GQM-2-5

220V-50Hz

or 60Hz/0.75kw

50-410 rpm

35KGS

950*480*685mm

59KGS

GQM-2-15

220V-50Hz

or 60Hz/1.1kw

40-365 rpm

80KGS

1130*550*690mm

80KGS

GQM-2-20

220V-50Hz

or 60Hz/1.5kw

40-340 rpm

120KGS

1350*650*690mm

92KGS









4 Work Positions

GQM-4-5

Single layer

220V-50Hz

or 60Hz/0.75kw

50-410 rpm

35KGS

950*660*690mm

70KGS

GQM-4-5

Double layer

220V-50Hz

or 60Hz/0.75kw

50-410 rpm

35KGS

950*480*870mm

92KGS

GQM-4-15

220V-50Hz

or 60Hz/1.5kw

40-365 rpm

80KGS

1130*800*690mm

95KGS

GQM-4-20

380V-50Hz

or 60Hz/2.2kw

40-340 rpm

120KGS

1350*820*690mm

122KGS



8 Work

Positions

GQM-8-5

220V-50Hz

or 60Hz/1.5kw

50-410 rpm

35KGS

950*660*960mm

106KGS

GQM-8-15

380V-50Hz

or 60Hz/2.2kw

40-365 rpm

80KGS

1130*800*960mm

152KGS

Matching Solutions Recommendation for Materials & Mill Balls roll mill jars,like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Lab Jar Mill

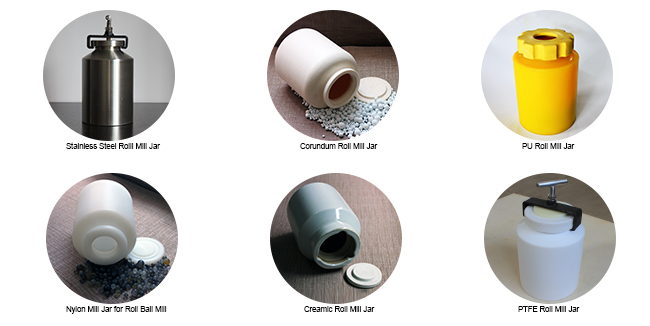

Available Roll Mill Jars & Specifications

Description of Roll Mill Jars

Available Specifications

Normal ceramic roll mill jar

From 1.0L to 15L

304 Stainless steel roll mill jar

From 0.5L to 20L

Alumina ceramic (Corundum) roll mill jar

From 0.5L to 10L

Nylon roll mill jar

From 0.5L to 20L

Polyurethane roll mill jar

From 0.5L to 20L

PTFE/Teflon roll mill jar

From 0.5L to 20L

Tungsten carbide roll mill jar

From 250ml to 3L

Roll jacket (Stainless steel)

0.5L to 3L

316l Stainless steel roll mill jar

Customized


Matching Solutions Recommendation for Materials & Roll Mill Jars

Materials & Requests

Recommended Solutions

Soil materials and other materials which are not allowed with any impurity contamination

Agate mill jar

Metal or nonmetal which are not allowed with any impurity contamination

Zirconium mill jar

High hardness materials like diamond, tungsten carbide

Tungsten carbide mill jar

Strong add & alkali materials, or other materials under high temperature

PTFE mill jar

Iron ore materials or other materials with low impurity sensitivity

304 stainless steel mill jar

Pigment or materials with later processing under high temperature

Nylon mill jar

Aluminum materials like ceramic glaze

Corundum mill jar

Electronic materials like lithium battery

Polyurethane mill jar


We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.


Lab Jar Mill

Available Mill Balls & Specifications

Descriptions

Available Specifications (Diameter Size)

304 Stainless steel mill balls

From 1mm to 30mm

316l Stainless steel mill balls

From 1mm to 30mm

Alumina mill balls

From 1mm-50mm

Zirconium mill balls

From 0.1mm to 30mm

Agate mill balls

From 1mm-30mm

Tungsten carbide mill balls

From 2mm to 20mm

Carbon steel mill balls

From 1mm to 30mm

Iron core PU mill balls

From 15mm-30mm


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
