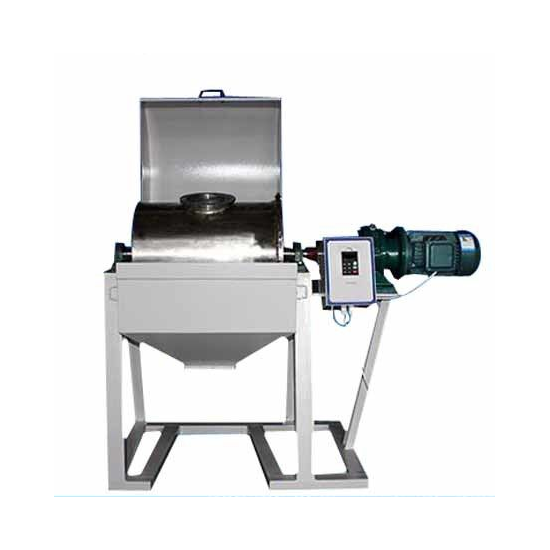

Light Rolling Ball Mill Machine



Light roll ball mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called rolling machine altar. The machine is preferred equipment for scientific research, teaching, experiment and production due to its advantages such as beautiful design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc. Optimal design of rotating speed is adopted in the machine, where mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow movement and disperse materials, thus it obtains best effects of grinding. As result, materials are ground into micron powder. Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set working time according to requirement at any time. It saves time and labor, and is easy for operating.

Light Roll Ball MillLight Roll Ball Mill





When the machine works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity, they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.
Light Roll Ball Mill



Features
1. Stable running, high efficiency, low noise and non-pollution
2. All kinds of hard materials can be ground with dry or wet grinding method; the machine is suitable for rough and fine grinding or can be also applied to mixing materials.
3. The machine is self-equipped with pouring device, and has function of separating powder and ball media automatically, convenient to output powder.
4. Equipped with safety cover, finest pure degree and non-pollution.
5. Anti-abrasion, high efficiency of grinding.
6. A variety of liner jars in different materials can be selected such as alloyed steel, stainless steel, abrasion-resisting polyurethane, corundum ceramic, zirconia, and etc. Models of 20-2000L volume are available for customers’ needs.

Selection Helps of Light Roll Mill
1. Model Instruction: QM-(VOLUME)-(A: means speed is adjustable, B: common model). Example: QM-50-A means it is a model of 50L volume roll mill with function of speed adjusting;
2. Model No of roll mill can be selected according to quantity (weight) of grinding materials;
3. Selection of materials of jars and balls can be made by property of material;
4. Automatic pouring device and anti-dust cover is available for your option.

Application Cases of Planetary Ball Mill

Light Roll Ball Mill

Main Parameters of Light Roll Ball Mill



Model No.

Volume
(L)

Rotate Speed
(rpm)

Material Capacity
(L)

Power Supply

Available Jars

Feed Size
(mm)

Output Granularity
(mesh)

Adjustable Mode of Rotate Speed



QM-30L

30

20~60rpm

10.5

0.75KW/220V

Carbon Steel,
Stainless Steel,
Nylon Liner,
Alumina Ceramic Linner,
PU(polyurethane) Linner,
PTFE Linner.

≤10

≥300

Frequency adjuster
or Fixed setting for buyer's options



QM-50L

50

20~50rpm

17.5

1.5KW/220V

≤10

≥300



QM-100L

100

20~45rpm

35

2.2KW/380V

≤20

≥300



QM-200L

200

20~40rpm

70

4KW/380V

≤20

≥300



QM-300L

300

20~38rpm

105

5.5KW/380V

≤20

≥300



QM-500L

500

20~36rpm

175

7.5KW/380V

≤20

≥300



QM-1000L

1000

20~34rpm

350

11KW/380V

≤30

≥300



QM-2000L

2000

20~34rpm

700

22KW/380V

≤30

≥300



Besides the planetary ball mill machine, our factory provides all kinds of mill pots like stainless steel mill pot, zirconia mill pot, alumina mill pot, nylon mill pot, PU mill pot, tungsten mill pot, hard metal mill pot and tempered nylon mill pot etc. Further, we also provide stainless steel mill balls, zirconia mill balls, alumina mill balls, PU mill balls, steel carbon mill balls,tungsten mill balls, etc.

Light Roll Ball Mill

Suggestions for Matching Solution About Mill Jars & Materials
Light Roll Ball Mill

We can also provide all kinds of mill balls like stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, hard metal balls, silicon nitride balls, high wear resistant steel ball, manganese steel balls, nylon balls, cemented carbide, crystal glass and other special metal materials.
Light Roll Ball Mill

Suggestions for Matching Solution About Grinding Medium & Materials
Light Roll Ball Mill

Light Roll Ball Mill



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
