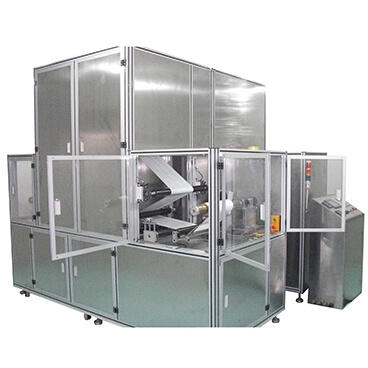

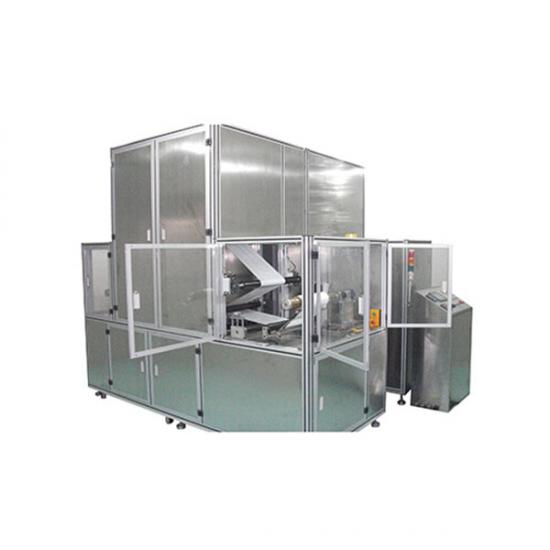

Lithium Battery Separator Soaking And Coating Equipment

Introduction

1.Applicable to lithium ion battery separator soaking and coating process

2.Air shaft retractable reel,automatic tension control.

3.Adopt steam or heating tube heating method do dry the diaphragm.

4.Rolling motor adopts imported explosion-proof motor

5.Photoelectric sensor corrects the reel double edge

6.The machine outside adopts stainless steel material

We provide a full ranges of Li ion cell making Machine.

Technical parameters

Main technical parameters	Performance
Applicable roller width	100-600mm
Roller inner diameter	Φ75mm
Machine speed	0-8 m/min
Correction accuracy	±0.2mm
Depth of parallelism	±0.2mm
Air supply	0.5-0.7MPa
Source voltage	AC220V
Power	23KW
Dimension(L*W*H)	3000*1200*2500mm
Weight	680kg

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
