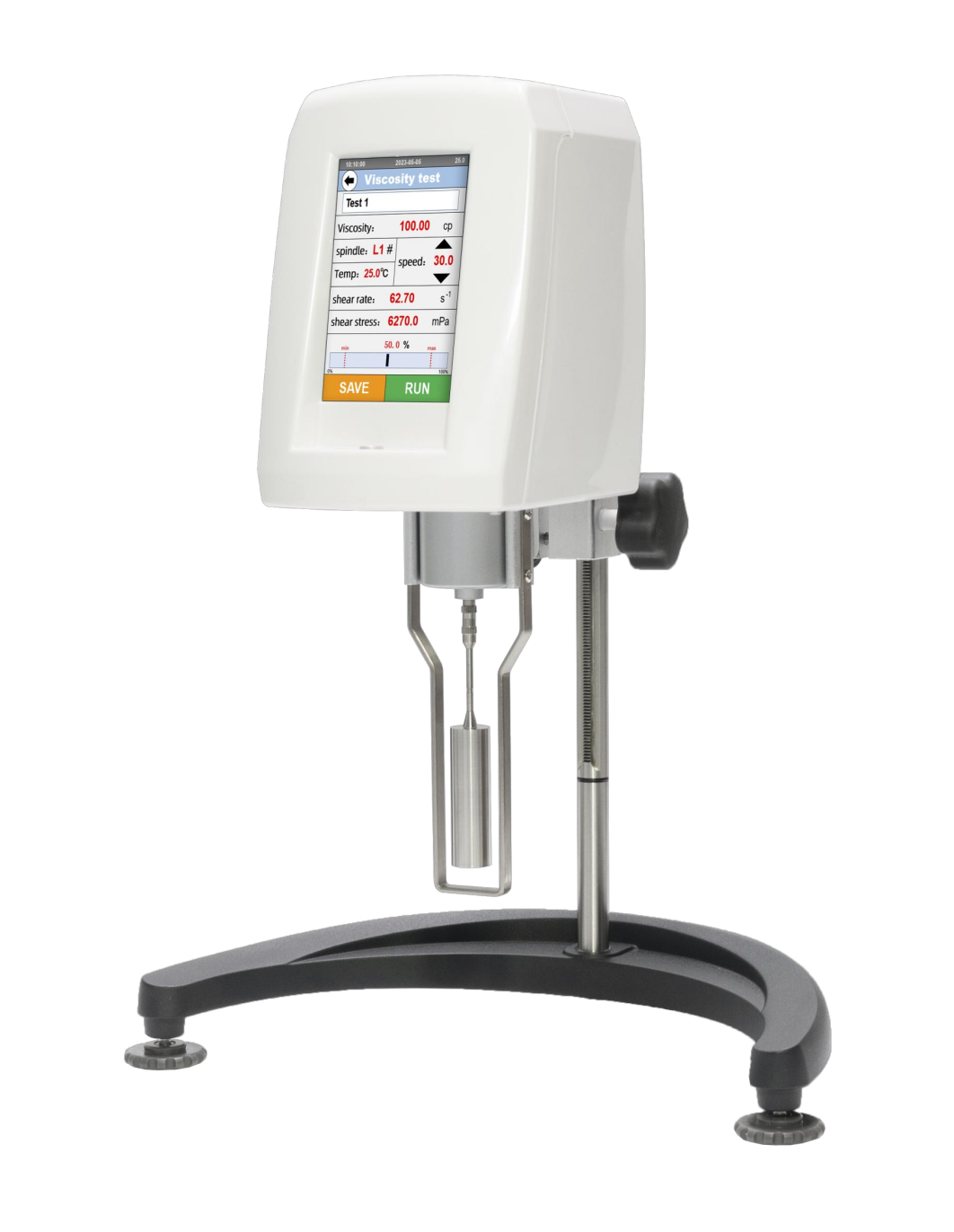

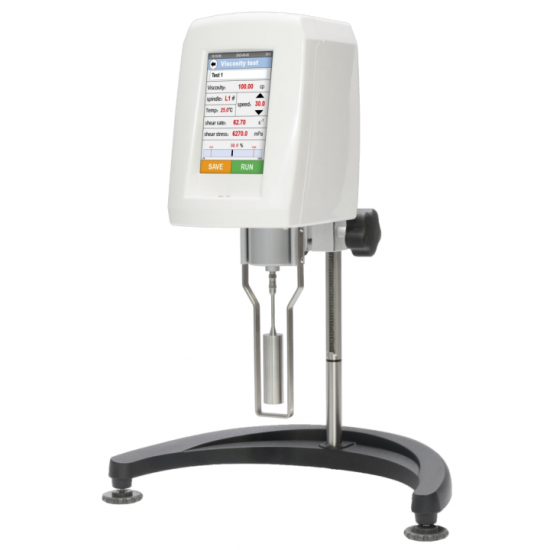

Lab Unlimited-speed Control Touchscreen Viscosity Meter with Timed Measurement

Product Introduction:

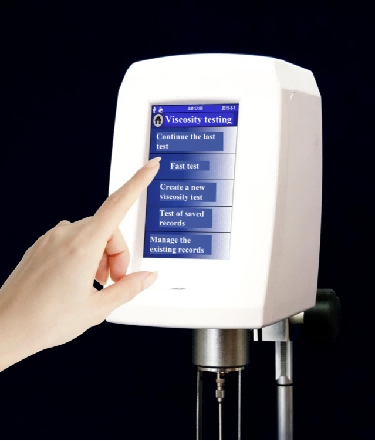

  The variable speed series rotational viscometer is seamlessly integrated with touchscreen technology, offering a stylish and modern high-tech solution for quickly, accurately and conveniently measuring viscosity. It is highly functional, with adjustable speed control, selectable adapters for ultra-low viscosity and small sample size. It has 30 built-in test programs and can save 30 sets of test data. The 5-inch large color touchscreen can comprehensively and vividly display various parameters and working conditions. It has the advantages of multiple measurement parameters, rich display content, convenient operation, clear reading, high measurement accuracy, stable speed, strong anti-interference performance, the ability to display shear rate and viscosity curves, and wide working voltage range. It can replace similar imported instruments.

Main features:

1. Utilizes ARM technology and has a built-in Linux system. The interface is simple and clear. Through the creation of test programs and data analysis, viscosity tests can be conducted quickly and conveniently.

2. Accurate viscosity measurement: Each range is automatically calibrated by the computer, with high precision and small error.

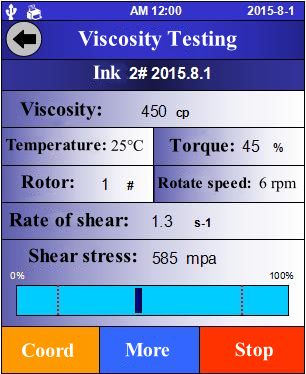

3. Rich display content: Besides viscosity (dynamic viscosity and kinematic viscosity), there are temperature, shear rate, shear stress, percentage of measurement value to full range value (graphical display), range overflow alarm, automatic scanning, maximum measurement range under the current rotor speed combination, date, time, etc. It can also display kinematic viscosity under known density, meeting the different measurement requirements of users.

4. Complete functions: Timed measurement, self-building of 30 test programs, access to 30 measurement data, real-time display of viscosity curves, printing of data and curves, etc.

5. Front-mounted level gauge: Level adjustment is intuitive and convenient.

6. Continuous speed adjustment: TMAX-LVDV-1T: 0.3 - 100 rpm, with a total of 998 speed settings.

7. Display curves of shear rate on viscosity and viscosity versus time, temperature and time.

8. Optional Pt100 temperature probe: Wide temperature measurement range from -20 to 300℃, with a measurement accuracy of 0.1℃.

9. Rich optional accessories: Viscosity meter-specific constant temperature bath, constant temperature cup, printer, standard viscosity samples, etc.

10. Chinese and English operating systems.

  Widely used in industries with medium and low viscosity such as paints, coatings, cosmetics, inks, pulp, food, oil products, starch, solvent-based adhesives, latex, biochemical products, etc.

Detailed technical parameters:

Option:

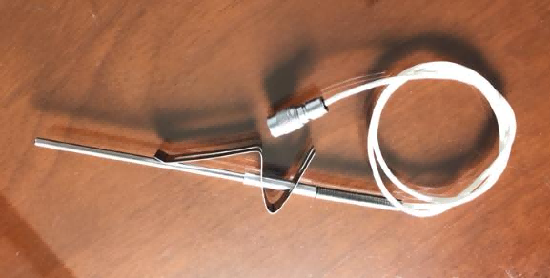

1.Temperature probe (temperature sensor)

Using Pt100 platinum resistance

Temperature measurement range: -20 - 300℃

Measurement accuracy: 0.1℃

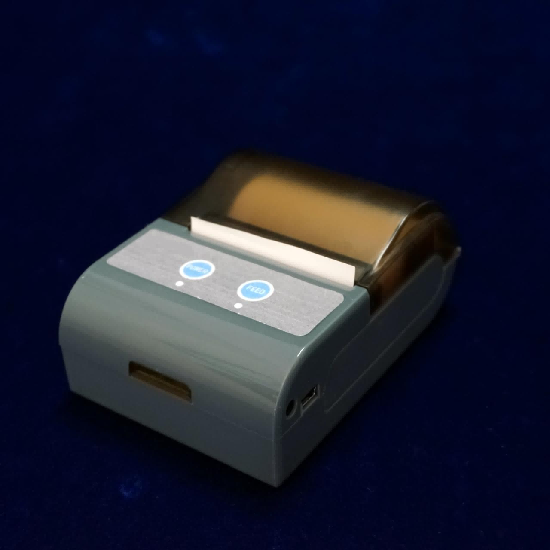

2. Miniature thermal printer

Can be directly connected to the viscometer

Print data

Printcurves

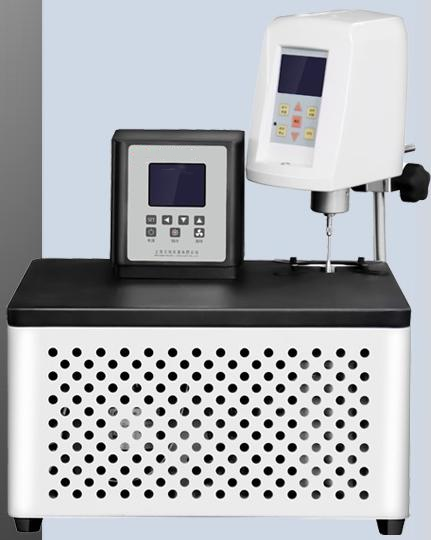

3. Special temperature control bath for viscometer

DC0506W:

Temperature control range: -5 to 100℃

Temperature control accuracy: 0.1℃
