High Viscosity Lab Automatically Scans Rotational Viscometer for Small Sample Quantities

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-SSR /SSR PLUS
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

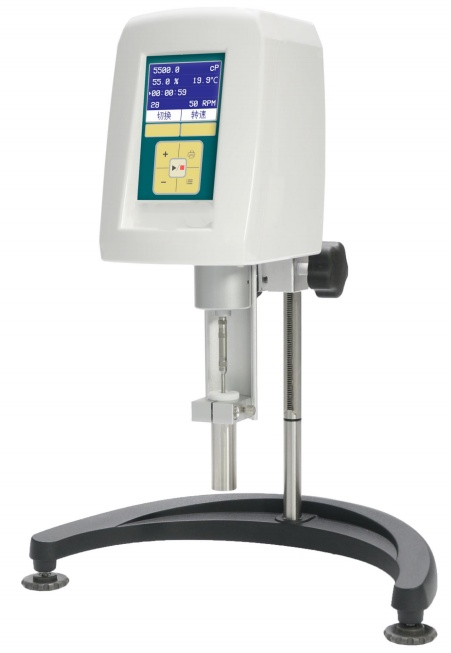

High Viscosity Lab Automatically Scans Rotational Viscometer for Small Sample Quantities

1. Accurate viscosity measurement: Each range is automatically calibrated by computer, with high precision and small error.

2. Built-in spirit level: Intuitive and convenient for level adjustment.

3. Optional Pt100 temperature probe: Wide temperature measurement range from -20 to 300℃, with a measurement accuracy of 0.1℃.

4. Optional enhanced ultra-low viscosity adapter ULR/URL PLUS.

5. Only 7-11ml of sample is required for each measurement.

6. Rich optional accessories: Constant temperature bath, printer, standard viscosity samples (standard silicone oil), etc.

7. Features automatic scanning and timed measurement functions.

8. Automatic stability indication for viscosity measurement.

9. Displays shear rate and shear stress.

10. Viscosity unit conversion (1Pa.s = 1000mPa.s) 1P=100mPa.s ; 1cP = 1mPa.s);

11. Temperature unit switch: Celsius, Fahrenheit;

12. Connect printer, computer

13. Switch between Chinese and English operating systems

The torque of the hairspring, the shape of the rotor, the speed, and the measurement range of viscosity are all the same as those of the imported similar viscosity meters. The measured viscosity data have good comparability with the imported counterparts.

The LV series viscosity meters measure low-viscosity samples, and the main samples measured include: solvent-based adhesives, latex preparations, oil, petroleum, chemical reagents, paints, coatings, cosmetics, medicines, daily chemical products, photosensitive resins, heat waxes, polymer solutions, inks, rubber solutions, fruit juices, solvents, etc.

Model number	LV-SSR
Control/Display	Press the button / View the LCD screen
Speed (r/min)	0.3 – 100 all 37 kinds 0.3、0.5、0.6、1、1.5、2、2.5、3、4、5、6、7、8、9、10、12、14、15、16、18、20、25、30、35、40、45、50、55、60、65、70、75、80、85、90、95、100RPM
Viscosity range	1 - 1,600,000 mPa.s(Below 3 requires the selection of ULR.)
Sample volume	ULR: 21ml No.18,25,31,34 Mold ：7-11ml
Measurement error	±1%(Newtonian liquid)
Repeatability error	±0.3%(Newtonian liquid)
Display shear stress/shear rate	Standard configuration
Timing function	Standard configuration
Temperature measurement function	Standard temperature probe interface (PT100 probe needs to be selected)
Automatic scanning function	Automatically scans and recommends the preferred combination of rotor and speed
Maximum measurement range	Automatically displays the viscosity range that the selected rotor and speed combination can measure
Print	Data and curves can be printed (standardly equipped with a printing interface, and a printer needs to be purchased)
Data output interface	RS232: Connect to printer (special); RS232: Connect to computer (special)
Constant temperature component	Options (including various viscosity meter-specific constant temperature baths, constant temperature cups)
Working power supply	Wide voltage operation (110V / 60Hz or 220V / 50Hz)
Dimensions of the shape	300 × 300 × 450 (mm)

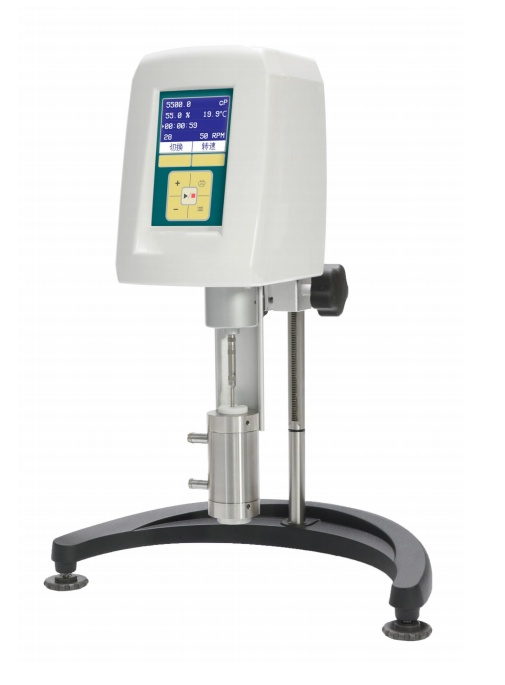

Ps：If you choose accessories of a constant-temperature circulating water jacket,the mold number is LV-SSR PLUS.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
